The Scale Engines' "Nice Numbers" Algorithm: Step Generation and Level Fallbacks in QwtScaleEngine

Abstract — Axis scales are the most inconspicuous component of a plotting library, yet the one that most affects readability: given a data interval \([x_1, x_2]\) and a tick budget \(M\), the engine must choose a "human-friendly" step size \(s\) (1–2 significant digits), align the interval bounds to integer multiples of \(s\), and lay out ticks at three levels (major/medium/minor). The three QWT7 engines are QwtLinearScaleEngine, QwtLogScaleEngine (src/core/qwt_scale_engine.cpp) and QwtDateScaleEngine (src/plot/qwt_date_scale_engine.cpp). Their step-selection arithmetic is reconstructed line by line (the \(10^{-6}\) tolerance, the integer halving loop and the fuzzy comparison), the \(\{1,2,5\}\) base set is proved unique in the sense of "decimal-dual closure" and its gap to the minimax optimum quantified (2.5 vs 2.154), the log engine's "major step \(\geq 1\) decade" clamp and its sub-decade linear fallback are dissected, and the date engine's eight-level classification fallback decision tree is traced from milliseconds to years. All conclusions are supported by a statement-by-statement Python reimplementation (a 10,000-random-interval scan plus systematic boundary intervals) and C++ cross-validation against the real QWT library (linear 2000/2000, log 405/405, date 608/608 all consistent).

Abstract — Core conclusions

  • The linear engine's step base set is \(\{1,2,5\}\times 10^k\), not 1/2/2.5/5: the integer halving loop of QwtScaleArithmetic::divideInterval (src/core/qwt_scale_engine.cpp:157) produces the chain 10→5→2→1, and floor(5/2)=2 is exactly why 2.5 is excluded; over 10,000 random intervals the measured frequencies of the three mantissas are 30.29% / 29.41% / 40.30%, within 0.7 percentage points of the log-uniform theoretical values 30.10% / 30.10% / 39.79%.
  • \(\{1,2,5\}\) is not the minimax-optimal triple: its measured worst-case step inflation ratio of 2.5 is higher than the 2.25 of the integer optimum \(\{2,4,9\}\) and the unconstrained geometric optimum \(10^{1/3}\approx 2.154\); its uniqueness lies in being the only triple of integers closed under the decimal dual \(s \mapsto 10/s\) (the full divisor set of 10 minus 10), which guarantees that a decade step (mantissa 1) halved or divided by five still lands on the ladder; steps with mantissa 2/5 can still trigger the \(0.5s\) fallback.
  • maxNumSteps is a soft constraint: under the QwtPlot pipeline (first autoScale alignment, then divideScale), 7.80% of random intervals exceed their major-interval budget (measured maximum 9 vs a budget of 8), while the path calling divideScale directly has an overrun rate of 0%.
  • The log engine's major step is clamped to \(\geq 1\) decade (src/core/qwt_scale_engine.cpp:825), and intervals spanning less than one decade are delegated wholesale to the linear engine: \([1,\sqrt{10}]\) yields the linear ticks 1, 1.5, 2, 2.5, 3; \([3,300]\) under maxMajor=8 keeps only 2 major ticks (10, 100) after alignment and clipping.
  • Measured level-fallback boundaries of the date engine (maxSteps=8): Millisecond→Second at about 7 s, →Minute at about 8 min, →Hour at about 8 h, →Day at about 8 d, →Week at about 56 d, →Month at about 224 d, →Year at about 4 a; the Month level opens only for spans beyond about 7.4 months, a 3-month span falls back to Week (2-week steps; under a Monday-start locale every major tick lands on a Monday), and an 8.5-month span is reclassified as Week in the second classification because of the 30-day/month step hint.

1. Introduction: formalizing the scale problem

1.1 Problem statement

Let the data interval be \([x_1, x_2]\) (width \(w = x_2 - x_1 > 0\)) and the tick budget be \(M\) (in QWT, maxMajorSteps; QwtPlot defaults to 8, see src/plot/qwt_plot_axis.cpp:46). The output of a scale engine is a triple: the aligned bounds \([a_1, a_2] \supseteq [x_1, x_2]\), the step size \(s\), and the three tick-level position sets (major ticks MajorTick, medium ticks MediumTick, minor ticks MinorTick; see src/core/qwt_scale_div.h:50). The optimization goal can be written informally as three conditions:

  1. Readability: \(s = m \cdot 10^k\), with a mantissa \(m\) of only 1–2 significant digits ("nice numbers");
  2. Information: the major interval count \(n = (a_2 - a_1)/s\) satisfies \(n \le M\) and comes as close to \(M\) as possible: too-sparse ticks waste axis space, too-dense ticks overlap labels;
  3. Alignment: \(a_1, a_2\) are integer multiples of \(s\), so the endpoint labels are nice numbers as well.

The three goals conflict: goal 1 confines \(s\) to a discrete ladder \(\mathcal{L}\), goal 2 wants \(s \approx w/M\), and \(w/M\) is almost never in \(\mathcal{L}\). QWT makes the same trade-off as Heckbert's classic scheme and rounds up to the ladder:

\[ s = \left\lceil \frac{w}{M} \right\rceil_{\mathcal{L}} \;=\; \min\{\, \ell \in \mathcal{L} : \ell \ge w/M \,\} \]

Rounding up (rather than to nearest) guarantees \(n \le M\) before alignment; the cost is that \(n\) can fall as low as \(M/2.5\) below \(M\) (the sawtooth curve of Section 3.4 quantifies this cost). Heckbert's original Nice Numbers for Graph Labels also gives a round-to-nearest variant for label spacing; QWT keeps only the round-up variant and hands the freedom of "rounding down" to the alignment step.

1.2 Division of labor among the three engines

Engine Source file Domain semantics Step units
QwtLinearScaleEngine src/core/qwt_scale_engine.cpp:476 decimal floating point data units
QwtLogScaleEngine src/core/qwt_scale_engine.cpp:710 positive reals, log mapping decades
QwtDateScaleEngine src/plot/qwt_date_scale_engine.cpp:630 epoch milliseconds (double) ms/s/min/h/day/week/month/year

QwtDateScaleEngine inherits from the linear engine: millisecond-scale intervals are delegated straight to the decimal arithmetic (src/plot/qwt_date_scale_engine.cpp:898); calendar semantics kick in only from seconds upward. The shared skeleton of all three is the QwtScaleEngine base class (attributes Floating/Symmetric/IncludeReference/Inverted, margins, and the tolerance arithmetic QwtScaleArithmetic).

1.3 Call chain: when the engines are invoked

QwtPlot::updateAxes() (src/plot/qwt_plot_axis.cpp:843) is the single standard entry point, triggered by every replot():

flowchart LR
    A["replot()"] --> B["QwtPlot::updateAxes<br/>qwt_plot_axis.cpp:843"]
    B --> C{"axisAutoScale?"}
    C -->|"yes"| D["engine->autoScale(maxMajor,<br/>minValue, maxValue, stepSize)"]
    C -->|"no: setAxisScale"| E["use the user-stored min/max"]
    D --> F["engine->divideScale(min, max,<br/>maxMajor, maxMinor, stepSize)"]
    E --> F
    F --> G["QwtScaleWidget::setScaleDiv<br/>major/medium/minor ticks 8/6/4 px"]

The defaults are maxMajor = 8 and maxMinor = 5 (src/plot/qwt_plot_axis.cpp:46-47); tick lengths are 8/6/4 pixels for major/medium/minor (src/plot/qwt_abstract_scale_draw.cpp:48-50). The stepSize computed by autoScale is passed back to divideScale as a hint; in the date engine this pass-back triggers a second classification (Section 5.6), the most important hidden coupling in this report.

2. The linear engine: one round-up and two alignments

2.1 Step selection: the integer halving loop of divideInterval

The core function is only 24 lines long (src/core/qwt_scale_engine.cpp:157):

\[ v = \frac{w - 10^{-6} w}{M}, \quad l = \log_{b}|v|, \quad p = \lfloor l \rfloor, \quad f = b^{\,l-p} \in [1, b) \]
\[ n = b;\quad \textbf{while}\; n > 1 \;\wedge\; f \le \lfloor n/2 \rfloor :\; n \leftarrow \lfloor n/2 \rfloor;\quad s = n \cdot b^{\,p} \]

Three details determine the entire behavior. The first: divideEps subtracts \(10^{-6} w\) up front, so the halving-loop condition includes equality (\(f \le \lfloor n/2 \rfloor\)); \(f = 1.999998\) and an exact \(f = 2.0\) give the same result, and what the tolerance truly defends against is log/pow round-trip noise. Without it, noise could push \(f\) slightly above a ladder value (say \(2.0000000000000004 > 2\)), the halving loop would stop early and the step would jump to the rung above, \(5 \cdot 10^p\). The second: n / 2 in the halving loop is unsigned integer division: for \(b=10\) the chain is \(10 \to 5 \to 2 \to 1\), and \(\lfloor 5/2 \rfloor = 2\) makes 2.5 forever impossible; this is exactly the answer to "is the base set \(\{1,2,5\}\) or \(\{1,2,2.5,5\}\)" (the header comment at qwt_scale_engine.h:156 also states \(\{1,2,5\}\cdot 10^n\)). The third: the mapping from \(f\) to the ladder is piecewise constant:

Target mantissa \(f\) Selected \(n\) Step mantissa
\(f = 1\) 1 1
\(1 < f \le 2\) 2 2
\(2 < f \le 5\) 5 5
\(5 < f < 10\) 10 1 (carry into \(10^{p+1}\))

That is, the mantissa space \([1,10)\) is cut into three segments \((1,2] \to 2\), \((2,5] \to 5\), \((5,10) \to 10\) (plus the endpoint \(f = 1 \to 1\); Figure 1b). The base parameter can be changed: for \(b=2\) the chain is \(2 \to 1\) (only 1 mantissa); for \(b=16\) it is \(16 \to 8 \to 4 \to 2 \to 1\) (4 mantissas); see experiment B3.

2.2 divideScale: alignment, tick laying, clipping

The signature of QwtLinearScaleEngine::divideScale (src/core/qwt_scale_engine.cpp:533) is (x1, x2, maxMajorSteps, maxMinorSteps, stepSize = 0): the third parameter is the major tick budget (the minor budget is the fourth), not a minimum step size; a non-zero stepSize is used directly as the given step (its absolute value is taken). The flow:

  1. Normalize the interval; a width beyond the double limit reports overflow and returns an empty division, and a width \(\le 0\) returns an empty division;
  2. For stepSize == 0, compute per Section 2.1 (maxMajorSteps is first clamped to \(\ge 1\));
  3. align() (:679) expands the bounds outward to integer multiples of the step: floorEps/ceilEps carry a \(10^{-6}\) relative tolerance, plus a \(10^{-12}\) absolute tolerance protecting endpoints "already on the grid" from being pushed off by floating-point error;
  4. buildMajorTicks (:611) lays \(n = \mathrm{round}(w'/s)+1\) major ticks over the aligned interval, hard-capped at 10000 (:614, preventing memory blowup when the user supplies too small a step);
  5. buildMinorTicks (:636), see Section 2.3;
  6. strip() uses fuzzy comparison (tolerance \(10^{-6} w\), qwt_math.h:190) to delete ticks outside the original interval; buildTicks then pins ticks fuzzily equal to 0 (tolerance \(10^{-6} s\)) to exactly 0.0;
  7. If \(x_1 > x_2\), reverse the whole division.

Note — The order of alignment and clipping

Major ticks are generated over the aligned interval \([a_1, a_2]\) and then clipped back to \([x_1, x_2]\), so the bounds of a QwtScaleDiv are always the user interval while the ticks are a subset of the grid. Section 6.2 shows how this order makes "major tick count \(\le M\)" hold identically on the direct-call path yet be violable on the pipeline path.

2.3 Minor ticks: qwtStepSize and the 0.5x fallback

The minor step comes from the static function qwtStepSize (:54, whose source comment self-deprecatingly says "this version often doesn't find the best ticks"): it runs divideInterval once more on \((s, \text{maxMinorSteps})\), and if \((\lceil s/s_{min}\rceil) \cdot s_{min}\) fuzzily exceeds \(s\) (the minor ticks do not fit), it falls back to \(0.5 s\). Each major interval receives \(\lceil s/s_{min}\rceil - 1\) minor ticks; when that count is odd, the exact middle one is promoted to a medium tick. The canonical structure (single interval, no clipping; experiment A4):

Major step mantissa maxMinor Minor step Per interval (minor, medium) Positions (fraction of the interval)
1 2–4 0.5 (0, 1) 0.5 medium
1 5–8 0.2 (4, 0) 0.2, 0.4, 0.6, 0.8
2 2–3 1 (0, 1) 0.5 medium
2 4–8 0.5 (2, 1) 0.25 minor, 0.5 medium, 0.75 minor
5 2 5 (0, 0) no minor ticks
5 3–4 2.5 (fallback) (0, 1) 0.5 medium
5 5–8 1 (4, 0) 0.2, 0.4, 0.6, 0.8

Rows three through six directly exhibit the self-consistency of the \(\{1,2,5\}\) ladder: for a mantissa-5 step with maxMinor=3 or 4, \(5/2 = 2.5\) is off the ladder, the "does not fit" check triggers the \(0.5s\) fallback, and the minor ticks degenerate into a single midpoint tick. Over 10,000 random intervals this fallback fires at exactly 40.30% (maxMinor=3 and 4), equal to the occurrence frequency of mantissa 5; under QWT's default maxMinor=5 the firing rate is 0% (experiment A5).

The #else branch below this static function in the source still keeps the old implementation (:74-99): it enumerates step counts downward from maxSteps and matches the \(n \cdot b^p\) form with qFuzzyCompare. The comment "this version often doesn't find the best ticks: f.e for 15: 5, 10" sits immediately after #if 1, directly above the current implementation: "this version" refers to the current version (upstream's self-deprecation about the live heuristic), not the old implementation under #else. Keeping this dead code is a Qwt upstream tradition: the historical failure cases of the minor-tick heuristic are more honest than documentation.

2.4 autoScale: margins, symmetry and degenerate intervals

autoScale (:493) first subtracts/adds lowerMargin/upperMargin (data units in the linear engine), then applies symmetrize(reference()) and extend(reference()) as needed; for a width of 0, buildInterval fabricates the interval \([v - 0.5|v|, v + 0.5|v|]\) (\([-0.5, 0.5]\) when \(v=0\)); it then computes the step and aligns unless Floating is set. A single-point data series therefore gets an axis whose width is 100% of the original value: the date engine inherits this behavior, and the consequences appear in the failure list of Section 7.

3. Number-theoretic properties of the step base

3.1 The right question about optimality

Extend a mantissa set \(S = \{s_1 < s_2 < \cdots < s_k\} \subset [1, 10)\) periodically into the ladder \(\mathcal{L} = S \cdot 10^{\mathbb{Z}}\). The worst-case inflation ratio of rounding up is the maximum of the ratios between adjacent rungs (including the wrap-around across decades):

\[ r_{\max}(S) = \max\left( \frac{s_2}{s_1}, \frac{s_3}{s_2}, \ldots, \frac{s_k}{s_{k-1}}, \frac{10\, s_1}{s_k} \right) \]

Proposition (geometric lower bound) For any \(k\)-element set, \(r_{\max}(S) \ge 10^{1/k}\), with equality if and only if \(S\) is the geometric progression \(\{10^{i/k}\}\). Proof: the product of the \(k\) ratios (including the wrap-around) is exactly \(\frac{s_2}{s_1}\cdots\frac{10 s_1}{s_k} = 10\), so the maximum cannot fall below the geometric mean \(10^{1/k}\); the geometric progression equalizes all ratios and attains equality. \(\square\)

Hence the unconstrained optimum is \(10^{1/3} = 2.154435\) for \(k=3\) and \(10^{1/4} = 1.778279\) for \(k=4\) (values printed by experiment B1).

3.2 Measured: {1,2,5} does not sit on the optimum

Exhaustively computing \(r_{\max}\) over all 84 three-element subsets of \(\{1,\ldots,9\}\) (experiment B1): the minimum is 2.25, held exclusively by \(\{2,4,9\}\); the 2.5 of \(\{1,2,5\}\) ties for the second tier with \(\{1,2,4\}\), \(\{2,4,8\}\), \(\{2,5,8\}\) and \(\{2,5,9\}\). Among four-element sets (including the half steps 1.5/2.5) the minimum is 2.0, shared by nineteen sets (including \(\{1,2,2.5,5\}\), \(\{1,2,4,5\}\), \(\{1,2,4,8\}\), \(\{1.5,3,6,9\}\); the full list is in the experiment B1 output). QWT's \(\{1,2,5\}\) is neither the minimax-optimal triple nor the "optimal integer triple": it pays 16% more worst-case step inflation than the unconstrained optimum (2.5/2.154).

3.3 The real uniqueness of {1,2,5}: decimal-dual closure

Define the dual map \(d(s) = \mathrm{mantissa}(10/s)\) (pulling the mantissa of \(10/s\) back into \([1,10)\)). Exhaustive verification (experiment B2): among the three-element subsets of \(\{1,\ldots,9\}\), exactly one satisfies \(d(S) = S\), namely \(\{1,2,5\}\): it is precisely the full divisor set of 10, \(\{1,2,5,10\}\), minus 10 (that is, the proper divisors of 10). This closure property has three practical consequences:

  1. Representable minor ticks: halving a decade step (mantissa 1) or dividing it by five still yields nice numbers (\(10^k/2 = 5\cdot10^{k-1}\), \(10^k/5 = 2\cdot10^{k-1}\), i.e. \(10/2 = 5\), \(10/5 = 2\)); steps with mantissa 2/5 are not closed under halving or fifth division (\(5/2 = 2.5\) and \(2/5 = 0.4\) are both off the ladder) and can still trigger the \(0.5s\) fallback of Section 2.3. For \(\{2,4,9\}\), neither \(10/9 = 1.\overline{1}\) nor \(10/4 = 2.5\) is on the ladder, so minor ticks can only be forced through the \(0.5s\) fallback.
  2. Fixed points of the halving loop: the chain generated by the loop \(n \leftarrow \lfloor n/2 \rfloor\) of Section 2.1 starting from \(b\) is exactly the divisor chain of \(b\) (\(b=10\): 10,5,2,1; \(b=16\): 16,8,4,2,1; \(b=12\): 12,6,3,1; experiment B3), and dual closure guarantees every step along the chain remains a decimal nice number.
  3. Closed label arithmetic: adding, subtracting, halving and taking a fifth of tick values are exactly representable in decimal floating point, keeping labels free of tails like 0.30000000000000004.

\(\{1,2,5\}\) is the unique solution under the "readability + subdivisibility" constraint; minimax optimality was never part of its objective function. Figure 1 places the two metrics side by side: the left panel shows \(r_{\max}\) for each candidate set, the right panel the three-segment mantissa partition.

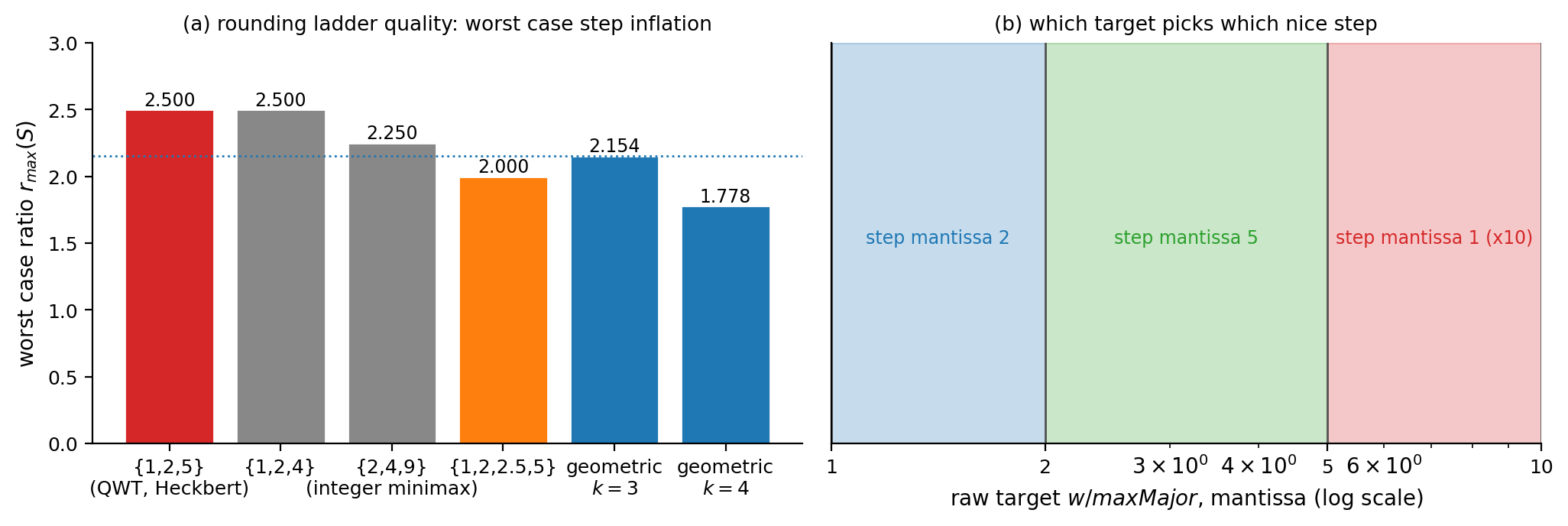

Worst-case inflation ratios and mantissa partitions of the candidate ladder sets

3.4 The tick-density sawtooth: visible consequences of the 2.5x inflation

Fix \(x_1 = 0\) and \(M = 8\) and sweep the width \(w\) over \([1, 10^4]\): the major interval count \(n(w) = w / s(w)\) traces a sawtooth. Inside each ladder cell \(n\) climbs linearly from \(8/r\) back to 8 (\(r\) being that cell's inflation ratio), dropping at every cell crossing. Measured \(n \in [3.2065, 7.9989]\), matching the theoretical bound \([8/2.5, 8] = [3.2, 8]\) (experiment B5). The tick count of one and the same axis therefore oscillates between 3.2 and 8 while zooming; the "ticks alternately sparse and dense while zooming" that users perceive is this sawtooth, not a bug. Switching to the four-element set \(\{1,2,2.5,5\}\) compresses the amplitude to \([4, 8]\), at the cost of half-integer labels such as 2.5.

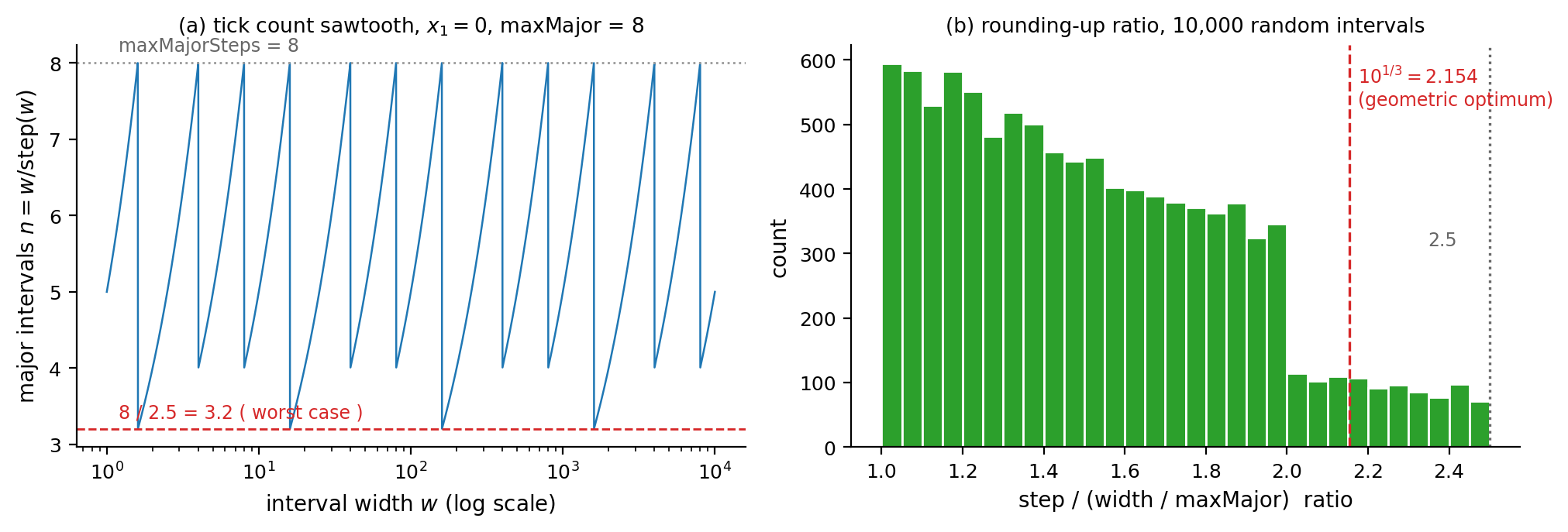

The tick-count sawtooth and the distribution of step inflation ratios

The distribution of the inflation ratio \(s/(w/M)\) (Figure 2b, 10,000 random intervals) measures min 1.000029, max 2.499898, mean 1.522731: the upper bound stays strictly below 2.5 (the \(\varepsilon\) deduction makes the boundary unattainable), and the mean of 1.52 says "on average only 66% of the budget is used". The measured mantissa frequencies 30.29% / 29.41% / 40.30% agree with the log-uniform theoretical values \(\log_{10}2 = 30.10\%\), \(\log_{10}2 = 30.10\%\), \(\log_{10}2.5 = 39.79\%\); this is a Benford-type law: the target mantissa is log-uniform over \([1,10)\), the interval \((2,5]\) carries the largest probability, hence mantissa-5 steps are the most common.

4. The log engine: a second arithmetic in units of decades

4.1 Domain clamping and two fallbacks

QwtLogScaleEngine installs a QwtLogTransform at construction; all steps and margins are in units of decades (header warning, qwt_scale_engine.h:190). divideScale (:798) first does two things:

  1. Clamp the interval to \([10^{-150}, 10^{150}]\) (QwtLogTransform::LogMin/LogMax, src/core/qwt_transform.cpp:31-34); a non-positive lower bound is silently raised to \(10^{-150}\);
  2. If \(x_2/x_1 < b\) (less than one decade), delegate to the linear engine wholesale (:811-816): decade ticks on a narrow interval of a log axis are meaningless, so linear ticks are produced directly.

The major step (in decades) from divideInterval(log_b w, M) is clamped immediately: if (stepSize < 1.0) stepSize = 1.0 (:825), so major ticks are at least one decade apart. Combined with the ladder of Section 2.1, this clamp has a clean corollary: major ticks on a log axis always land on integer powers of \(b\) (alignment happens in log space, and a step \(\ge 1\) guarantees integer log bounds).

4.2 Two mechanisms for major and minor ticks

Major ticks are equidistant in log space (:878): \(\text{tick}_i = \exp(\ln a_1 + i \cdot \Delta)\), \(\Delta = (\ln a_2 - \ln a_1)/(n-1)\). Minor ticks split into two mechanisms (:911):

  • Single-decade mechanism (step < 1.1, i.e. step is exactly 1): the minor step \(= \mathrm{divideInterval}(1, \text{maxMinor}+1)\) (in decades), \(numSteps = \mathrm{round}(1/s_{min})\); if \(s = b/numSteps \ge 1\), minor ticks take the geometric positions \(v \cdot j s\). QWT's default maxMinor=5 gives \(s_{min}=0.2\), \(numSteps=5\), \(s=2\), i.e. four minor ticks 2, 4, 6, 8 within each decade; the classic full 2–9 graduation appears only for \(9 \le\) maxMinor \(\le 18\); for maxMinor \(\ge 19\), \(s < 1\) and the ticks degenerate into value-equidistant minor ticks (visually uneven on a log axis; experiment C2 prints the 18 equidistant positions and the medium tick at 5.5).
  • Multi-decade mechanism (step \ge 1.1): the minor step is clamped to \(\ge 1\) decade and the minor factor is \(\max(b^{s_{min}}, b)\), so minor ticks are at least one decade apart; with step=2 and maxMinor=5 there is exactly 1 minor tick between every two major ticks (1 decade apart) and no medium tick (experiment C3).

The full scan of the single-decade mechanism (experiment C2; major step 1 decade, interval \([1,1000]\)):

maxMinor Minor step (decades) numSteps \(s = 10/numSteps\) Mechanism Minor ticks per decade Medium tick
0 — — — no minor ticks — —
1–3 0.5 2 5 geometric 5 —
4–8 0.2 5 2 geometric 2, 4, 6, 8 —
9–18 0.1 10 1 geometric 2, 3, …, 9 —
19–30 0.05 20 0.5 equidistant 1.45, 1.9, …, 9.55 (18 of them) 5.5

The last row is the hidden trap: numSteps > 10 makes \(s < 1\), and the code switches to the "value-equidistant" branch \(v + j v (b-1)/numSteps\), where minor ticks are evenly spaced in value, squeezed toward the high end of the decade on the log axis, with the medium tick at the 5.5 multiple. To get the textbook 2–9 graduation on a log axis, maxMinor must fall in \(9 \le \text{maxMinor} \le 18\); \(\ge 19\) switches to the equidistant branch.

4.3 Boundary behavior: three counterintuitive cases

Interval maxMajor/maxMinor Result Cause
\([1, 1000]\) 8/5 4 major ticks 1, 10, 100, 1000; 4 minor ticks per decade divideInterval(3,8)=0.5 clamped to 1 decade
\([1, \sqrt{10}]\) 8/5 linear fallback: major ticks 1, 1.5, 2, 2.5, 3 ratio 3.16 < 10
\([3, 300]\) 8/5 only 2 major ticks left 10, 100; 8 minor ticks log-aligned to \([10^0, 10^3]\), then stripped back to \([3,300]\)
\([10^{-6}, 10^{6}]\) 8/5 7 major ticks (2-decade spacing), 6 minor ticks 12 decades / 8 → the ladder picks 2
\([0, 1000]\) 8/5 9 major ticks, from \(10^{-160}\) to \(1\) lower bound clamped to \(10^{-150}\), then aligned and expanded by one more rung

Row three deserves the most caution: with 2 decades of log width and a budget of 8, 0.5-decade major ticks would have been possible, but the clamp raises the step to 1 decade, alignment expands the interval to 3 decades, and strip cuts both ends — the user sees "a budget of 8 drawing only 2 labels". Row five shows the clamp does not recurse: the aligned lower bound \(10^{-160}\) lies below LogMin, yet strip's fuzzy tolerance (\(10^{-6} \times\) interval width \(\approx 10^{-3}\)) judges every tiny tick as "inside the interval", so a physically meaningless label like \(10^{-160}\) appears on the axis.

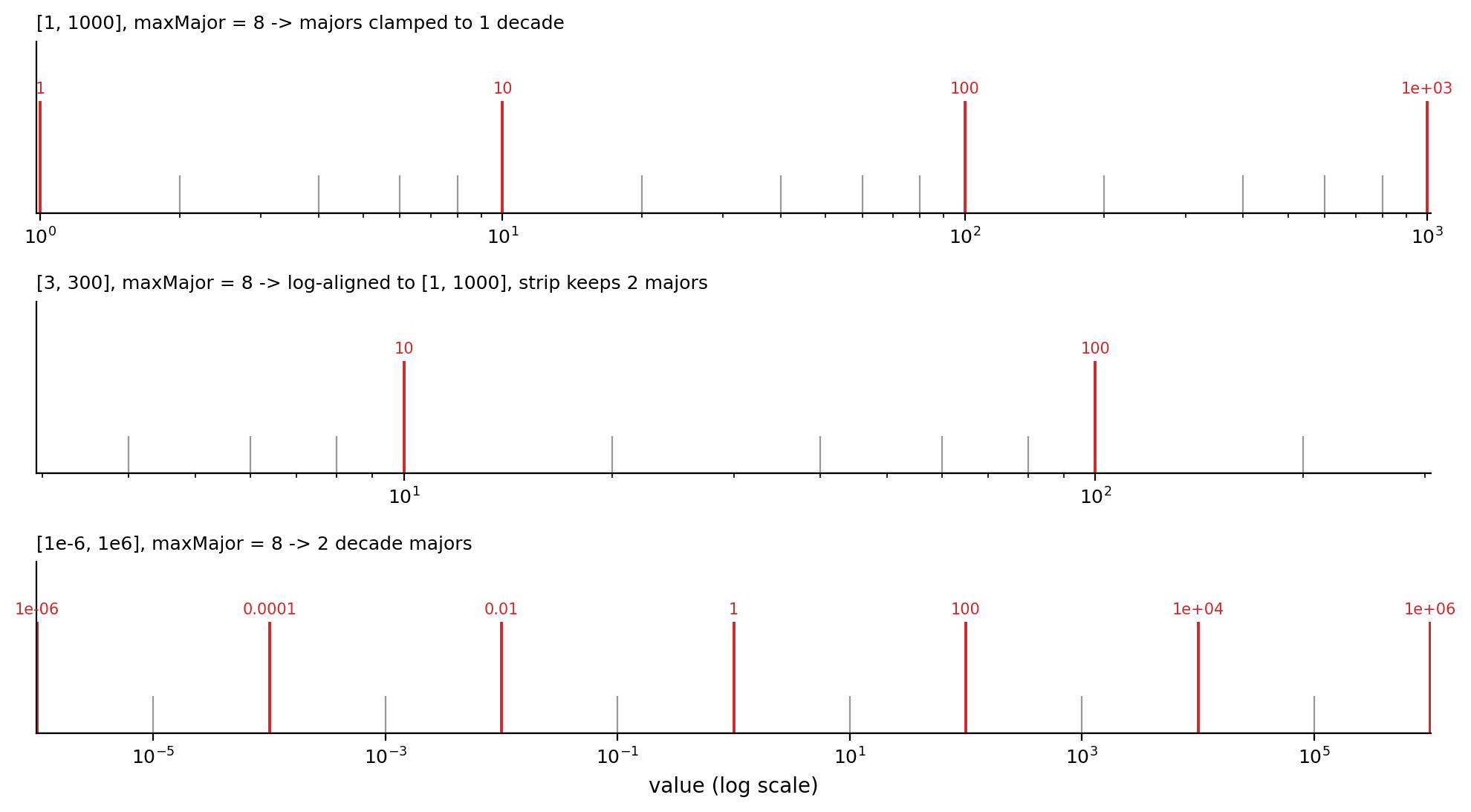

Tick structures of the log engine for three interval regimes

5. The date engine: eight-level classification and level fallbacks

5.1 Data model and approximate constants

The value of a date axis is a double counting "milliseconds since the epoch" (src/core/qwt_date.h:41). QwtDate::IntervalType has eight levels: Millisecond, Second, Minute, Hour, Day, Week, Month, Year. Among the nominal millisecond counts of each level (qwt_date_scale_engine.cpp:38), Month = 30 days and Year = 365 days are approximate constants, used only to convert "a step in type units" back into a millisecond hint; the real tick positions are all generated by QDateTime calendar arithmetic (addSecs/addMonths/addYears), so month/year ticks are inherently uneven.

5.2 The classification cascade: the intervalType decision tree

intervalType(minDate, maxDate, maxSteps) (:753) probes top-down and returns at the first hit:

flowchart TD
    A["input minDate, maxDate, maxSteps"] --> B{"(jdMax - jdMin)/365 > maxSteps?"}
    B -->|"yes"| Y["Year"]
    B -->|"no"| C{"months(rounded) > 6*maxSteps?"}
    C -->|"yes"| Y
    C -->|"no"| D{"weeks > maxWeeks and<br/>days > 28*maxSteps?"}
    D -->|"yes"| MO["Month"]
    D -->|"no"| E{"days > 7*maxSteps?"}
    E -->|"yes"| W["Week"]
    E -->|"no"| F{"hours > 24*maxSteps?"}
    F -->|"yes"| DA["Day"]
    F -->|"no"| G{"seconds >= 3600*maxSteps?"}
    G -->|"yes"| H["Hour"]
    G -->|"no"| I{"seconds >= 60*maxSteps?"}
    I -->|"yes"| MI["Minute"]
    I -->|"no"| J{"seconds >= maxSteps?"}
    J -->|"yes"| S["Second"]
    J -->|"no"| MS["Millisecond"]

Here the conjunction of weeks > maxWeeks (default maxWeeks = 4, :610) and days > 28·maxSteps is the sole entrance to the Month level: when the span does not exceed maxWeeks weeks, or does not exceed 28·maxSteps days, Month is unreachable. Measured classification boundaries (maxSteps=8, experiment D5):

Fallback edge Span location (within scan resolution) Nominal threshold
Millisecond → Second 6785–7174 ms 8 s
Second → Minute 4.727e5–4.998e5 ms 8 min
Minute → Hour 2.785e7–2.945e7 ms 8 h
Hour → Day 6.716e8–7.101e8 ms 8 d
Day → Week 54.87–58.02 d 56 d
Week → Month 221.6–234.3 d 224 d
Month → Year 1399–1479 d 48 months

The "rounded" width means the endpoints are first floored/ceiled to that level before the width is measured (qwtRoundedIntervalWidth), so measured boundaries sit slightly earlier or later than the nominal thresholds by one rounding unit.

5.3 The step ladder of each level

qwtDivideScale (:168) looks up an integer ladder table by type (after rounding up to \(\lceil w/M \rceil\), it takes the first table value not smaller than it):

Type Ladder
Second / Minute 1, 2, 5, 10, 15, 20, 30, 60
Hour 1, 2, 3, 4, 6, 12, 24
Day for \(v \le 5\) take \(\lceil v \rceil\), otherwise \(\lceil v/7 \rceil \cdot 7\) (jump to a multiple of weeks)
Week 1, 2, 4, 8, 12, 26, 52
Month 1, 2, 3, 4, 6, 12
Year / Millisecond reuse the decimal ladder divideInterval(w, M, 10)

The function also opens with a prefix rule: for non-Day types with \(M < w \le 2M\), return 2 directly. Exhausting all 6 types × widths 1–400 × budgets 1–12, a total of 28,800 combinations (experiment B4), the difference between this rule and the table-lookup results is 0, because every table contains 2; the prefix rule is a purely defensive early exit that changes no output.

5.4 Alignment: every level has its own "zero point"

alignDate (:966) deliberately uses different alignment references: second/minute/hour align to the start of a whole minute/hour/day respectively; Day aligns to multiples of the "day of year" (with the start of the year as zero; the comment explains this keeps major ticks from jumping while panning); Week aligns to dateOfWeek0(year, week0Type) — ISO 8601 FirstThursday or the American FirstDay; Month aligns to January; Year aligns to January 1 and skips the nonexistent year 0 AD. dateOfWeek0 (src/core/qwt_date.cpp:556) additionally depends on QLocale().firstDayOfWeek() for the starting day of the week. Measured (experiment D6, FirstThursday + Monday start): week0(2021) = 2021-01-04, week0(2023) = 2023-01-02, week0(2024) = 2024-01-01, week0(2025) = 2024-12-30: week 1 of 2025 starts on December 30 of the previous year, so the zero point of Week-type ticks can fall outside the year of the interval.

5.5 Tick generation: three loops

Once the classification and step are fixed, buildScaleDiv (:917) floors/ceils the endpoints to type boundaries and dispatches:

  • qwtDivideToSeconds (:381, types ≤ Week): iterates major ticks with addSecs(step·s); minor ticks are laid with addMSecs, and for an even graduation the exact middle one is promoted to a medium tick (the source carries an additional i != 1 exclusion: when numMinorSteps = 2 the middle position is i = 1, which is excluded, so there is no medium tick). DST correction is enabled only when the timeSpec is the system time zone and the type is above Hour (or Hour with a step > 1): major tick values get the UTC offset difference added, and for "the skipped hour" qwtDstTicks (:354) inserts an extra set of minor ticks, keeping the tick sequence from going out of step like 0, 2, 3, 5. It never triggers in UTC or offset-from-UTC modes.
  • qwtDivideToMonths (:474): iterates with addMonths; for a 1-month step, minor ticks are laid by day (maxMinor ≥ 30 → every day, ≥ 6 → every 5 days, ≥ 3 → every 10 days, otherwise every 15 days), and the "promote the 15th to a medium tick" rule holds only for minStepDays ∈ {1, 5} (i.e. maxMinor ≥ 6) — a 10-day step sequence never passes the 15th, and the 15-day step is explicitly excluded by the source (days == 15 && minStepDays != 15); for steps > 1 month, minor ticks are laid by month (the Month branch of qwtDivideMajorStep rejects fractional months; there is no \(0.5s\) fallback).
  • qwtDivideToYears (:541): iterates with addYears, including the correction that skips year 0 for BC dates; minor ticks convert to year/month offsets with qRound(i·minStep); this qRound is the source of one failure mode in Section 7.

5.6 The hint pass-back triggers a second classification

When divideScale (:869) receives a non-zero stepSize hint, it re-estimates the budget: maxMajorSteps = ceil((max-min)/stepSize). Because Month/Year hints use the 30/365-day approximations, the re-estimated budget can exceed the user's budget and thereby change the classification. Measured case (the fifth example of experiment D1): span 2024-01-15 → 2024-09-15 (8.5 months); autoScale classifies it as Month with a 1-month step, expands the bounds to [01-01, 10-01], and the hint = 30 days = 2.592e9 ms; divideScale re-estimates maxMajor = ceil(274/30) = 10 from the hint, the Month threshold becomes \(28 \times 10 = 280 > 274\) days, which fails, the classification is re-judged as Week, and the final rendering shows 10 major ticks spaced 28 days apart (01-01, 01-29, 02-26, …, 09-09) instead of month ticks. Had the hint been derived from a 31-day calendar month, the re-estimated budget would be ceil(274/31) = 9, the threshold 252 < 274, and the Month classification would survive - the rounding of the month-length approximation flips the output type outright.

5.7 The week start is a function of the runtime locale

QwtDate::floor/ceil/dateOfWeek0 all read QLocale().firstDayOfWeek(). The major ticks of the same 3-month span (2024-01-15 → 04-15, Week type, 2-week step) under two locales (experiments D2/D2b):

locale firstDayOfWeek Major ticks
en-GB (ISO convention) Monday 01-15, 01-29, 02-12, 02-26, 03-11, 03-25, 04-08, 04-22
zh-CN (CLDR) Sunday 01-14, 01-28, 02-11, 02-25, 03-10, 03-24, 04-07, 04-21

The whole tick set shifts by one day. In cross-platform/cross-language deployments this is the first suspect when a date axis "looks misaligned".

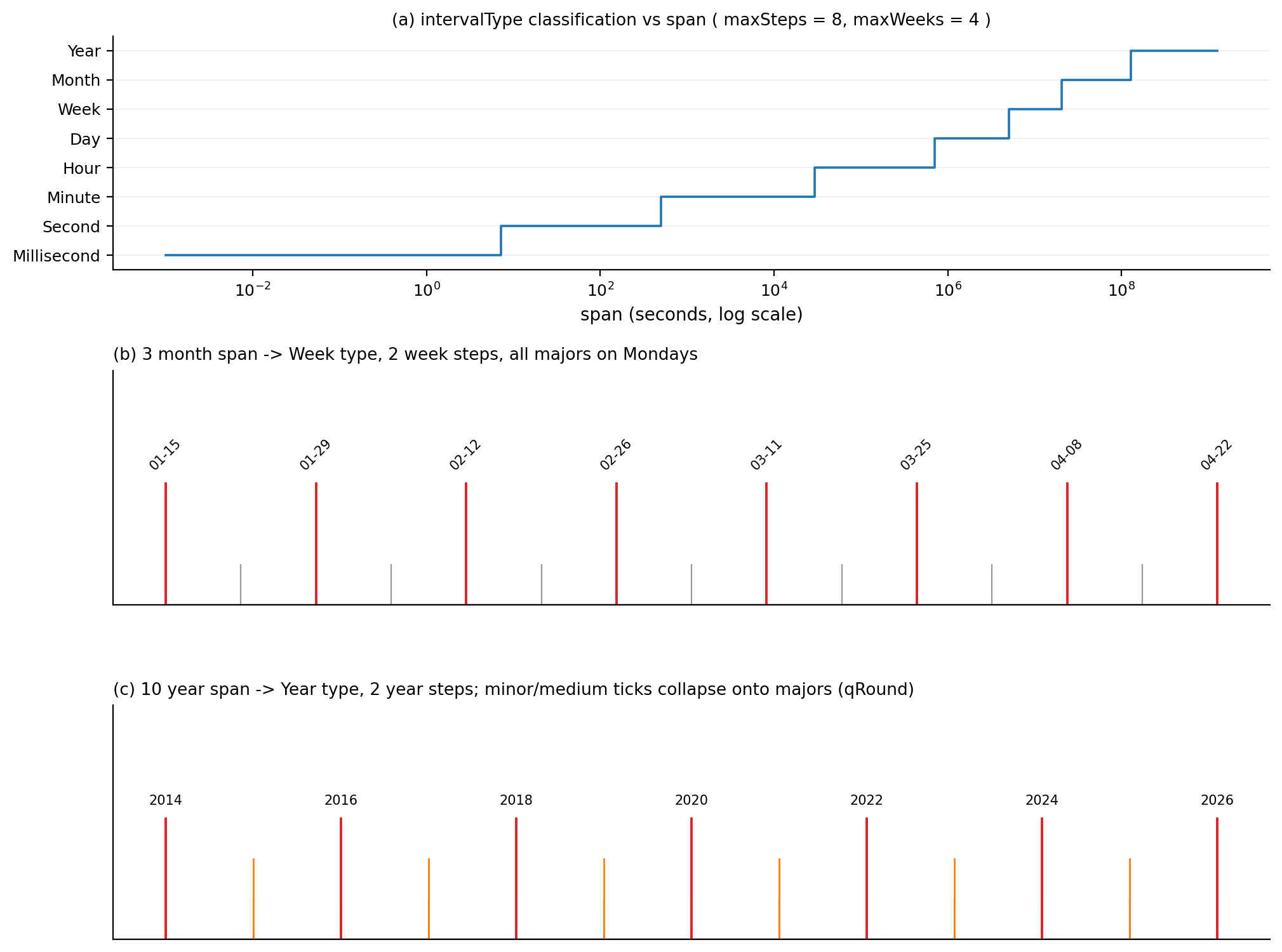

Classification levels of the date engine and tick timelines of two scenarios

6. Experiments

6.1 Design

The experiment script docs/assets/algorithms/scaleengine_experiment.py (Python 3.11 + numpy + matplotlib, Agg backend, seed 0x5CA1E) is a statement-by-statement port of the three engines: the same \(10^{-6}\) tolerance, the same integer halving and truncation semantics (static_cast<int> simulated with truncation toward zero), the same floating-point accumulation order (minor ticks recurse with val += minStep instead of multiplication); the date part reproduces the calendar arithmetic of QDateTime with datetime (including the pure date-difference semantics of daysTo and the day clamping of addMonths). All raw numbers are printed to stdout; the four figures are generated by the same script.

The cross-validation harness docs/assets/algorithms/scaleengine_check.cpp links against the prebuilt Release libraries (qwtcore.lib + qwtplot.lib from build-release/lib, Qt 5.15.16 msvc2019_64), reads case files, and prints the autoScale result together with the major/minor/medium tick counts and the first and last major tick values of divideScale; the Python side compares case by case in --cpp-check mode (correctness comparison only, no timing of any kind). The harness forces QLocale(en-GB) to pin the week start.

Porting fidelity is the lifeline of this experiment suite; the semantics that are easy to get wrong are declared here: QDateTime::daysTo is a pure calendar date difference (time differences below one day truncate to 0); addMonths/addYears clamp the day for February 29/30; qwtAlignValue and static_cast<int> uniformly truncate toward zero (negative week numbers occur at the start of a year); minor ticks accumulate recursively with val += minStep rather than the multiplication min + k·minStep, to reproduce the same floating-point error trajectory; the tolerance scale of strip/contains is the interval width, not the step. Any "taken-for-granted" shortcut would be exposed by the comparison in Section 6.6. The coverage exclusions must be declared as well: DST correction, BC/year-0 alignment and the double-overflow protection of buildInterval are outside the scope of the port and the cross-validation (the harness runs the date engine entirely in UTC); the relevant passages (the DST branch of Section 5.5 and item 11 of Section 7) are source-level analysis.

6.2 Linear engine scan (N = 10,000, maxMajor = 8, maxMinor = 5)

Interval generation: \(x_1 \sim U(-10^3, 10^3)\), \(w = 10^{U(-3,6)}\), covering zero-crossing and multi-order-of-magnitude cases.

Metric Measured
Step mantissa frequency 1 / 2 / 5 3029 (30.29%) / 2941 (29.41%) / 4030 (40.30%), others 0
Log-uniform theoretical frequency 30.10% / 30.10% / 39.79%
Inflation ratio min / max / mean 1.000029 / 2.499898 / 1.522731
Direct divideScale major intervals mean 4.547, max 7, overruns 0 (0.00%)
Pipeline (autoScale+divideScale) major intervals mean 6.547, max 9, overruns 780 (7.80%)
Minor tick fallback rate (maxMinor=2/3/4/5/8) 0% / 40.30% / 40.30% / 0% / 0%

Every overrun on the pipeline path is exactly +1 (9 vs 8): autoScale alignment can widen the interval by up to \(2s\), and divideScale no longer shrinks it once handed aligned bounds. The direct path's max of 7 rather than 8 also has an explanation: random endpoints almost never land on grid points simultaneously, and strip eats boundary ticks. The boundary interval family \([1, 10^k]\), \([0, 10^k]\) (experiment A6) yields another detail: for \(k \ge 7\) the first major tick of \([1, 10^k]\) is 0, because strip's fuzzy tolerance \(10^{-6} w \ge 10\) judges the out-of-interval 0 as "inside the interval".

6.3 Number theory and the sawtooth

The exhaustive-search and sawtooth numbers are in Sections 3.2–3.4: integer-triple minimax = 2.25 ({2,4,9}), {1,2,5} = 2.5, four-element optimum 2.0, geometric bounds 2.154435 / 1.778279; the unique dual-closed integer triple is {1,2,5}; sawtooth \(n \in [3.2065, 7.9989]\); prefix-rule redundancy 0 differences over 28,800 combinations.

6.4 Log engine cases

The numbers are in the Section 4.3 table; the supplementary minor-tick mechanism scan (experiment C2, major step 1 decade): maxMinor 1–3 → 1 minor tick per decade (at the 5 multiple); 4–8 → 2, 4, 6, 8; 9–18 → full 2–9 graduation; 19–30 → 18 value-equidistant minor ticks + a medium tick at the 5.5 multiple (visually uneven on a log axis).

6.5 Date engine scenarios (UTC, maxMajor = 8, maxMinor = 5, full pipeline)

Scenario autoScale type Aligned bounds divideScale type/step Major ticks Minor/medium
100 ms Millisecond unchanged Millisecond / 20 ms 6 (every 20 ms) 10 / 5
1 day Hour unchanged Hour / 3 h 9 (00,03,…,24) 16 / 0
3 months Week 01-15 → 04-22 Week / 2 weeks 8 (all Mondays under a Monday-start locale) 7 / 0
10 years Year 2014-01-01 → 2026-01-01 Year / 2 years 7 (even years 2014…2026) 12 / 6
8.5 months Month 01-01 → 10-01 Week / 4 weeks 10 (28 days apart) 20 / 10

The 10-year scenario's minor tick structure needs separate mention (experiments D3/D7): qwtDivideMajorStep(2, 5, Year) takes the "fractional year" branch and gets minStep = 0.5 years, while qwtDivideToYears converts to month offsets with qRound(i·0.5), yielding [12, 12, 24]. Both i=1 and i=2 round to 1 year, and i=3 rounds to 2 years (exactly the next major tick). Measured: all 6 medium ticks sit at the same position as some minor tick, and all 12 minor ticks sit at the same position as a major/medium tick, so the entire minor tick layer provides no new positions. With maxMinor=8 it is worse: the month offsets are [0, 12, 12, 12, 12, 24, 24], and the first minor tick lands directly on a major tick. Since v7.5.1 QwtScaleDiv::setTicks() removes those duplicate values ([12, 12, 24] normalizes to [12, 24]) and the drawing layer skips minor ticks equal to a major/medium tick, so nothing is overprinted visually; the engine behavior itself (the minor tick layer providing no new positions) is unchanged, and the budget should be set as this section advises when month ticks are needed.

6.6 Cross-validation

Engine Cases Consistent Inconsistent
linear (autoScale + direct + pipeline) 2000 2000 0
log (direct, incl. 5 degenerate cases) 405 405 0
date (direct + pipeline, incl. 8 hand-built scenarios) 608 608 0

The comparison covers the aligned bounds and step hint of autoScale, and the three-level tick counts plus the first and last major tick values of both divideScale paths (dates with a 0.5 ms tolerance). During the port, this comparison caught two real porting errors: a lost week0 year (C++'s setDate sets the full date) and a week-start locale difference. After both were fixed, full consistency was reached, which shows that the comparison catches errors in both directions.

7. Discussion: failure modes

  1. maxNumSteps is a soft constraint (pipeline path): 7.80% of random intervals measure 9 major intervals after autoScale → divideScale (budget 8). The root cause is that alignment expands by up to \(2s\) while the step is never recomputed. When a hard guarantee is needed, call divideScale yourself and check scaleDiv.ticks(MajorTick).size(), or take full control with setAxisScaleDiv.
  2. Narrow log intervals silently turn linear: an interval with ratio \(< b\) gets equidistant ticks on a log axis (\([1,\sqrt{10}]\) → 1, 1.5, 2, 2.5, 3); when the label format still renders for a log axis, "log labels" that are not powers of 10 appear.
  3. The log major-step clamp eats the budget: \([3,300]\) under maxMajor=8 has only 2 major ticks (Section 4.3). Intervals 2–4 decades wide in log with unaligned endpoints are the worst-hit zone.
  4. The \(10^{-150}\) clamp for non-positive lower bounds: \([0, 1000]\) produces 9 major ticks starting from \(10^{-160}\); strip's fuzzy tolerance scales with the interval width and cannot weed out these tiny values. Data containing zero or negative values should not be handed to the log engine directly.
  5. The date Month level is nearly closed + hint-driven reclassification: with the default maxWeeks=4, Month opens only for spans > 224 days (maxSteps=8); a 3-month span gets week ticks. An 8.5-month span is reclassified as Week in the second classification because of the 30-day approximation (Section 5.6). To obtain month ticks, the conditions are maxWeeks less than the span in weeks (the default 4 usually satisfies this) and days > 28·maxSteps — enlarging the week ceiling with setMaxWeeks only makes weeks > maxWeeks harder to satisfy; the effect is to suppress Month and keep long spans in the Week classification. In the 8.5-month reclassification case, the failing gate is days > 28·10 = 280, and adjusting maxWeeks in either direction cannot save it; the correct fixes are to bypass the hint pass-back (call divideScale directly with stepSize = 0), raise the maxMajor budget, or derive intervalType yourself.
  6. Year-type minor tick collapse (deduplicated at the data and draw level since v7.5.1): qRound(i·minStep) makes fractional-year offsets repeat or land on major ticks ([12, 12, 24], [0, 12, …]); the minor tick layer carries zero information (Section 6.5). Since v7.5.1 duplicate values within a list are removed in setTicks() and minor ticks coinciding with a longer type are skipped in draw() (no visual overprinting; tests/scale_draw_test), but the engine's tick generation still produces those positions (the normalization only happens in QwtScaleDiv::setTicks()) - for the Year type, maxMinor ≤ 3 is recommended (offsets [12], normal behavior).
  7. Week alignment depends on the runtime locale: under zh-CN, Monday becomes Sunday (Section 5.7). Cross-region deployments need QLocale::setDefault or deriving alignDate yourself.
  8. Degenerate intervals expand by 100%: a single-point date series (width 0) triggers buildInterval; the single point 2024-03-10 is expanded to 1990-01-01 → 2060-01-01 (a 70-year span, Year type). A linear axis likewise gets \([0.5v, 1.5v]\).
  9. The 10000 major-tick cap truncates silently: when the user supplies an extremely narrow step via setAxisScale, buildMajorTicks truncates to 10000 ticks without warning (:614), leaving the second half of the axis unticked.
  10. strip's tolerance scales with the interval width: the first major tick of \([1, 10^7]\) is 0 (1 unit outside the interval, tolerance 10). Under wide-interval + small-step combinations, endpoint labels may fall outside the data range.
  11. Leap seconds are not in the model: Qt's time model is POSIX milliseconds and qwtDstTicks handles DST jumps only; leap seconds are neither represented nor produce duplicate ticks. For long series at sub-second precision, axis time and true UTC elapsed time accumulate a deviation (this is already the case at the Qt level, not introduced by QWT).

Fix note (v7.5.1) — tick deduplication (data and draw side)

Divisions of the first release could contain duplicated tick values (item 6 above: the Year-type qRound(i·minStep) yields [12, 12, 24], [0, 12, …]), and the drawing layer painted the list entry by entry without deduplication, so coinciding positions showed up as a thick line over a thin one; code relying on the tick list for interaction (such as snapping) had to deduplicate on its own. Since v7.5.1: QwtScaleDiv::setTicks() sorts and removes duplicate values (no duplicates remain within one list), and QwtAbstractScaleDraw::draw() skips ticks equal to a longer tick type (medium/major) — every position is painted once with the length of the longest type. The regression test tests/scale_draw_test verifies this by counting drawTick() calls (the device-pixel-aligned filled rectangles render idempotently, so a pixel comparison cannot see the difference); the contamination of interaction code by duplicate values also disappears with the data-side normalization.

8. Code practice

8.1 Switching engines and the date axis

Two direct references in the repository: examples/2D/bode (log axis; Plot.cpp:70-72 also demonstrates tightening the budget with setAxisMaxMajor(XBottom, 6)) and examples/2D/stockchart (date axis; Plot.cpp:110-115). The standard date-axis configuration replaces the engine and the scaleDraw as a pair:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
#include <qwt_plot.h>
#include <qwt_date_scale_engine.h>
#include <qwt_date_scale_draw.h>

QwtPlot* plot = new QwtPlot;

// data is stored as epoch milliseconds; UTC semantics avoid local time zone / DST interference
QwtDateScaleEngine* engine = new QwtDateScaleEngine(Qt::UTC);
engine->setMaxWeeks(52);                     // raise the week ceiling = suppress the Month level: a span whose week count does not exceed it never enters the Month gate, so a yearly view (52 weeks) stays in the Week classification (upstream business-chart usage; default 4); does not open up the Month level
plot->setAxisScaleEngine(QwtAxis::XBottom, engine);

QwtDateScaleDraw* draw = new QwtDateScaleDraw(Qt::UTC);
draw->setDateFormat(QwtDate::Day, "yyyy-MM-dd");   // override the default label format
plot->setAxisScaleDraw(QwtAxis::XBottom, draw);

plot->setAxisMaxMajor(QwtAxis::XBottom, 6);  // tighter budget: classification thresholds tighten accordingly
plot->setAxisMaxMinor(QwtAxis::XBottom, 3);  // Year type: avoid the qRound collapse (<=3)

Warning — The engine and the scaleDraw must use the same time spec

Pairing QwtDateScaleEngine(Qt::UTC) with QwtDateScaleDraw(Qt::LocalTime) leaves the tick positions and the labels one time-zone offset apart. Both take the timeSpec from their constructor argument; there is no cross-check.

8.2 Custom engines: a fixed-step subclass

Subclassing QwtScaleEngine requires implementing only two pure virtual functions. Below is an engine with "the step fixed at 0.25 and non-floating bounds", usable for a price axis:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
#include <qwt_scale_engine.h>
#include <qwt_scale_div.h>

class FixedStepEngine : public QwtScaleEngine
{
public:
    void autoScale(int maxNumSteps, double& x1, double& x2, double& stepSize) const override
    {
        Q_UNUSED(maxNumSteps);
        stepSize = 0.25;
        // the alignment arithmetic is done manually via the public QwtScaleArithmetic
        x1 = QwtScaleArithmetic::floorEps(x1, stepSize);
        x2 = QwtScaleArithmetic::ceilEps(x2, stepSize);
    }

    QwtScaleDiv divideScale(double x1, double x2, int maxMajorSteps,
                            int maxMinorSteps, double stepSize) const override
    {
        // compose a linear engine to reuse its tick-laying logic (the step is passed in as a given value)
        QwtLinearScaleEngine linear(base());
        linear.setAttributes(attributes());
        return linear.divideScale(x1, x2, maxMajorSteps, maxMinorSteps,
                                  stepSize == 0.0 ? 0.25 : stepSize);
    }
};

align is a protected member of QwtLinearScaleEngine and cannot be borrowed across classes; the example above hand-writes two lines of alignment in autoScale with the public QwtScaleArithmetic::floorEps/ceilEps, and in divideScale composes a linear engine to reuse its tick-laying and minor-tick logic, the least-effort structure for a custom engine.

8.3 Tuning quick reference

Need Means Basis
Denser/sparser ticks setAxisMaxMajor (default 8) both classification and step take it as input
Remove minor ticks setAxisMaxMinor(axis, 0) the maxMinorSteps > 0 gate of buildTicks
No endpoint rounding engine->setAttribute(QwtScaleEngine::Floating) skips align
Axis through zero setAttribute(IncludeReference) + setReference(0.0) the extend of autoScale
2–9 graduation on a log axis setAxisMaxMinor(axis, 9) (anything in 9–18) C2 table: full graduation only for 9–18; ≥ 19 degenerates to equidistant
Month ticks on a date axis keep maxWeeks < span in weeks (the default 4 is usually enough) and span > 28·maxMajor days; when the hint reclassifies, call divideScale directly with stepSize = 0 Month thresholds of Sections 5.2/5.6
ISO Monday-start week ticks QLocale::setDefault to a Monday locale before running Section 5.7

8.4 Example path erratum

The topic roadmap once listed examples/2D/scaleengine; that directory does not exist in the current repository. The real scale/time-axis examples are examples/2D/bode (log), examples/2D/stockchart (date + a custom QwtDateScaleDraw subclass) and examples/2D/cpuplot (real-time scrolling time axis). All example references follow these three.

9. Summary

The core step and alignment arithmetic (divideInterval + align) is only about fifty lines, and its behavioral boundaries sit almost entirely in the tolerances and integer semantics: the \(10^{-6}\) divideEps decides that exact boundaries do not jump a rung, floor(5/2)=2 decides that the ladder is 1-2-5 rather than 1-2-2.5-5, strip's \(10^{-6} w\) tolerance decides that wide intervals tolerate out-of-interval ticks, and the half-up rounding of qRound decides the Year-type minor tick collapse. \(\{1,2,5\}\) is chosen for decimal subdivisibility, not minimax optimality: it is the only triple of integers closed under the decimal dual \(s \mapsto 10/s\), which keeps a decade step halved or divided by five a nice number, and it pays 0.35 in worst-case inflation ratio for that property. The log and date engines each add hard constraints and failure surfaces (major step \(\geq 1\) decade, the 224-day threshold of the Month level, narrow log intervals turning linear, the 30-day approximation flipping the month/week classification). In practice the budget parameters control the "expected" tick layout while alignment and clamping control the "actual" one; the difference between the two (measured mean 2 intervals, +1 in the tail) must be checked or taken over by the caller.

10. References

  1. Heckbert, P. Nice Numbers for Graph Labels. in Graphics Gems, Academic Press, 1990. (the original source of round-up nice numbers)
  2. QWT7 sources: src/core/qwt_scale_engine.h/.cpp (QwtScaleArithmetic, linear/log engines), src/core/qwt_scale_div.h, src/core/qwt_date.h/.cpp, src/core/qwt_math.h (qwtFuzzyCompare), src/core/qwt_transform.cpp (LogMin/LogMax).
  3. QWT7 sources: src/plot/qwt_date_scale_engine.h/.cpp (date engine), src/plot/qwt_date_scale_draw.cpp (default label formats), src/plot/qwt_plot_axis.cpp (updateAxes pipeline and default budgets), src/plot/qwt_abstract_scale_draw.cpp (tick lengths).
  4. QWT7 examples: examples/2D/bode (log axis + setAxisMaxMajor), examples/2D/stockchart (date axis + custom scaleDraw), examples/2D/cpuplot (scrolling time axis).
  5. Experiment scripts: docs/assets/algorithms/scaleengine_experiment.py (port, scans, figures), docs/assets/algorithms/scaleengine_check.cpp (C++ cross-validation harness).
  6. Qt documentation: QLocale::firstDayOfWeek(); the day-clamping semantics of QDateTime::addMonths/addYears (CLDR week-start data).

Companion article: Real-time streaming data rendering strategies — every replot runs updateAxes again; how the call frequency of the scale engines coexists with the frame budget in streaming scenarios.
