qmake Single-File Build

Besides building QWT as shared libraries, Qwt also ships an amalgamated single-file form that skips the build step entirely. The src-amalgamate/ directory contains two generated files:

• QwtPlot.h: every Qwt header (core + 2D plotting + 3D plotting) merged into one file.
• QwtPlot.cpp: every Qwt source file merged into one file.

A single #include "QwtPlot.h" gives you the complete Qwt API. You compile these two files directly into your own program; no qwtcore / qwtplot / qwtplot3d library is linked at all.

To use the two files in a qmake project, set the Qt modules and macros listed below and add them to a .pro file. A runnable example lives in examples/qmakeExample/.

Tip

The single-file route suits quick integration, prototyping and single-file deployment. If you need shared libraries, follow the CMake build instructions and the Import Qwt guide instead.

Prerequisites

• Qt 5.12+ or Qt 6.x with qmake on the PATH.
• The src-amalgamate/ directory of this repository. In the examples below it sits two levels above the .pro file (../../src-amalgamate); in your own project, point the path wherever you keep the two files.

Required Dependencies

The amalgamation inlines the whole Qwt project: core, 2D plotting, 3D plotting, SVG, OpenGL and polar support all end up in QwtPlot.cpp. Unlike the library build (where QWT_CONFIG_* options can switch SVG, OpenGL or 3D off), the single file has no such switches: every feature is always present, so every dependency listed below is mandatory.

Dependency	Required	Notes
core, gui, widgets	Yes	Base Qt modules for widgets and plotting.
svg	Yes	The inlined QwtPlotSvgItem always needs it.
concurrent	Yes	Used by helper classes such as QwtSamplingThread.
printsupport	Yes	QwtPlotRenderer printing/export.
opengl	Yes	Needed by the inlined 3D module and QwtPlotOpenGLCanvas.
openglwidgets	Qt 6 only	Qt 6 splits OpenGL widgets into a separate module; Qt 5 uses the deprecated QGLWidget and does not need it.
System OpenGL (GL + GLU)	Yes	The 3D module uses modern OpenGL (GLSL shaders + VBO/VAO) and needs the system GL libraries; GLU is only used by the gl2ps vector-export fallback. GLU always lives in a separate system library, and with some Qt builds (e.g. ANGLE/OpenGL ES based MSVC packages) even Qt5OpenGL.lib does not transitively pull in the desktop OpenGL library, so both must be linked explicitly: -lopengl32 -lglu32 on Windows, -lGL -lGLU on Linux. On macOS the OpenGL framework provides both and is already pulled in by QT += opengl.

Compile-Time Macros

Qwt's *_global.h headers turn the per-module *_EXPORT macros into __declspec(dllexport) / __declspec(dllimport) only when the matching *_DLL macro is defined. With no *_DLL macro defined, *_EXPORT resolves to nothing, which is exactly the behavior needed when compiling the amalgamated sources straight into an executable (you are neither building nor consuming a DLL).

Macro	Default	Effect
QWT_DLL / QWT_MAKEDLL	undefined	DLL decoration for the 2D plotting module. Do not define — it would add dllexport/dllimport to symbols compiled into your binary.
QWTCORE_DLL / QWTCORE_MAKEDLL	undefined	DLL decoration for the core module. Do not define.
QWT3D_DLL / QWT3D_MAKEDLL	undefined	DLL decoration for the 3D module. Do not define.
QWT3D_NODLL	undefined	Safety switch that force-undefines the 3D DLL macros; only uncomment if your environment predefines QWT3D_DLL.
QWT_DEBUG_DRAW	0	Verbose drawing diagnostics. Optional; set to 1 to enable.
QWT_DEBUG_PRINT	0	Verbose printing diagnostics. Optional; set to 1 to enable.

Warning

QWT_CONFIG_* (e.g. QWT_CONFIG_QWTSVG) are CMake build options, not C++ preprocessor macros. They have no effect on the amalgamated single file; it always contains the full feature set.

You also do not need QT_NO_KEYWORDS or CONFIG += no_keywords: Qwt uses the Q_SIGNALS / Q_SLOTS macros internally and works with or without Qt keywords.

Complete .pro Example

Below is the project file used by examples/qmakeExample/. Copy it and point AMALGAMATE_DIR at your own copy of src-amalgamate/.

######################################################################
# Qwt Examples - Copyright (C) 2002 Uwe Rathmann
# This file may be used under the terms of the 3-clause BSD License
######################################################################

TEMPLATE = app
TARGET   = qmakeExample
CONFIG  += warn_on

# --- amalgamated single file ---
AMALGAMATE_DIR = $$PWD/../../src-amalgamate
INCLUDEPATH += $$AMALGAMATE_DIR
DEPENDPATH  += $$AMALGAMATE_DIR
HEADERS += $$AMALGAMATE_DIR/QwtPlot.h     # auto-moc: all Q_OBJECT macros live here
SOURCES += $$AMALGAMATE_DIR/QwtPlot.cpp   # no Q_OBJECT inside, no moc needed
SOURCES += main.cpp

# --- Qt modules: everything is inlined, so all are mandatory ---
greaterThan(QT_MAJOR_VERSION, 5) {
    QT += core gui widgets svg concurrent opengl printsupport openglwidgets
    CONFIG += c++17
} else {
    QT += core gui widgets svg concurrent opengl printsupport
    CONFIG += c++11
}

# --- system OpenGL GL + GLU ---
win32 {
    LIBS += -lopengl32 -lglu32
}
unix:!macx {
    LIBS += -lGL -lGLU
}

Tip — Why QwtPlot.h goes into HEADERS

The amalgamated header contains all Q_OBJECT declarations (50 of them) while QwtPlot.cpp contains none. Putting QwtPlot.h into HEADERS makes qmake's automatic moc generate moc_QwtPlot.cpp with all the meta-object code, the qmake equivalent of CMake's AUTOMOC. QwtPlot.cpp never needs a separate moc step.

Build Steps

Generate the Makefile with qmake, then build with the make tool matching your Qt toolchain:

cd examples/qmakeExample
qmake qmakeExample.pro
make                # Linux
mingw32-make        # Windows + MinGW
nmake               # Windows + MSVC (run in a Developer Command Prompt)

Alternatively, open qmakeExample.pro in Qt Creator and build from the IDE.

Note

src-amalgamate/QwtPlot.cpp is a ~2.4 MB merged source file that inlines the whole Qwt project. The first compile is noticeably slower than a regular example; incremental builds afterwards are fast because only changed files are recompiled.

C++ Standard

Qt 6 requires C++17; Qt 5 needs at least C++11. The .pro above sets this conditionally:

greaterThan(QT_MAJOR_VERSION, 5) {
    CONFIG += c++17
} else {
    CONFIG += c++11
}

CMake Single-File Build: staticExample

Besides qmake, the repository ships a CMake version of the single-file build as examples/staticExample/: it adds src-amalgamate/QwtPlot.h/.cpp straight to add_executable() without depending on any qwt library target, so a program needs nothing beyond the two files:

add_executable(${QWT_APP_NAME}
    main.cpp
    ${CMAKE_CURRENT_LIST_DIR}/../../src-amalgamate/QwtPlot.h
    ${CMAKE_CURRENT_LIST_DIR}/../../src-amalgamate/QwtPlot.cpp
)
target_include_directories(${QWT_APP_NAME} PUBLIC "${CMAKE_CURRENT_LIST_DIR}/../../src-amalgamate")

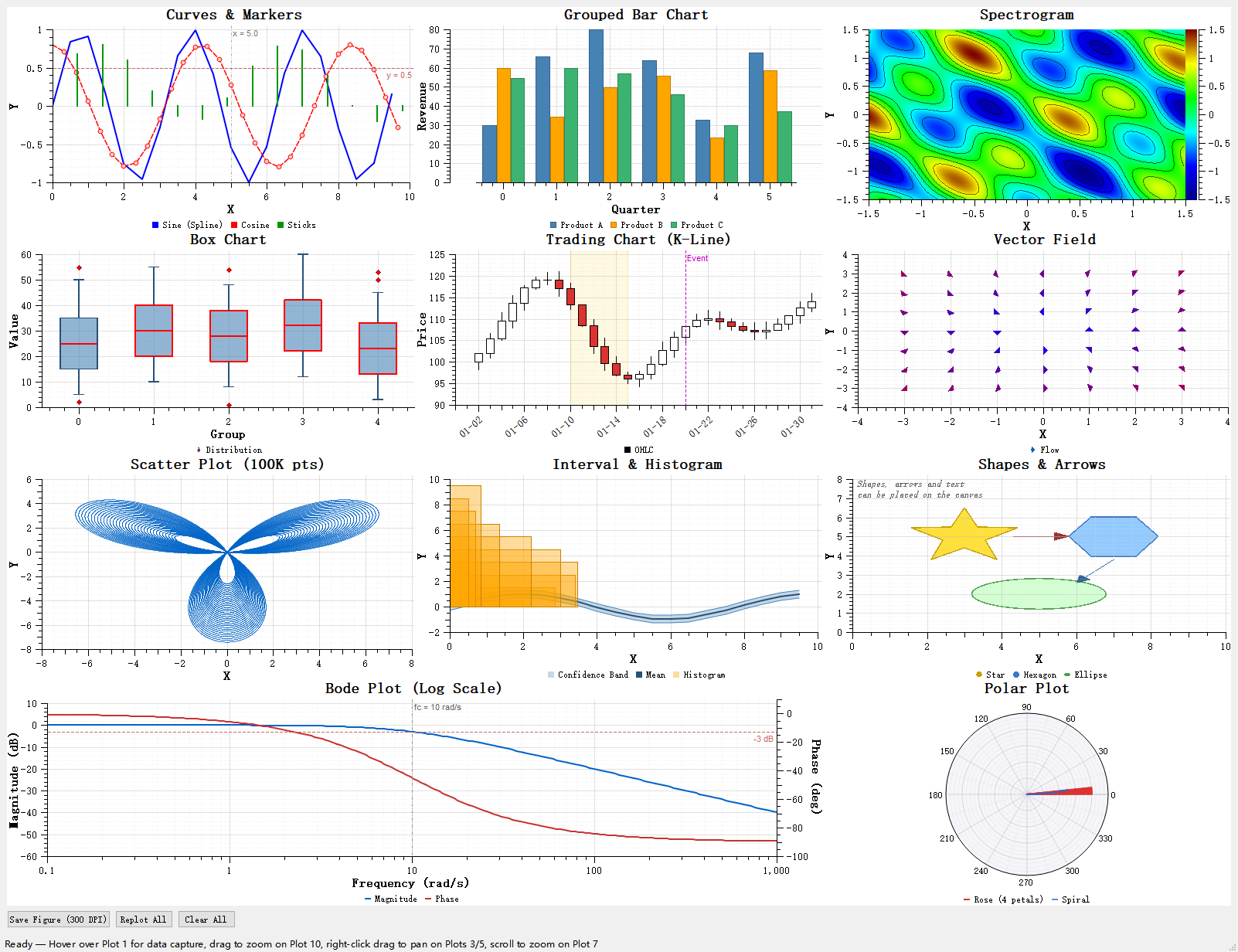

Build it from the main project with -DQWT_CONFIG_BUILD_STATIC_EXAMPLE=ON (the default). Result:

Troubleshooting

Problem	Fix
unresolved external symbol glu* or gl* (e.g. glGenLists, glOrtho)	Add the system OpenGL libraries: -lopengl32 -lglu32 on Windows, -lGL -lGLU on Linux. Some Qt builds (ANGLE/OpenGL ES) do not pull the desktop GL libraries in via Qt5OpenGL.lib, so link them explicitly. macOS gets both from the OpenGL framework.
Q_OBJECT / moc errors such as undefined reference to vtable	Make sure QwtPlot.h is listed in HEADERS (not only SOURCES) so qmake runs moc on it.
dllexport/dllimport mismatch or QWT_DLL redefinition	Remove any DEFINES += QWT_DLL (or QWTCORE_DLL / QWT3D_DLL) lines. A single-file build must keep all DLL macros undefined.
Qt 6: QOpenGLWidget not found	Add QT += openglwidgets (Qt 6 split it into its own module).
C++17 feature errors on Qt 6	Add CONFIG += c++17.
QwtPlot.cpp compiles very slowly	Expected for the first build (~2.4 MB of source). Use incremental builds afterwards; consider a build cache (ccache/clang-cl) for clean builds.
