The Rendering Performance of Qt Plotting Libraries: A Four-Way Measurement of Qwt, QCustomPlot, Qt Charts and QIm

Abstract — "Which Qt plotting library is fastest" is normally answered with a single sweep: frame time against point count, two or three libraries, one line each. That measurement answers one configuration and silently merges four different cost centres into one number. The measurement covers Qwt 7.5, QCustomPlot 2.1.0, Qt Charts 6.7 and QIm 0.0.3 (ImPlot) along eight dimensions: sample count, series count, canvas size, data handover versus repaint, built-in point reduction (cost and pixel fidelity), frame-time distribution, memory per sample and startup cost, plus a raster/OpenGL backend comparison for the two libraries that offer both. One harness (examples/bench/chartbench) runs every library through an identical protocol, each library in its own process. The protocol changes the result: QOpenGLWidget defers a plain repaint() to Qt's composition step, so the naive way to time a GL library reports 0.004 ms for a 100 000-sample curve; the harness drives the GL entry points synchronously instead, and reports the one library that could not be measured that way. The 17 figures and 15 tables show the four libraries in three regimes, and the choice of point reduction is worth two orders of magnitude more than the choice of library, backend or canvas.

Abstract — Key results

• The ranking inverts twice between 1 000 and 5 000 000 samples. At 1 000 samples Qt Charts draws a frame in 0.528 ms against Qwt's 2.025 ms (3.8×); at 5 000 000 samples Qwt needs 515.6 ms against QCustomPlot's 985.5 ms (1.9×) and Qt Charts' 779.0 ms (1.5×). Every library is still inside the 60 Hz budget at 100 000 samples and every one of them has left it by 250 000, and the marginal cost of a sample differs by up to 2.8× between libraries.

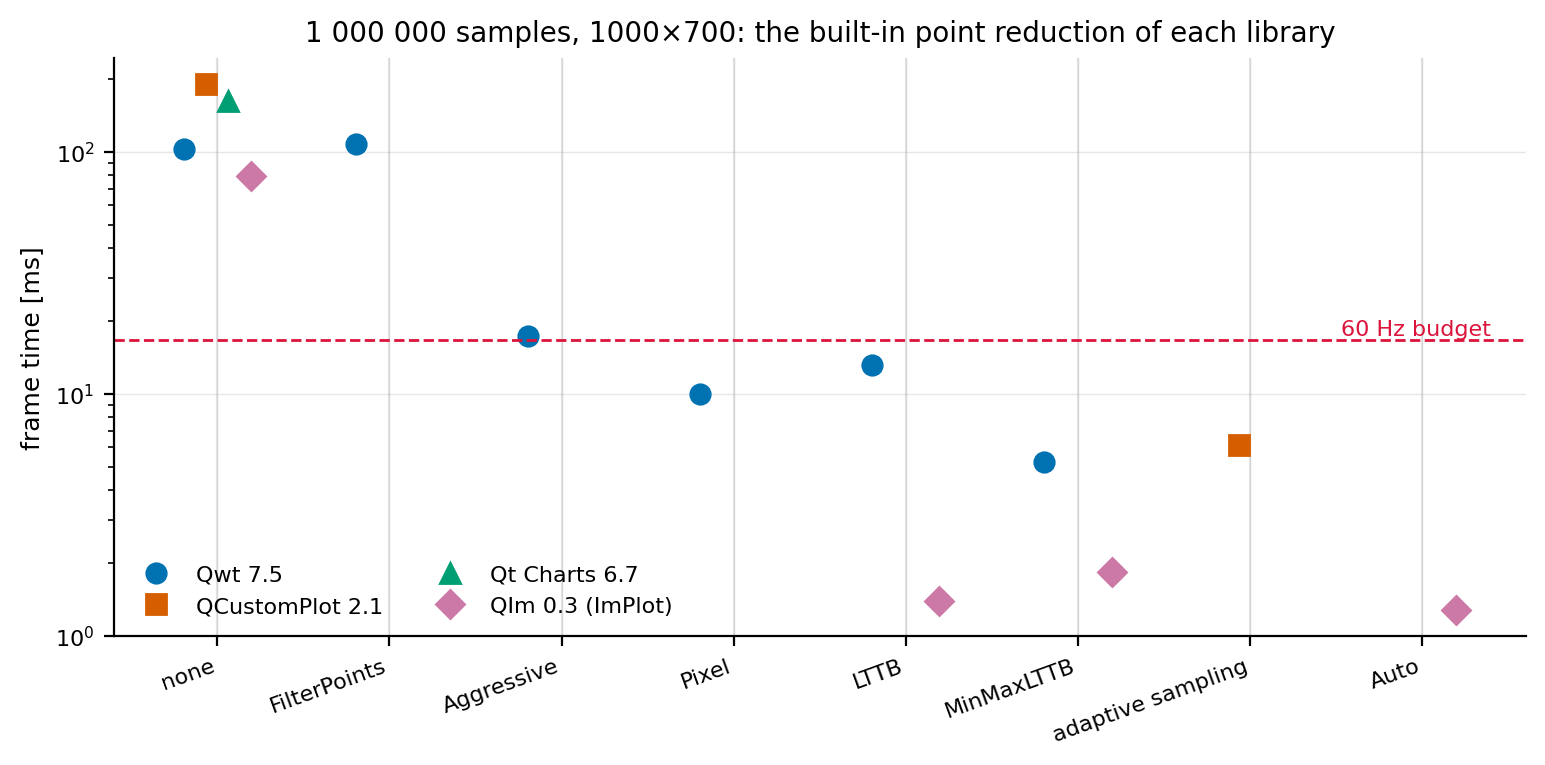

• Point reduction is the only lever with two orders of magnitude in it. At one million samples QIm's Auto (MinMaxLTTB) draws the frame in 1.277 ms, 62× faster than its own unreduced path and 127× faster than Qt Charts, which has no reduction to offer (161.8 ms). Qwt's FilterPointsMinMaxLTTB reaches 5.200 ms (19.8× its own baseline) and QCustomPlot's adaptive sampling 6.163 ms (30.9×).

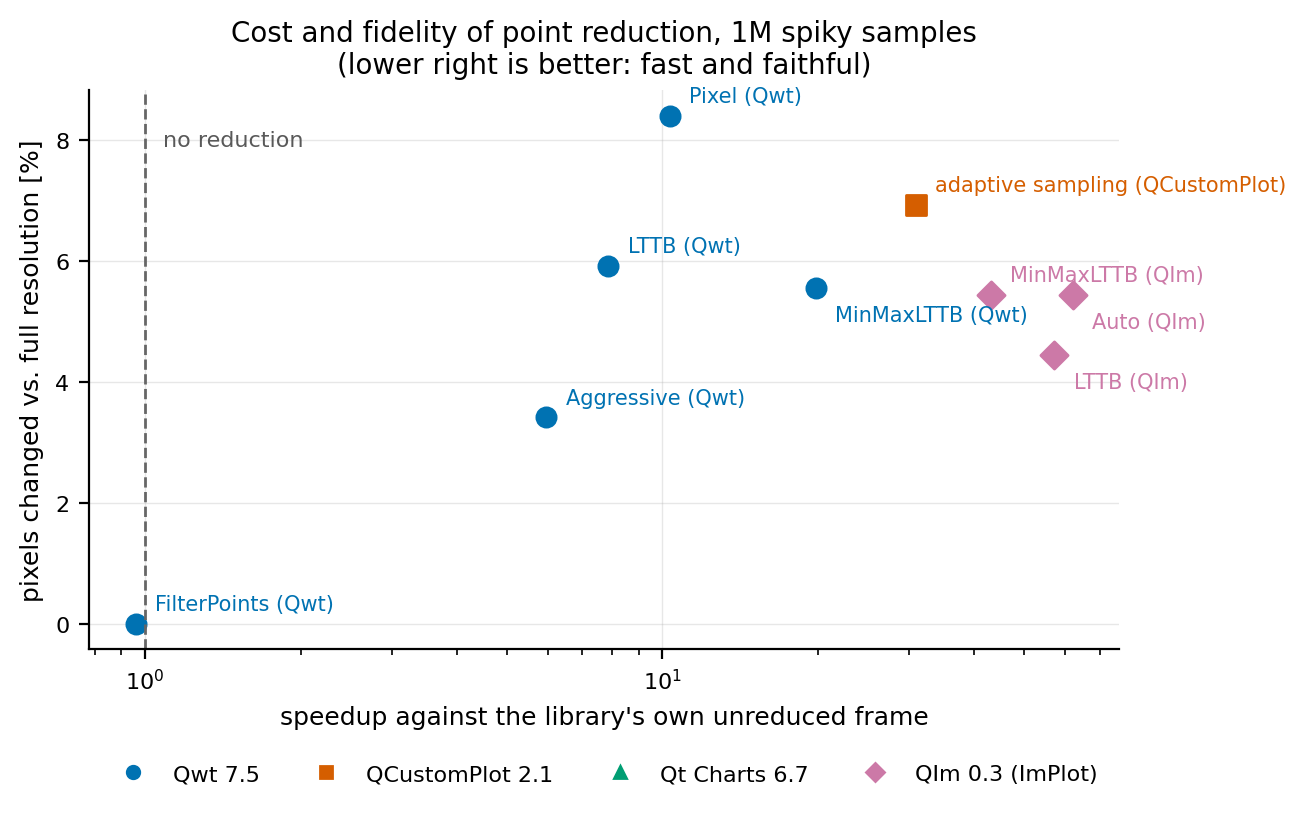

• Fidelity separates the algorithms into two families, and the fastest are not the least faithful. Qwt's MinMaxLTTB changes 5.56 % of pixels with an ink ratio of 0.821, while FilterPointsAggressive retains only 0.394 of the curve's ink and QCustomPlot's adaptive sampling 0.915; Qwt's classic FilterPoints filter is pixel-identical to no reduction at all (0.00 % changed) while also being slightly slower.
• The data API costs more than the renderer. At a 100 000-sample window the libraries spend 8.1–14.6 ms drawing (1.8× spread) but 230 \(\mu\)s to 141.7 ms handing the data over (616× spread). A standalone probe shows where Qt Charts' handover goes: 0.73 ms building the QList<QPointF> its API requires, 48.65 ms inside QXYSeries::replace() and 25.55 ms in two QValueAxis::setRange() calls; replace() is 26× cheaper when the chart is not in a live view.

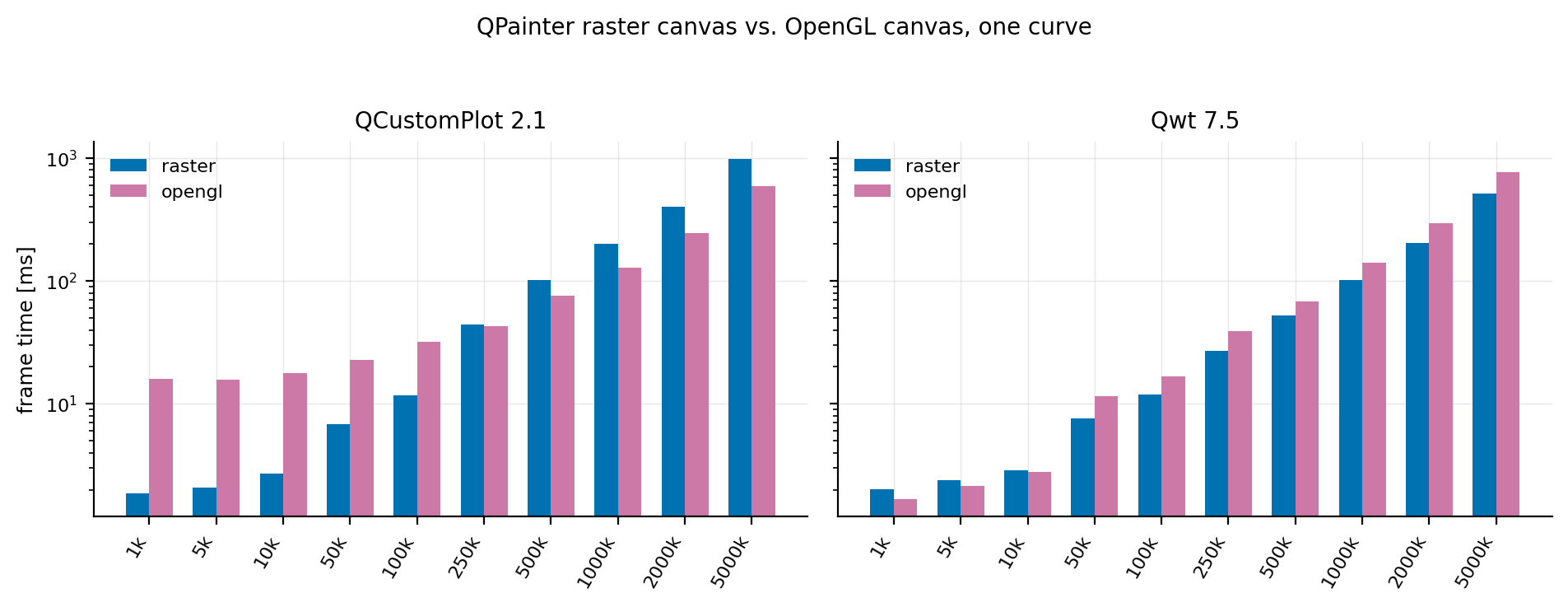

• OpenGL is not a strategy for line charts, and the two GL implementations differ by an order of magnitude in when they pay off. Qwt's GL canvas is 1.22× faster at 1 000 samples and 1.50× slower at five million; QCustomPlot's GL paint buffer costs 16.1 ms per frame at 1 000 samples and overtakes its own raster path between 100 000 and 250 000 samples, reaching 1.66× at five million.

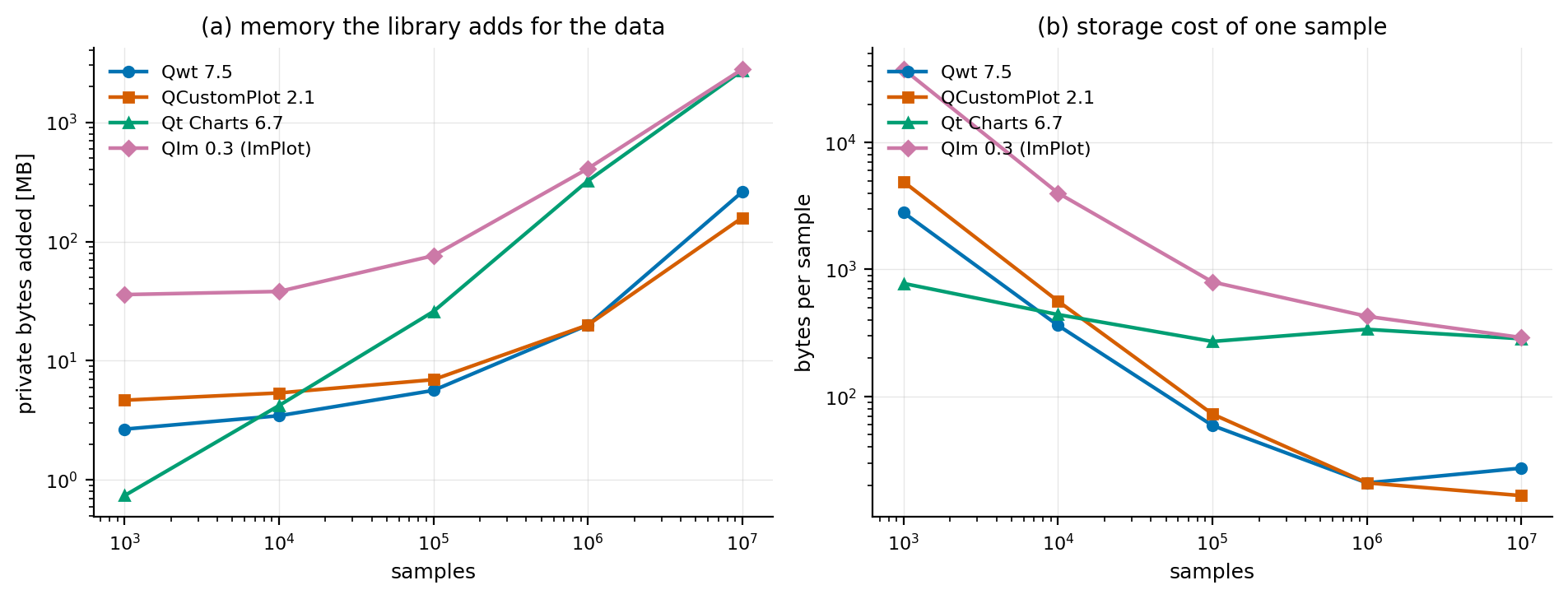

• Memory per sample differs by more than 20× between libraries once the data dominates: 16.6 B/sample for QCustomPlot and 20.9 B for Qwt at a million samples, against 337.8 B for Qt Charts and 427.9 B for QIm. For one million points in 100 series, Qt Charts needs 272.9 MB where QCustomPlot needs 21.4 MB.

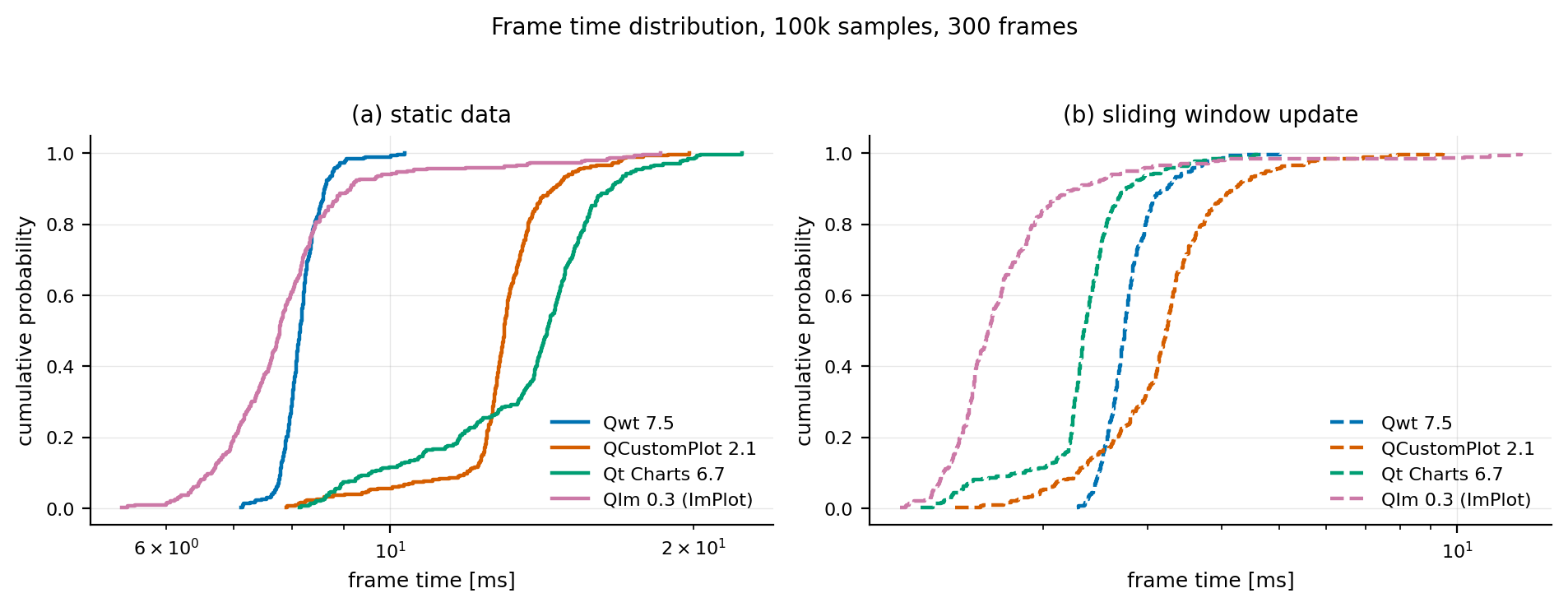

• Frame-time stability is a separate axis from speed. QIm has the best median of the four (7.77 ms at 100 000 static samples) and the worst relative tail (p99/p50 of 2.2×, max/p50 of 2.4×); Qwt is 5 % slower at the median (8.14 ms) with by far the tightest spread (1.27× to its own worst frame).
• Qt Charts' setUseOpenGL(true) series never reach the framebuffer in a synchronous frame protocol (measured curve-ink coverage 0.0009 against 0.0586 for the raster path), so that backend is excluded rather than estimated.

---

1. Introduction

1.1 The question and why it is usually answered badly

"Which Qt plotting library is fastest" is one of the most frequently asked questions in Qt application development, and the answers one finds are almost always a single sweep: plot frame time against number of points for two or three libraries, draw the lines, declare a winner. That measurement answers exactly one configuration (one curve, one canvas size, static data, whatever the library's point-reduction defaults happen to be) and silently mixes four different cost centres into one number.

That approach produces advice that often fails in a real application. A telemetry dashboard that appends 10 000 samples per second to a sliding window has a completely different cost profile from a scientific plot that opens a five-million-sample file once and lets the user zoom. A chart with 50 series of 2 000 points is not "the same workload scaled down" as one series of 100 000 points, because the per-series overhead and the per-sample overhead live in different places. And the single most consequential design decision, whether the library reduces the point set before rasterizing it, is usually left at its default, so the comparison measures the defaults rather than the libraries.

The measurement covers the four libraries a Qt developer realistically chooses between: Qwt 7.5, QCustomPlot 2.1.0, Qt Charts 6.7 and QIm 0.0.3 (ImPlot). It uses eight independent dimensions, with one harness that drives all four through an identical protocol.

1.2 The cost model

One displayed frame of a line chart can be decomposed as

\[ T_{\text{frame}} \;=\; T_{\text{handover}} \;+\; T_{\text{transform}}(N,K) \;+\; T_{\text{raster}}(N,K,W\!\times\!H) \;+\; T_{\text{compose}}(W\!\times\!H) \;+\; T_{\text{present}} \]

where \(N\) is the sample count per series, \(K\) the number of series and \(W\!\times\!H\) the canvas size. The five terms have different owners:

Term	What it is	Who pays it
\(T_{\text{handover}}\)	Copying/validating new data into the library's own container	The library's data API
\(T_{\text{transform}}\)	Coordinate mapping, point reduction, clipping, path building	The library's curve class
\(T_{\text{raster}}\)	Turning the polyline into pixels	Qt raster paint engine, or the GPU
\(T_{\text{compose}}\)	Blitting/compositing the rendered surface	Qt widget compositing, or the GL widget path
\(T_{\text{present}}\)	Handing the surface to the window system	DWM / the platform compositor

The four libraries distribute this work very differently, and the differences are not constants that cancel out; they scale with different variables. Each term is measured below where it can be isolated.

1.3 Contributions

1. A protocol that makes the four libraries comparable (Section 3). Timing a single call is easy; the hard part is defining "one frame" identically for a QWidget painted by QPainter and for a QOpenGLWidget whose repaint() Qt defers to the composition step. Section 3.2 shows that the naive repaint() protocol makes a GL library look 250× faster than it is, and how the harness avoids that.
2. Eight measurement dimensions (Section 4): sample count, series count, canvas size, data handover versus repaint, built-in point reduction, frame time distribution, process memory, and startup cost, plus a raster/OpenGL backend comparison for the two libraries that offer both.
3. A pixel-level fidelity metric for point reduction (Section 4.5) that compares each library against its own full-resolution render, which is what makes the fidelity numbers comparable across libraries that lay their plots out differently.
4. A reproducible harness (examples/bench/chartbench, 8 suites, 6 processes) and the complete analysis pipeline (docs/assets/bench/) that regenerates every figure and every number here.
5. Negative results (Section 6): Qt Charts' OpenGL series path could not be measured with a synchronous frame protocol, and the report gives the pixel evidence instead of a plausible-looking number.

2. Four libraries, four rendering pipelines

The measured differences are not accidents; each library's numbers follow from where its architecture puts the work. This section reads the four pipelines out of their source code, because those structural facts are what the later measurements confirm or contradict.

flowchart TB
    subgraph Qwt["Qwt 7.5"]
        A1["QwtPointMapper::toPolygonF<br/>map + optional reduce"] --> A2["QwtClipper<br/>clip"] --> A3["QPainter::drawPolyline<br/>CPU raster engine"] --> A4["backing store pixmap<br/>+ blit"]
    end
    subgraph QCP["QCustomPlot 2.1"]
        B1["getOptimizedLineData<br/>pixel column min/max"] --> B2["QCPPainter::drawPolyline"] --> B3["paint buffer<br/>QPixmap or FBO"] --> B4["widget repaint<br/>blit"]
    end
    subgraph QTC["Qt Charts 6.7"]
        C1["QList&lt;QPointF&gt; per series"] --> C2["QPainterPath per series"] --> C3["QGraphicsScene render<br/>CPU raster engine"] --> C4["QGraphicsView viewport"]
    end
    subgraph QIM["QIm 0.0.3"]
        D1["ImPlot Getter<br/>+ optional downsample"] --> D2["ImDrawList<br/>4 vertices per segment"] --> D3["ImGui::Render<br/>one draw call"] --> D4["GPU rasterization<br/>into the widget FBO"]
    end

The four boxes differ in where the per-sample loop runs (Qwt/QIm transform vectorized or per segment, Qt Charts per QPointF), in who rasterizes (CPU for three of them, GPU for QIm), and in what is cached between frames (nothing for all four under a full replot).

2.1 Qwt: one mapper, one polyline, one backing store

QwtPlotCurve::drawLines() (src/plot/qwt_plot_curve.cpp) runs the whole per-sample pipeline in one place: QwtPointMapper::toPolygonF() maps the data to screen coordinates and applies the configured point reduction, QwtClipper::clipPolygonF() clips against the canvas, and QwtPainter::drawPolyline() hands the result to QPainter. There is no per-sample object and no intermediate QGraphicsItem: the cost of \(N\) samples is one linear pass producing one QPolygonF.

The reduction step is worth stating precisely because it explains the results in Section 4.5. QwtPlotCurve::PaintAttribute offers five strategies, and their output budgets are expressed in pixel columns (\(W\) = canvas width):

Attribute	Rule	Output budget
FilterPoints	Drop duplicates and points outside the visible area	\(N\) (worst case)
FilterPointsAggressive	Collapse runs that map to the same integer coordinate to first/min/max/last	\(\le 4W\)
FilterPointsPixel	Bin per pixel column, emit first/min/max/last with sub-pixel placement	\(\approx 4W\)
FilterPointsLTTB	Largest-Triangle-Three-Buckets	\(\approx 4W\)
FilterPointsMinMaxLTTB	Min/max per bucket	\(\approx 2W\)

The default is not obvious from the API. A QwtPlotCurve is constructed with

paintAttributes(QwtPlotCurve::ClipPolygons | QwtPlotCurve::FilterPointsLTTB)

(src/plot/qwt_plot_curve.cpp:84); LTTB reduction is on by default in Qwt 7.5, and the project's CHANGES.md records that this has been the default since v7.3.2 (as the MinMax bucket until v7.4.2, as the shape-preserving LTTB since v7.5.0). The four reduction flags are gated independently (qwt_plot_curve.cpp:611-619), so any of them can be selected or switched off without touching the others. The consequence for the measurements is stated once and then assumed: every measurement here uses explicitly configured filters, never library defaults, because a benchmark that plots setSamples() and calls replot() on Qwt is silently measuring the LTTB path.

The canvas is a QFrame with a backing store (QwtPlotCanvas), and replot() invalidates that store before repainting, so a full-frame replot always takes the "repaint everything, then blit" path. The ImmediatePaint attribute turns replot() into a synchronous repaint(); this is the hook the harness uses to define a finished Qwt frame.

2.2 QCustomPlot: an adaptive sampler with a self-tuning threshold

QCustomPlot's graph stores QCPGraphData records (a key and a value, 16 bytes per sample on x64; qcustomplot.h:5427-5444) in a sorted container, and QCPGraph::draw() calls getOptimizedLineData() before painting (examples/bench/chartbench/qcustomplot.cpp:21661). The sampler is a pixel-column min/max clusterer that activates on a density condition:

int dataCount = int(end-begin);
int maxCount = (std::numeric_limits<int>::max)();
if (mAdaptiveSampling)
{
  double keyPixelSpan = qAbs(keyAxis->coordToPixel(begin->key)-keyAxis->coordToPixel((end-1)->key));
  if (2*keyPixelSpan+2 < static_cast<double>((std::numeric_limits<int>::max)()))
    maxCount = int(2*keyPixelSpan+2);
}
if (mAdaptiveSampling && dataCount >= maxCount) // use adaptive sampling only if there are at least
                                                // two points per pixel on average

The threshold is not a sample count but a density: reduction starts only when the visible data has at least two points per pixel column. That makes the decision canvas- and zoom-aware, and it is why the measured crossover for QCustomPlot sits at a different place than for Qwt's attribute switch. It is on by default; the harness switches it off explicitly (setAdaptiveSampling(false)) for the raw measurements.

Painting goes into a paint buffer whose implementation is chosen at compile time: QCPPaintBufferPixmap (a QPixmap and a QPainter) or, with QCUSTOMPLOT_USE_OPENGL, QCPPaintBufferGlFbo (a QOpenGLPaintDevice on an FBO). replot(rpImmediateRefresh) draws every layer into that buffer and then repaints the widget synchronously, which is a complete QCustomPlot frame.

2.3 Qt Charts: a scene graph, and data as objects

Qt Charts is a QGraphicsScene with chart items rather than a dedicated plotting widget. A QLineSeries stores its data as QList<QPointF>, so handing over \(N\) samples means constructing \(N\) QPointF objects; the API offers no raw-array entry point. Painting builds a QPainterPath per series inside the scene render, and QChartView is a QGraphicsView whose paintEvent renders that scene.

Two consequences follow directly from this structure and both show up in the measurements: data handover is expensive relative to the other libraries (Section 4.4 and 4.8), and there is no built-in point reduction at all; the series is drawn as given. The one acceleration Qt Charts offers is QAbstractSeries::setUseOpenGL(true), which renders the series through a GL paint device instead of the raster engine; Section 6 explains why that path could not be measured.

2.4 QIm: a retained-mode facade over ImPlot, and per-segment quads

QIm is a Qt wrapper around Dear ImGui/ImPlot. Its figure widget is a QOpenGLWidget; paintGL() builds an ImGui frame (QtImGui::newFrame → node tree → ImGui::Render) and submits it. ImPlot does not stroke a path for a line. Its renderer walks the data and emits a quad per line segment into an ImDrawList on the CPU:

struct RendererLineStrip : RendererBase {
    RendererLineStrip(const _Getter& getter, ImU32 col, float weight) :
        RendererBase(getter.Count - 1, 6, 4),   // one primitive per segment, 6 indices, 4 vertices
        ...
    IMPLOT_INLINE bool Render(ImDrawList& draw_list, const ImRect& cull_rect, int prim) const {
        ImVec2 P2 = this->Transformer(Getter(prim + 1));
        if (!cull_rect.Overlaps(ImRect(ImMin(P1, P2), ImMax(P1, P2)))) { P1 = P2; return false; }
        PrimLine(draw_list,P1,P2,HalfWeight,Col,UV0,UV1);
        P1 = P2;
        return true;
    }

So \(N\) samples become \(4(N-1)\) vertices and \(6(N-1)\) indices, built on the CPU, submitted as one (or a few) draw calls and rasterized on the GPU. This architecture predicts what the measurements show: a very low fixed cost (one widget, one draw call, no per-series QPainterPath) and a per-sample cost driven by the vertex expansion. It also predicts where that cost lives (in the CPU building the draw list or in the GPU rasterizing it), and Section 4.9 settles that question with the glFinish measurement: for QIm, most of a large frame is GPU time.

QIm also ships its own reduction: QImDownsamplingController reduces when the series exceeds a threshold of 20 000 samples, and in Auto mode picks LTTB above 10 000 and MinMaxLTTB above 100 000 samples, targeting \(5 \cdot W\) output points clamped to \([100, 50000]\). The three libraries trigger reduction differently: Qwt's strategies are attributes with no threshold, QCustomPlot's trigger is a density and QIm's is a sample count.

2.5 What the architectures predict

	Qwt	QCustomPlot	Qt Charts	QIm
Per-sample storage	2×double (16 B)	QCPGraphData (16 B)	QPointF (16 B)	2×double (16 B)
Transform	vectorized mapper + optional SIMD argmin/argmax	per-point iterator + pixel clustering	per-point QPointF → QPainterPath	per-point vertex expansion (4 vtx/segment)
Raster	CPU (raster engine)	CPU (or FBO)	CPU scene render (or GL)	GPU
Reduction default	on (FilterPointsLTTB, budget 4W)	on (≥2 points/pixel)	none available	on (≥20 000 samples)
Per-series cost	small (one path)	small	larger (scene item + path)	small
Fixed per-frame cost	low	low	scene traversal	GL frame setup

Four predictions to test: (i) QIm should win at small \(N\) because of its low fixed cost; (ii) the three QPainter libraries should be close to each other at moderate \(N\) but diverge in scaling because their transforms differ; (iii) Qt Charts should pay the most for data handover and for many series; (iv) point reduction should dominate everything else at large \(N\), and the fidelity of the reduction should differ measurably between the four implementations.

3. Measurement methodology

3.1 The harness

examples/bench/chartbench is a single executable that contains four adapters (QwtAdapter, QCustomPlotAdapter, QtChartsAdapter, QImAdapter) behind one interface, and eight suites. Every suite builds a plot, hands over data and then drives frames; the adapters are the only place where library-specific code lives. The full protocol is documented in the example's README.md; this section covers the parts that determine whether the numbers mean anything.

sequenceDiagram
    participant S as Suite
    participant A as Adapter (library specific)
    participant P as Plot widget
    S->>A: create(parent, spec)          // timed: create_ms
    S->>A: rebuild(x, y)                 // timed: handover_ms
    S->>P: processEvents() x3            // lay out + expose
    S->>A: frame()                       // timed: first frame
    loop warm-up, discarded
        S->>A: updateWindow() / frame()
    end
    loop up to 60 frames or 4 s budget
        S->>A: updateWindow()            // timed: update_ms
        S->>A: frame()                   // timed: render_ms
    end
    S->>S: write frame rows + one config row
    S->>A: destroy()

Every library is driven through the same four calls; the only library-specific code is what those calls do internally.

3.2 Defining "one frame" across a raster widget and a GL widget

The single most important methodological problem in a cross-library comparison is that the natural way to ask a widget for a frame, QWidget::repaint(), does not do the same thing for all of them.

For a QPainter-based widget, repaint() sends a paint event synchronously and the pixels exist when the call returns. For a QOpenGLWidget, Qt defers the GL work to the composition step of the backing store, which happens later, in the event loop. Measured with a plain repaint(), the QIm adapter reported frames of 0.004 ms for a 100 000 sample curve, which means nothing happened rather than that the frame was fast. The same artefact appears for Qwt's OpenGL canvas.

The harness therefore drives the GL libraries the way Qt itself does when it composes:

m_benchFigure->beginFrame();    // makeCurrent(): binds the context and the widget's FBO
m_benchFigure->renderFrame();   // paintGL(): the library's own render code
m_benchFigure->finishFrame();   // glFinish() + doneCurrent()

paintGL() is protected, so both GL adapters use a one-line subclass to expose it. This is the only protocol under which a QIm frame can be timed at all, and it measures exactly the library's own work: ImGui frame construction, the node tree, the vertex expansion and the GL submission, plus the GPU execution of the plot's own commands via glFinish(). Qt's compositing of the resulting texture into the top-level window is deliberately outside the measurement for both GL libraries, and so is the equivalent backing store flush for the raster libraries.

The per-library definitions of a complete frame are:

Library	Frame operation
Qwt (raster)	plot->replot() with QwtPlotCanvas::ImmediatePaint set (synchronous canvas repaint)
Qwt (GL)	plot->replot() (layout) + makeCurrent/paintGL/glFinish on the canvas
QCustomPlot	replot(QCustomPlot::rpImmediateRefresh) (draw all layers + synchronous repaint)
Qt Charts	QGraphicsView::render() into a reused image — the same scene render paintEvent performs
QIm	makeCurrent/paintGL/glFinish

The Qt Charts entry is the one deviation: repaint() on a QGraphicsView with a plain viewport does trigger the scene render, but it cannot express the GL series path at all, so the harness uses the scene render call for both, which is also what the library's own export path uses. The deviation is conservative in the sense that it omits the viewport blit, which is a sub-millisecond constant on a 1000×700 canvas.

3.3 What is measured per frame

Each measured frame is timed as

t_update   = time to hand new data to the library   (0 when the data is static)
t_render   = time of the frame operation above

and both are written to the CSV per frame. This split is what allows Section 4.4 to separate "drawing is slow" from "handing over data is slow", a distinction a single replot() timing cannot make: a dashboard that updates 60 times per second pays the handover cost sixty times per second.

3.4 Statistics

Per configuration the harness discards 5 warm-up frames, then records up to 60 frames or until a 4 s budget is exhausted (whichever comes first, with a minimum of 3 frames). Configurations that hit the budget are flagged aborted and their frame count is reported, so a reader can see when a number comes from a truncated run.

Five frames are not enough to warm up a process, and the difference is large enough to change conclusions: measured without a process warm-up, the very first configuration of a run is systematically slower than an identical later one: QIm's first 1000-sample plot took 1.30 ms where the same plot took 0.81 ms once the process had drawn something. GL driver and shader initialisation, page faults on the library's first touch and timer resolution all land in that first configuration. Every run therefore begins with one discarded 1000-sample configuration (30 frames) before the first measured one, and the raw CSVs contain no rows for it.

The analysis uses the median of the measured frames as the primary statistic and reports p95/p99 for the tail-latency analysis. The first measured frame is excluded from the statistics as well, because it still contains one-off work (paint buffer allocation, GL program setup).

3.5 Attributing memory

Process memory is only meaningful if it can be attributed. Each library therefore runs in its own process (the driver script starts six processes, one per library and backend), and the memory baseline is sampled after the input data exists in the harness but before the plot is created. The reported private_mb - baseline_private_mb is consequently what the library itself adds for the widget and the data, not the harness's own copy of the input.

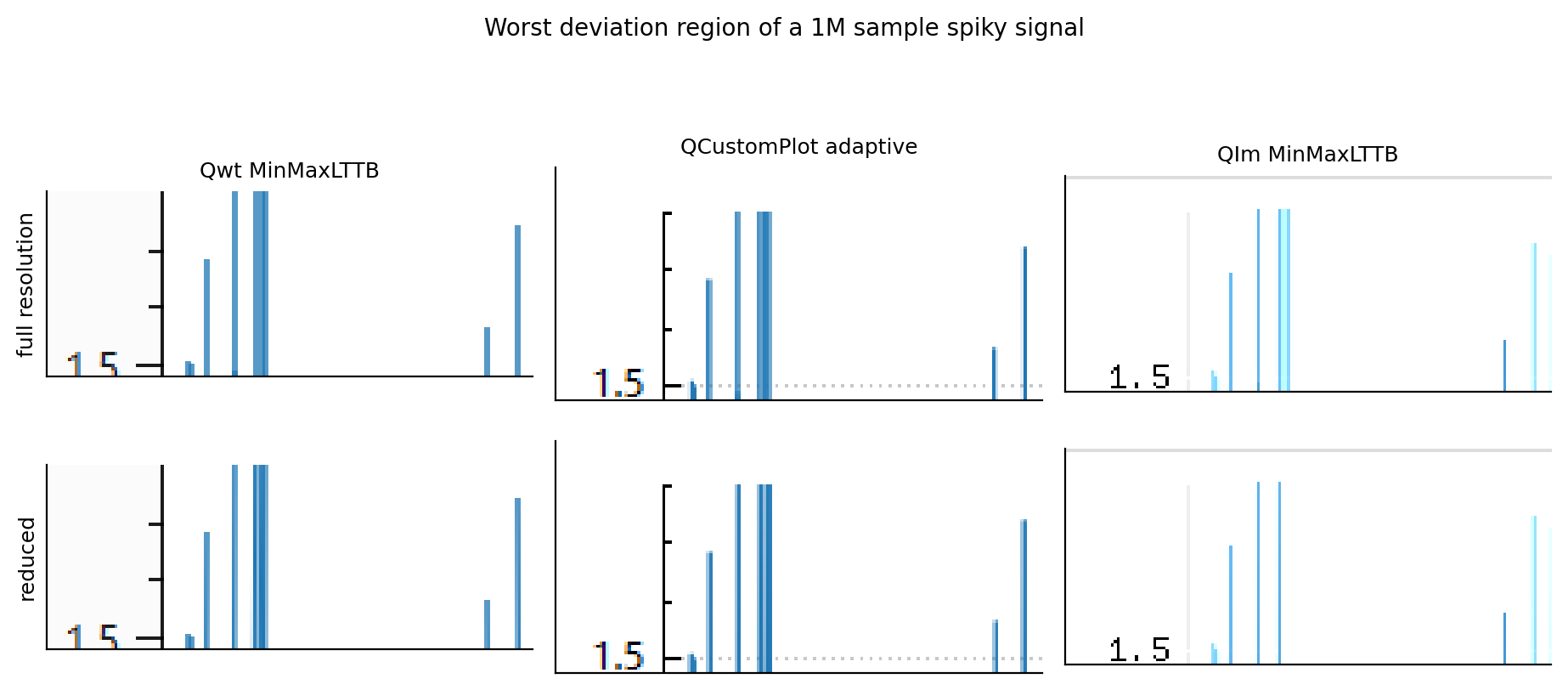

3.6 Measuring fidelity of point reduction

Comparing the pixels of two different libraries is not meaningful: they place their plot areas differently (different margins, tick label sizes, fonts), so the same curve lands on different pixels. The fidelity experiment therefore compares each library against its own full-resolution render of the same data with the same axes, styling and canvas size. Every differing pixel is then caused by the reduction algorithm alone, and the resulting metrics are comparable across libraries.

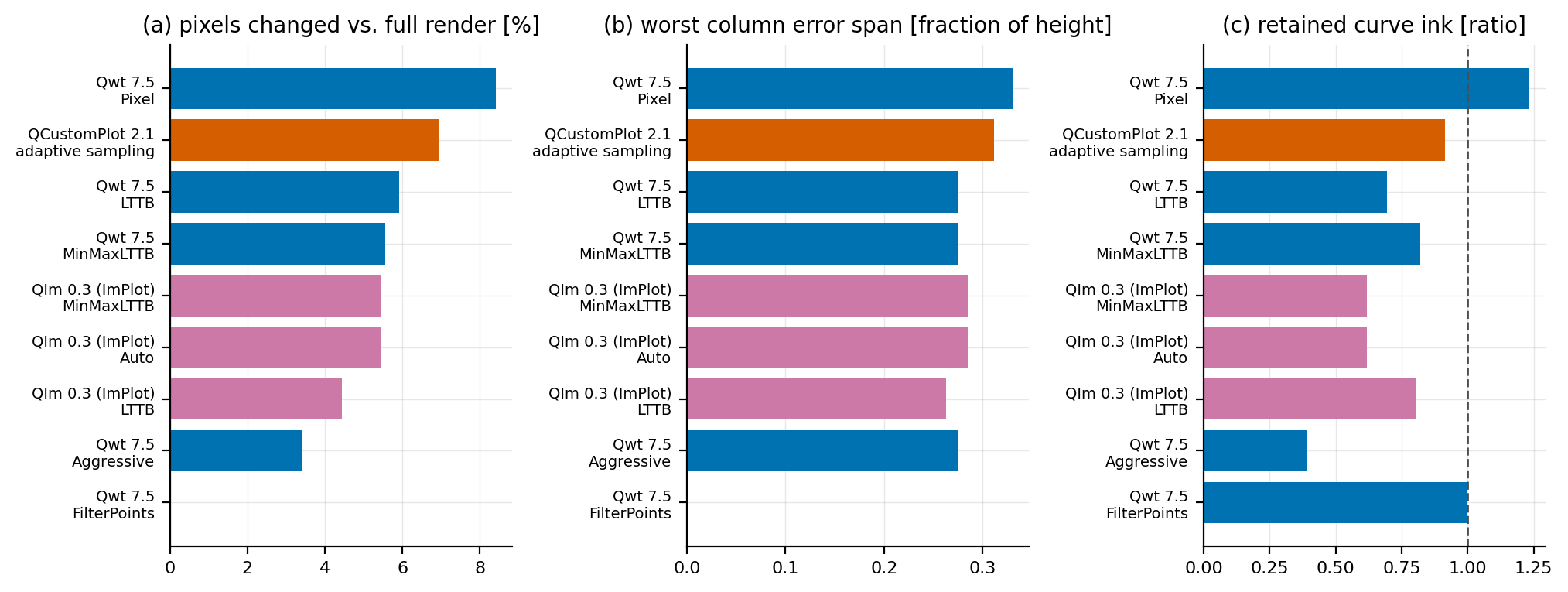

Three metrics are computed from each pair of images (docs/assets/bench/chartbench_fidelity.py):

• changed_frac: fraction of pixels whose largest channel difference exceeds 16/255, i.e. how much of the picture the reduction moved;
• span_ratio: the worst column's vertical extent of differing pixels divided by the image height; this catches the specific failure mode of bucket samplers, a narrow spike collapsed into a short stroke;
• ink_ratio: curve pixels of the reduced render divided by curve pixels of the full render; a value below 1 means the reduction drew less than the data contains, above 1 means it drew extra ink (vertical strokes).

The test signal is a spiky series (a smooth base plus narrow Gaussian peaks, 0.2 % spike probability at 1M samples) because a smooth signal cannot discriminate between the algorithms: any reduction that preserves the envelope looks identical on a sine.

3.7 Environment

CPU	Intel Core i7-1260P (12 cores / 16 threads)
GPU	Intel Iris Xe Graphics (integrated), driver 30.0.101.3111
Memory	32 GB
OS	Windows 10 (10.0.26200), desktop session, 100 % scaling
Qt	6.7.3, msvc2019_64, Release
Compiler	MSVC 2019, C++17
Qwt	7.5.0 (this repository, QWT_CONFIG_QWTOPENGL=ON)
Canvas	1000×700 device-independent pixels, device pixel ratio 1.00
Antialiasing	on for all libraries (their default), 1 px pen

Absolute times are machine specific; the argument rests on the orderings and the shapes of the curves. Every figure is regenerated by docs/assets/bench/chartbench_experiment.py from the CSV tables produced by examples/bench/chartbench/run-bench.sh on this machine.

4. Results

The harness ran six processes (Qwt raster, Qwt OpenGL, QCustomPlot raster, QCustomPlot OpenGL, Qt Charts raster, QIm OpenGL), producing 17 031 measured frames and 297 recorded configurations. Every number below is the median of one configuration's measured frames; every figure is regenerated by docs/assets/bench/chartbench_experiment.py from the CSVs in docs/assets/bench/data/.

One caveat applies to all of them. Absolute frame times move between runs of the same matrix: the largest observed change for an individual configuration across repeated runs on this machine was about 25 %, which is the usual spread of a desktop machine under a sustained load, and it matters here because two of the four libraries occasionally land within a few percent of each other. The orderings and the shapes of the curves were stable across runs; differences below roughly 10 % in the tables that follow should be read as ties.

4.1 Frame time versus sample count

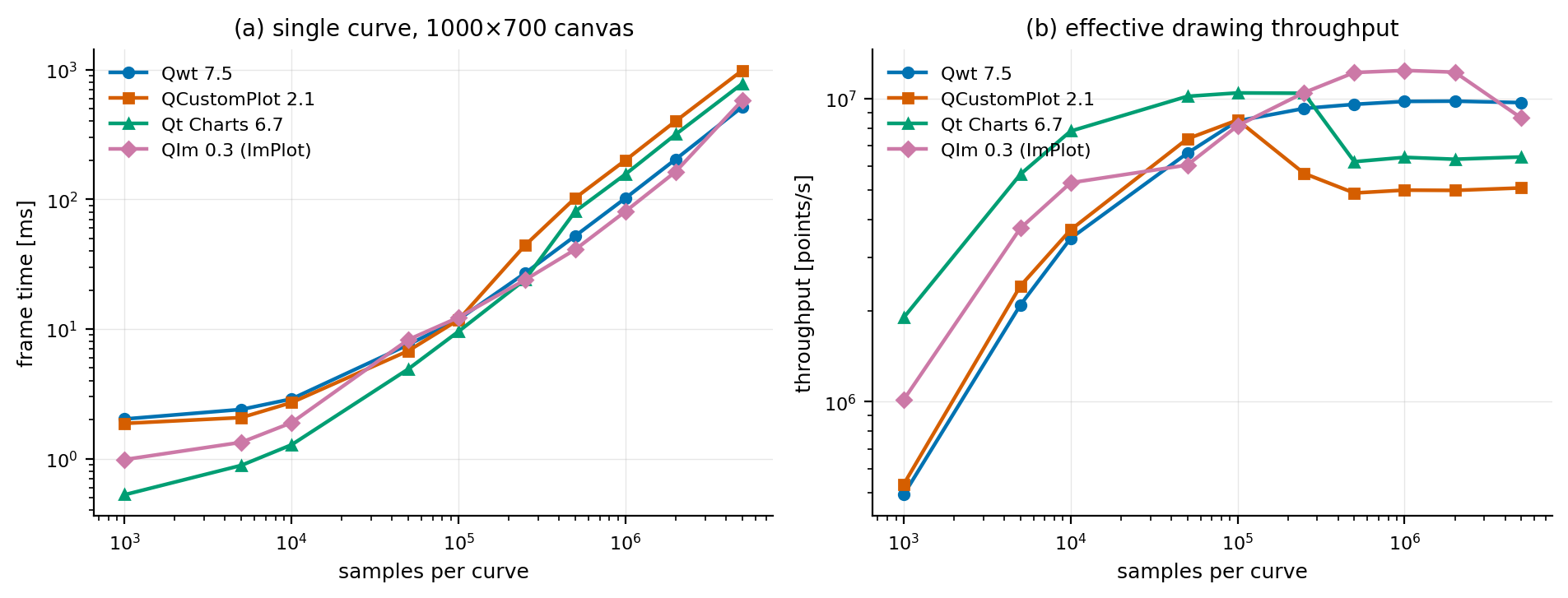

Figure 1 — fig_scaling_points.png. Single curve, 1000×700 canvas, no point reduction. Left: frame time. Right: effective drawing throughput (samples/second).

The ordering depends entirely on \(N\):

\(N\)	Qwt	QCustomPlot	Qt Charts	QIm
1 000	2.025	1.872	0.528	0.985
5 000	2.399	2.076	0.889	1.339
10 000	2.891	2.710	1.280	1.895
50 000	7.570	6.790	4.915	8.281
100 000	11.850	11.770	9.580	12.292
250 000	26.947	44.119	24.011	23.904
500 000	52.239	102.421	80.727	41.029
1 000 000	102.181	200.432	156.248	80.770
2 000 000	203.953	401.643	317.012	163.650
5 000 000	515.598	985.524	778.962	579.485

Table 1 — median frame time in ms, lower is better, bold marks the best of the four. At 250 000 the top two are within 0.5 % of each other, i.e. a tie.

At a thousand samples Qt Charts is 3.8× faster than Qwt and 3.5× faster than QCustomPlot; at five million samples Qwt is 1.9× faster than QCustomPlot, 1.5× faster than Qt Charts and 1.12× faster than QIm. None of the libraries is fast in general; they are fast in different regimes, and an application that looks at one size will pick the wrong one.

The reason is the fixed/marginal split of Section 1.2. Computing the marginal cost per million samples over the two ranges where the sweep is linear separates the constant per-frame cost from the per-sample cost:

Library	\(T\) at 1 000 samples	ms per million (100k→1M)	ms per million (1M→5M)
Qwt	2.025	100.4	103.4
QCustomPlot	1.872	209.6	196.3
Qt Charts	0.528	163.0	155.7
QIm	0.985	76.1	124.7

Table 2 — the same sweep expressed as a per-sample cost. Qwt's marginal cost is flat across both ranges; QIm's rises by 64 % in the upper one.

Qwt's marginal cost is essentially the same in both ranges (100.4 against 103.4 ms/Msample), so its per-sample work is linear and predictable. QIm's rises from 76.1 to 124.7 ms/Msample: its advantage at one million samples (80.8 ms against Qwt's 102.2 ms) has become a disadvantage by five million (579.5 ms against 515.6 ms). The CPU-side vertex expansion described in Section 2.4 eventually meets a memory-bandwidth limit that Qwt's tighter rasterizer loop does not.

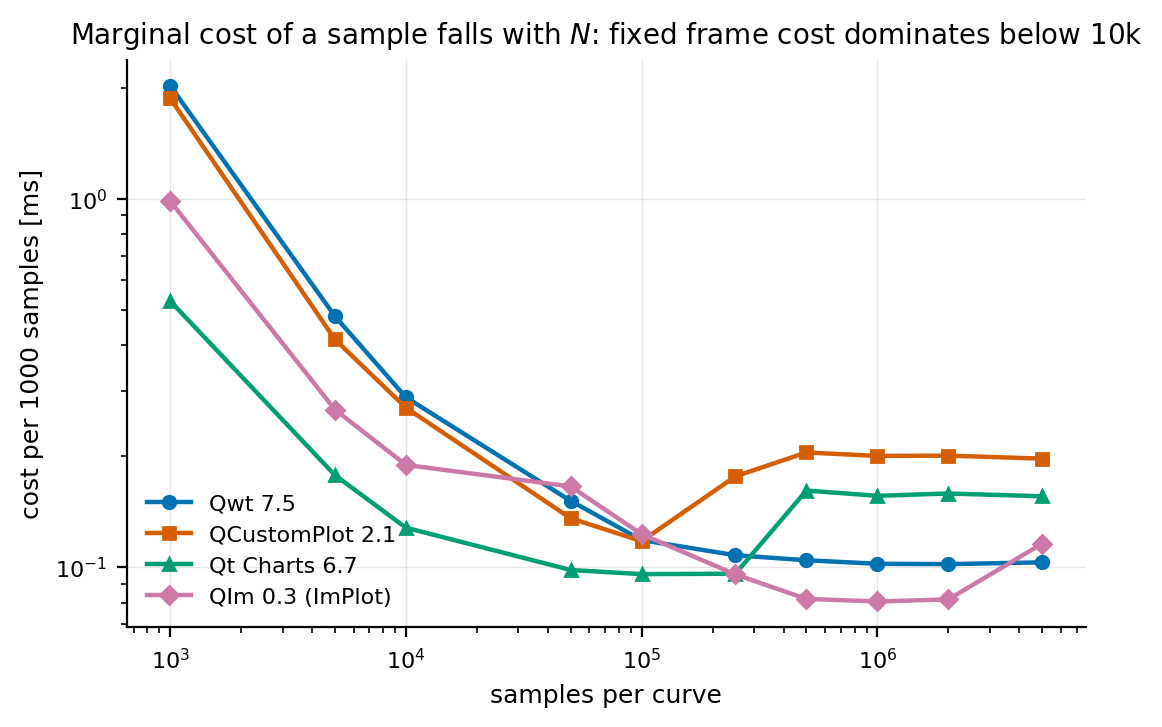

Figure 2 — fig_scaling_per_point.png. Cost per 1000 samples. The steep left part is the fixed cost being amortized; the flat right part is the true per-sample cost.

A power-law fit is a trap here because it produces confident nonsense. Fitting \(\log T = a + p\log N\) over the same data gives exponents of 0.85 (Qwt), 1.01 (QCustomPlot), 1.07 (Qt Charts) and 0.88 (QIm), all with \(R^2 \approx 0.99\). Read literally that says Qwt "scales sub-linearly" and Qt Charts "super-linearly", which contradicts the fact that every library's sweep is within 0.2 % of a straight line (\(T = a + cN\)). Both are true, and the resolution is that they measure different things: over a finite range, a straight line with a positive intercept has a log-log slope below one, while a library whose cost genuinely grows slightly faster than linearly has one above it. The exponent is a property of the fitted range; the fixed/marginal split is a property of the implementation.

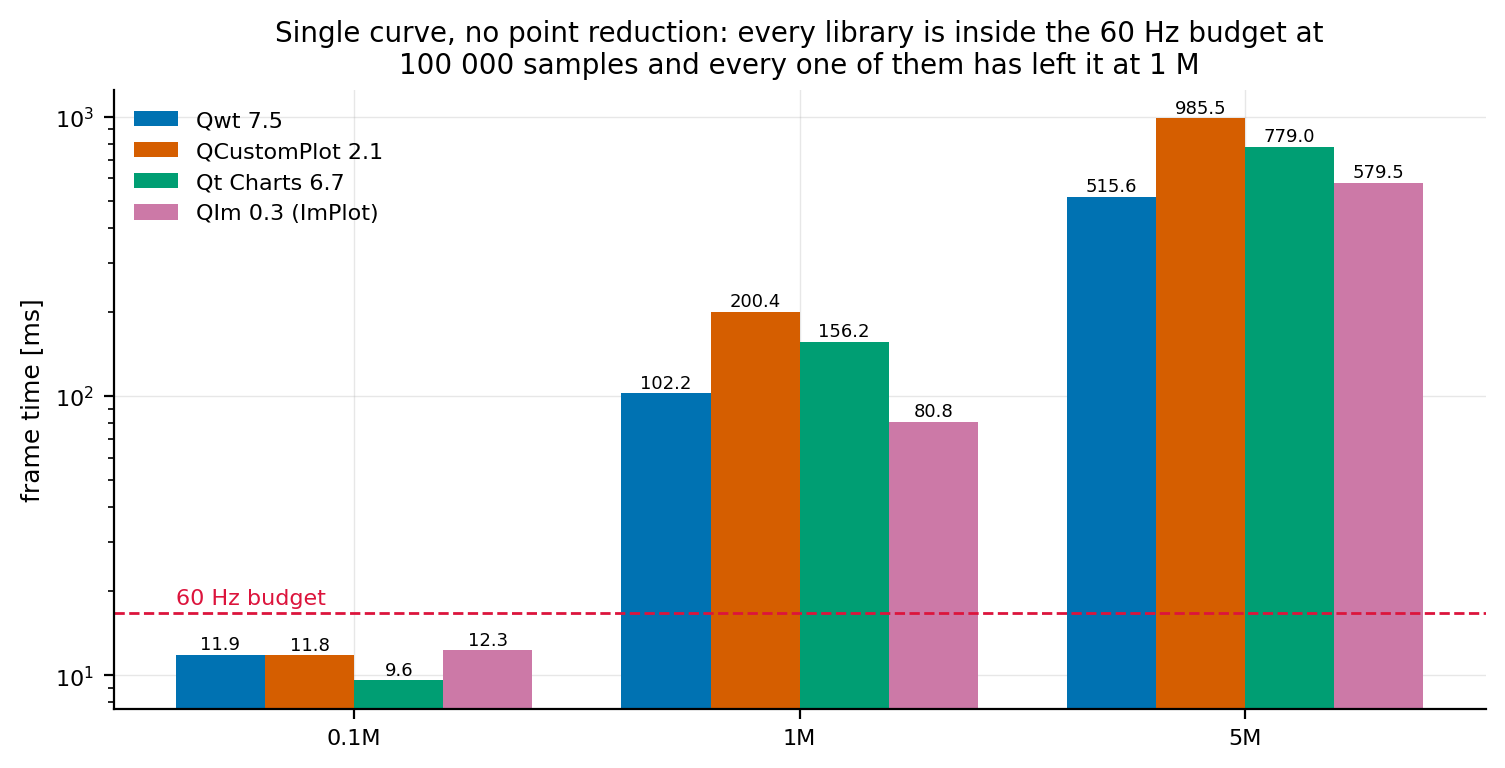

Figure 3 — fig_summary.png. Three reference sizes with the 60 Hz budget drawn in.

The practical reading of Figure 3: all four libraries are inside the 60 Hz budget at 100 000 samples and all four have left it at 250 000 on this machine, and none of them can draw a million samples as given. Up to 100 000 samples the differences between libraries are a fraction of the frame budget; above that the choice of library stops mattering and the choice of reduction (Section 4.5) starts.

4.2 What one more series costs

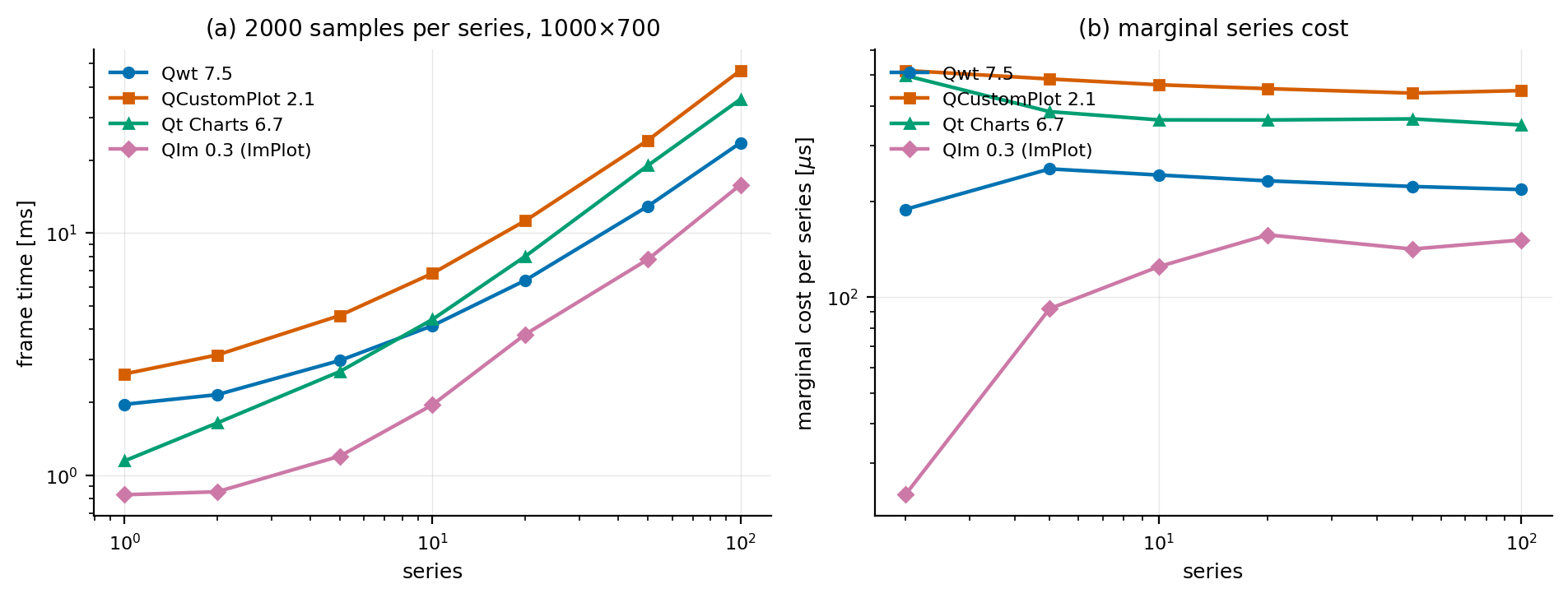

Figure 4 — fig_curve_count.png. 2000 samples per series on a 1000×700 canvas.

series	Qwt	QCustomPlot	Qt Charts	QIm
1	1.963	2.621	1.147	0.832
10	4.144	6.814	4.398	1.955
50	12.889	24.110	18.973	7.776
100	23.554	46.834	35.613	15.814
marginal per series	215.7 \(\mu\)s	444.7 \(\mu\)s	346.8 \(\mu\)s	154.0 \(\mu\)s

Table 3 — median frame time in ms, 2000 samples per series, and the marginal cost of a series measured between 10 and 100 series.

With 20 000 samples spread over 100 series, QIm is 3.0× faster than QCustomPlot and 2.3× faster than Qt Charts; with those same 20 000 samples in one series the four libraries are within 2.3× of each other at 10 000 samples and 4.4× at 50 000 (Table 1). Splitting data into series is not a neutral decision: it moves the workload into the part of each pipeline where per-series overhead lives, a QPainterPath per series for Qwt, a scene item and a path for Qt Charts, a draw-list range for ImPlot.

The marginal column isolates that effect: between 10 and 100 series one more series costs QCustomPlot 445 \(\mu\)s, Qt Charts 347 \(\mu\)s and Qwt 216 \(\mu\)s, against QIm's 154 \(\mu\)s, a 2.9× spread on a quantity that does not depend on the data at all, only on how much per-series bookkeeping a library does per frame.

4.3 Canvas size: fill rate versus geometry

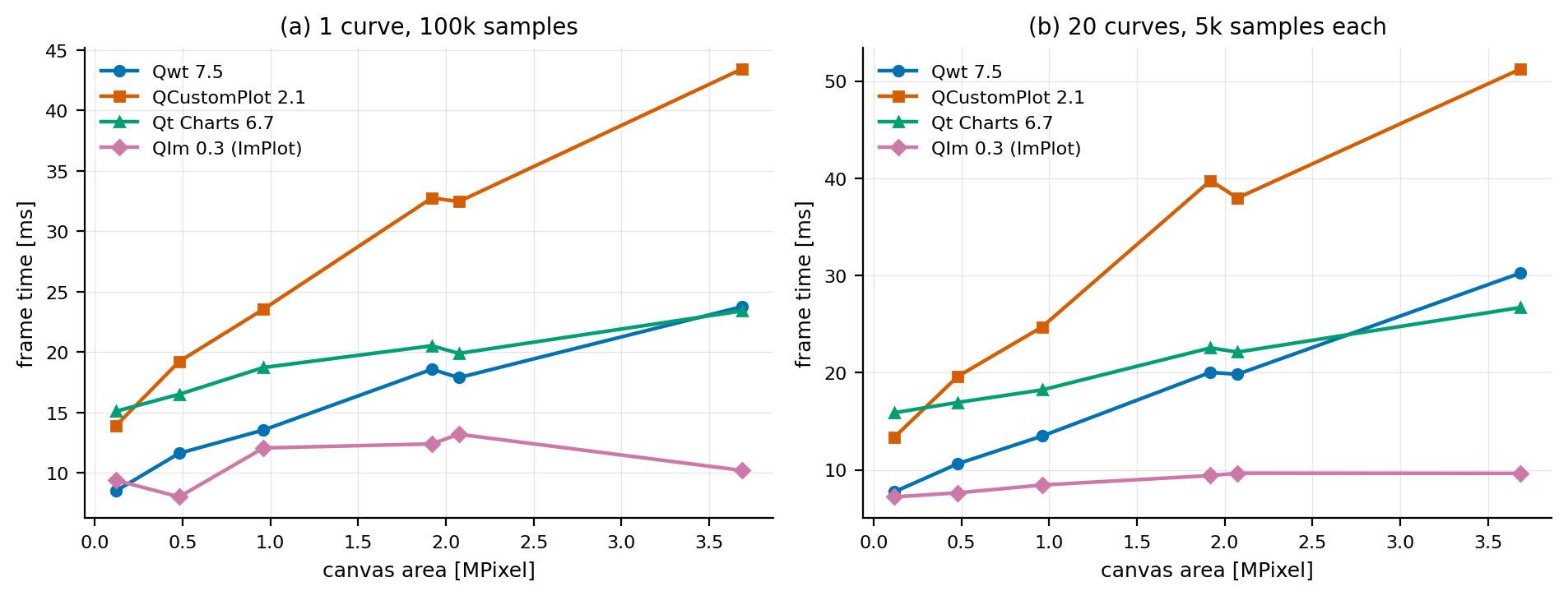

Figure 5 — fig_canvas_size.png. Left: one curve of 100 000 samples. Right: 20 series of 5 000 samples each.

The right-hand panel carries the cleaner signal, because 20 series give the fill-rate term something to do:

canvas	Qwt	QCustomPlot	Qt Charts	QIm
400×300	7.753	13.385	15.889	7.222
1200×800	13.478	24.700	18.226	8.445
1600×1200	20.033	39.768	22.553	9.415
2560×1440	30.254	51.246	26.707	9.640
growth over 30× area	3.90×	3.83×	1.68×	1.33×

Table 4 — median frame time in ms for 20 series of 5 000 samples.

Across a 30× increase in canvas area, Qwt and QCustomPlot grow by almost 4×, Qt Charts by 1.7× and QIm by 1.33×. QIm's frame time at 2560×1440 (9.640 ms) is barely above its frame time at 400×300 (7.222 ms), and it is lower than Qwt's at every canvas size by a factor of 2.4× to 5.3×.

Part of that flatness comes from the protocol: a raster frame measured here includes rasterizing every item into a canvas-sized backing store and blitting that store, while a GL frame measured here ends when the library's own draw commands have executed; Qt's composition of the resulting texture into the window is outside the measurement (Section 6.1). So the raster libraries pay for the canvas twice and the GL library pays for it zero times inside the measured window. What the GL library does pay for is the geometry it submits, which is why QIm's frame time still grows with \(N\) (Table 1) even though it barely grows with the canvas.

The one-curve panel shows the same ordering with a much weaker trend, because a single polyline does not generate enough fill work for the fill-rate term to dominate:

canvas	Qwt	QCustomPlot	Qt Charts	QIm
400×300	8.514	13.908	15.102	9.394
1200×800	13.547	23.546	18.723	12.067
2560×1440	23.756	43.428	23.405	10.211
growth	2.79×	3.12×	1.55×	1.09×

Table 5 — median frame time in ms for one curve of 100 000 samples.

QIm's numbers in Table 5 fluctuate between 8.0 ms and 13.2 ms without a monotone trend; the run-to-run variance noted at the start of Section 4 is visible here, but they never follow the raster libraries upward: at 2560×1440 it needs 10.211 ms where Qwt needs 23.756 ms and QCustomPlot 43.428 ms.

One detail frustrates the naive model that "fewer pixels must be faster": in Table 5, Qwt needs 8.514 ms at 400×300 but 11.628 ms at 800×600 for the same 100 000 samples, and Qt Charts 15.102 ms against 16.506 ms. Compressing 100 000 samples into 400 columns makes the polyline much steeper, and a steeper polyline covers more pixels per segment. Canvas area and geometry density pull in opposite directions, so "shrink the canvas" is not the lever it looks like for a dense line chart.

4.4 Handing over data versus drawing it

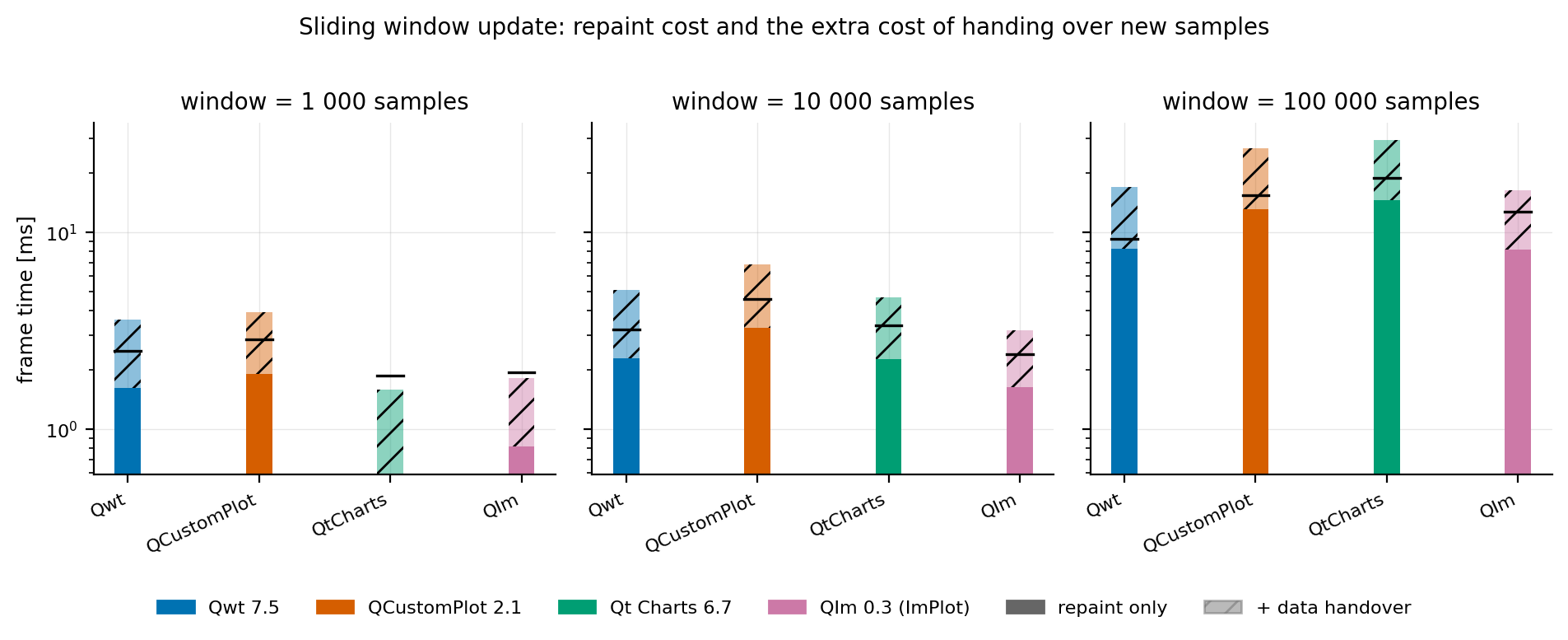

Figure 6 — fig_update_decomposition.png. For each visible window size: the repaint cost of a window-sized series (solid), plus the extra cost of handing over new samples (hatched). The marker is the p95.

visible window		Qwt	QCustomPlot	Qt Charts	QIm
1 000	render	1.616	1.896	0.589	0.814
	handover	0.002	0.007	2.010	0.006
10 000	render	2.278	3.270	2.260	1.625
	handover	0.013	0.096	15.013	0.013
100 000	render	8.261	13.079	14.581	8.144
	handover	0.559	1.137	141.664	0.230

Table 6 — median ms. The render column is the repaint cost of a window-sized series; the handover column is the pure data-handover variant, which performs no repaint at all.

A single-sweep benchmark cannot produce this split. At a 100 000 sample window the libraries spend 8.1 ms to 14.6 ms drawing (a 1.8× spread) but they spend 230 \(\mu\)s to 141.7 ms handing the data over, a 616× spread. For a 60 Hz application the handover is a per-frame budget item: 1.4 % of a 16.7 ms frame for QIm, 3.3 % for Qwt, 6.8 % for QCustomPlot and 848 % for Qt Charts.

The three fast libraries all accept a block of samples and copy it. Qt Charts has no such entry point: QXYSeries offers only replace(const QList<QPointF>&), so the caller builds 100 000 QPointF objects and the library then does whatever it does with them. A standalone probe (examples/bench/chartbench/qtcharts_handover_probe.cpp) splits that step:

\(n\)	build QList<QPointF>	QXYSeries::replace()	two QValueAxis::setRange()	total
100 000	0.73 ms	48.65 ms	25.55 ms	74.93 ms
1 000 000	6.62 ms	420.68 ms	269.91 ms	697.21 ms

Table 7 — the Qt Charts handover in isolation, chart live in a shown QChartView.

The data copy everyone blames is the cheapest part: 0.73 ms out of 74.93 ms. The cost is in what Qt Charts does around the data, and it depends on being live in a view: the same replace() call costs 1.88 ms for the same 100 000 points when the chart is not displayed. The handover column of Table 6 is the end-to-end cost of the API an application must use, and an application that updates a Qt Charts series at 60 Hz cannot do it at 100 000 samples.

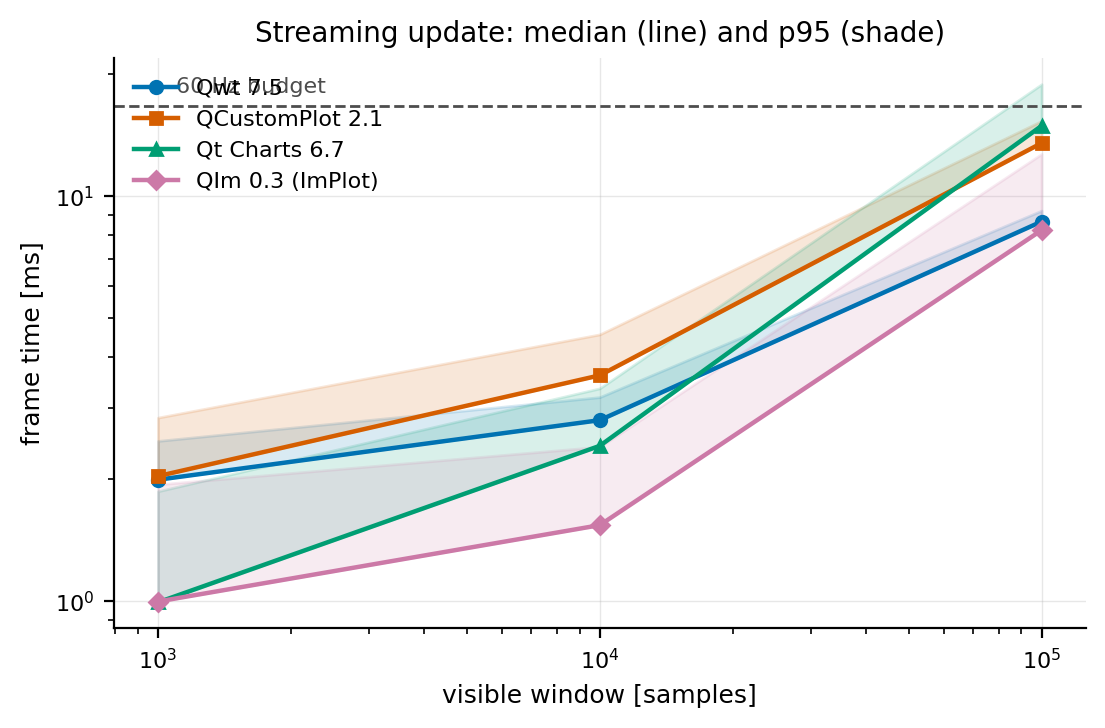

Figure 7 — fig_streaming.png. Update plus repaint in one frame, as a function of the visible window; the shading is p95.

At a 1 000 sample window (a 60 Hz-capable workload for three of the four libraries) QIm needs 1.004 ms of the 16.7 ms budget and Qt Charts 3.115 ms, i.e. 6.0 % and 18.7 %. At 10 000 samples Qt Charts has already left the budget (16.818 ms, 100.7 %) while QIm needs 1.572 ms (9.4 %). At 100 000 samples only QIm (8.613 ms, 51.6 %) and Qwt (9.332 ms, 55.9 %) stay inside the budget.

4.5 Point reduction: what it costs and what it preserves

Figure 8 — fig_downsample_time.png. Every reduction strategy each library offers, at one million samples.

library	strategy	frame time	vs. none
Qwt	none	102.990 ms	1.00×
Qwt	FilterPoints	107.405 ms	0.96×
Qwt	FilterPointsAggressive	17.259 ms	5.97×
Qwt	FilterPointsLTTB	13.108 ms	7.86×
Qwt	FilterPointsPixel	9.973 ms	10.33×
Qwt	FilterPointsMinMaxLTTB	5.200 ms	19.8×
QCustomPlot	none	190.294 ms	1.00×
QCustomPlot	adaptive sampling	6.163 ms	30.9×
Qt Charts	none (nothing available)	161.798 ms	1.00×
QIm	none	79.266 ms	1.00×
QIm	MinMaxLTTB	1.839 ms	43.1×
QIm	LTTB	1.387 ms	57.2×
QIm	Auto	1.277 ms	62.1×

Table 8 — median frame time at one million samples. "vs. none" is that library's own speedup.

The cheapest reduction is not the weakest one. Qwt's FilterPoints, the classic "drop duplicates and off-screen points" filter, is measurably slower than drawing everything: 107.405 ms against 102.990 ms. It walks the data, finds nothing to remove in a dense, in-range series, and the frame is drawn unchanged. It is the only strategy in the table that buys nothing, and the fidelity metrics below confirm it pixel for pixel.

Reduction beats the choice of library by two orders of magnitude. With reduction off, the four libraries span 2.4× (79.3 ms to 190.3 ms). With each library's best reduction the span is 4.8× (1.277 ms for QIm to 6.163 ms for QCustomPlot); against Qt Charts, which has no reduction to offer at 161.8 ms, QIm's Auto is 127× faster. Everything else measured here is a constant factor; this is the only lever with two orders of magnitude in it.

QIm's Auto is the fastest configuration measured anywhere at this size: 1.277 ms per frame for a million samples, 62× faster than its own unreduced path. It is also the library's default: QIm's downsampling controller switches to MinMaxLTTB above 100 000 samples without being asked, which means a naive QIm benchmark measures the reduced path unless it explicitly disables it.

Figure 9 — fig_fidelity_pareto.png. Each library's strategies placed by frame time (x) and pixel deviation from that library's own full-resolution render (y). The lower left corner is "fast and faithful".

Figure 10 — fig_fidelity_metrics.png. The three fidelity metrics of Section 3.6 for every strategy at one million spiky samples.

library	strategy	changed pixels	worst column span	retained ink
Qwt	FilterPoints	0.00 %	0.000	1.000
Qwt	FilterPointsAggressive	3.41 %	0.276	0.394
Qwt	MinMaxLTTB	5.56 %	0.274	0.821
Qwt	LTTB	5.91 %	0.274	0.695
Qwt	FilterPointsPixel	8.40 %	0.330	1.233
QCustomPlot	adaptive sampling	6.92 %	0.311	0.915
QIm	LTTB	4.45 %	0.263	0.806
QIm	MinMaxLTTB / Auto	5.44 %	0.286	0.618

Table 9 — fidelity against each library's own full-resolution render, one million spiky samples. A "changed pixel" is one whose largest channel difference exceeds 16/255.

The metrics separate the strategies into exactly the two families the theory predicts, and this is the part of the experiment that could not have been guessed from timing alone:

• Envelope-preserving strategies draw more ink than the full-resolution render, because they replace a dense cluster of samples by a vertical stroke covering the same range: FilterPointsPixel retains 1.233× the ink, and Qwt's MinMaxLTTB 0.821× with a span_ratio of 0.274, meaning some pixel column's pixels moved by more than a quarter of the image height. Their changed_frac is the lowest of the reducing strategies (3.4 %–8.4 %).
• Peak-dropping strategies draw less: Qwt's FilterPointsAggressive retains only 0.394× of the ink and QIm's MinMaxLTTB 0.618×. The peaks are still there as pixels, but thinner and shorter; the envelope shrank, which is precisely the failure mode the downsampling theory warns about.
• FilterPoints is pixel-identical (0.00 % changed, ink ratio 1.000): with nothing to remove, the render is bit-for-bit the unreduced one, which is consistent with its frame time being no better than no reduction at all.

The practical consequence is that "fastest at one million samples" and "most faithful at one million samples" are not opposites. Qwt's MinMaxLTTB is the second-fastest strategy in the table and among the more faithful, while the strategy that preserves the most ink (FilterPointsPixel) is also the one that changes the most pixels. In Figure 9 the Pareto front, the lower-left frontier, runs through QIm's Auto/LTTB, Qwt's MinMaxLTTB and QCustomPlot's adaptive sampling; the strategies outside it are dominated on both axes.

Figure 11 — fig_downsample_visual.png. The region of worst disagreement between the full-resolution and the reduced render, cropped and magnified, for three libraries.

4.6 Frame-time stability

Figure 12 — fig_jitter_ecdf.png. Empirical distribution of 300 consecutive frame times.

library	variant	p50	p95	p99	max	std
Qwt	static, 100k	8.14	8.78	9.45	10.33	0.40
Qwt	streaming, 10k window	2.75	3.55	4.10	5.03	0.35
QCustomPlot	static, 100k	12.98	15.30	17.14	19.79	1.58
QCustomPlot	streaming, 10k window	3.23	4.76	6.96	9.46	0.95
Qt Charts	static, 100k	14.31	17.45	20.10	22.34	2.58
Qt Charts	streaming, 10k window	2.34	3.17	4.16	4.61	0.48
QIm	static, 100k	7.77	10.42	17.04	18.55	1.84
QIm	streaming, 10k window	1.62	2.78	10.29	12.80	1.30

Table 10 — percentiles of 300 frames in ms. The static variants show 100 000 samples of a random walk; the streaming variants a 10 000 sample window sliding over a 100 000 sample buffer. All four static medians are higher than the corresponding single-curve numbers in Table 1 because the walk signal spans the whole canvas height in every column.

The medians rank the libraries the way the rest of the measurements do, but the tails say something else, and for a control loop the tails are what matters:

• QIm wins the median and loses the tail. Its static p50 is 7.77 ms, the lowest of the four, and its streaming p50 is 1.62 ms with a p95 of 2.78 ms. But its static p99 is 17.04 ms against Qwt's 9.45 ms, and its worst frame in 300 took 18.55 ms against 10.33 ms. A GL frame contains work whose completion time is not the application's to control (driver batching, composition scheduling), and it shows up as a fat right tail.
• Qwt trades a worse median for the tightest spread: 8.14 ms to a worst frame of 10.33 ms is 1.27×, against 1.52× for QCustomPlot, 1.56× for Qt Charts and 2.39× for QIm. If a deadline matters more than the average, Qwt is the more predictable renderer.
• Streaming shortens the median and stretches the tail. All four libraries show it, and QIm shows it most: its streaming p50 falls to 1.62 ms while its p99 stays at 10.29 ms, so its p99/p50 ratio grows from 2.2× to 6.4× and its max/p50 ratio from 2.4× to 7.9×. The update path of Section 4.4 is variable even when it is cheap on average, and a budget built on the streaming median would be wrong by an order of magnitude at the deadline.

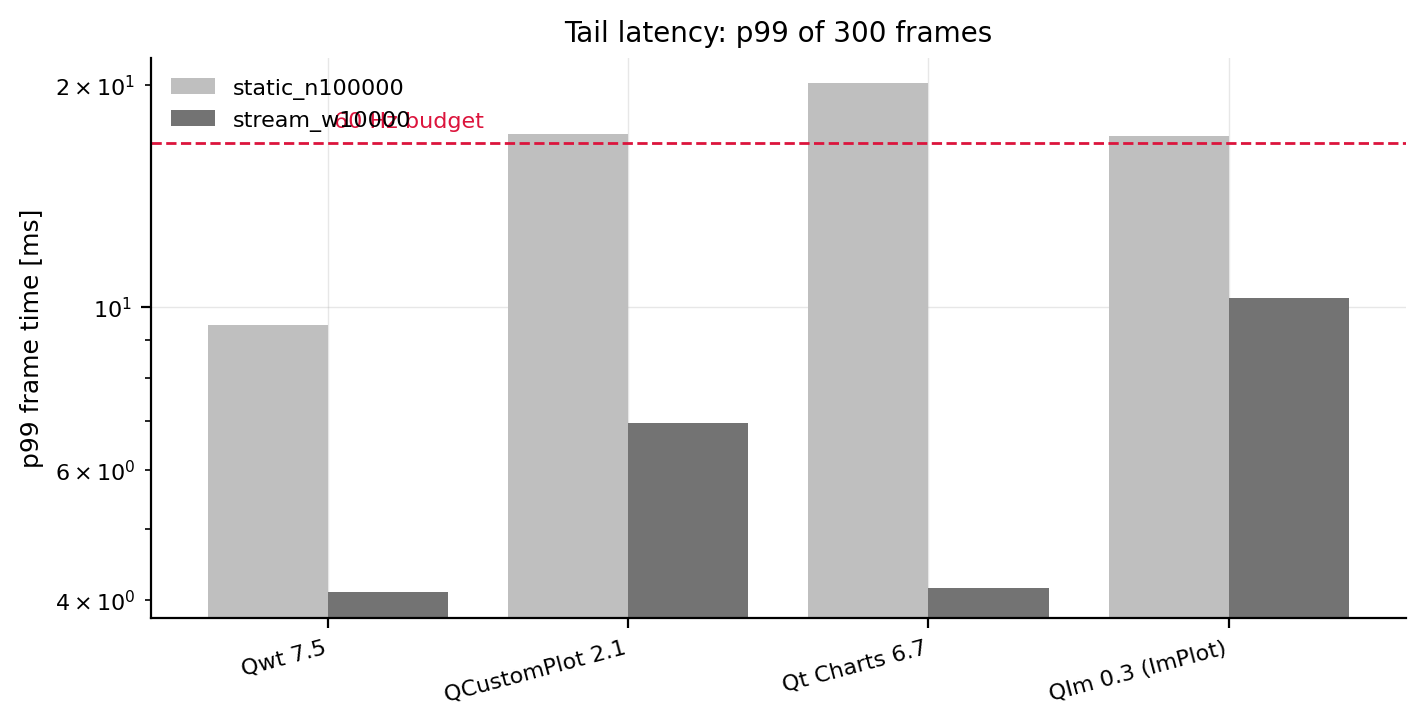

Figure 13 — fig_jitter_tail.png. p99 of 300 frames against the 60 Hz budget.

Only two configurations in Figure 13 sit inside the 60 Hz budget at p99: Qwt's 10 000-sample streaming window (4.10 ms) and Qt Charts' 10 000-sample streaming window (4.16 ms). A static 100 000-sample chart misses the budget at p99 in every library, including the fastest one.

4.7 Memory per sample

Figure 14 — fig_memory.png. Private bytes added by the library, measured against a baseline taken after the input data exists. Left: absolute. Right: per sample.

library	1 000	100 000	1 000 000	10 000 000	100 series × 10 000
Qwt	2 800 B	59.1 B	20.9 B	27.3 B	29.7 B
QCustomPlot	4 897 B	72.8 B	20.9 B	16.6 B	22.4 B
Qt Charts	776 B	271.3 B	337.8 B	285.0 B	286.2 B
QIm	37 623 B	797.0 B	427.9 B	291.3 B	178.7 B

Table 11 — bytes of private memory per sample.

The theoretical floor is 16 bytes per sample (two doubles), and the two libraries that store arrays reach it once the data dominates the widget's own footprint: 16.6 bytes for QCustomPlot and 20.9 bytes for Qwt at a million samples, and QCustomPlot is even closer at ten million because its container's overhead amortizes. Qt Charts and QIm do not converge (285.0 B and 291.3 B at ten million), which is one to two orders of magnitude above the floor. For Qt Charts that is the QList<QPointF> plus its scene items; for QIm it is the retained-mode node tree, which keeps a QImPlotLineItemNode and its own copy of the data per series. At 100 series the difference is unmistakable: Qt Charts needs 272.9 MB where QCustomPlot needs 21.4 MB for the same one million points.

The small-\(N\) column is not noise either; it is the fixed footprint of the plot widget itself. QIm's 37.6 kB at 1000 samples is the ImGui context, the ImPlot context and the font atlas, and it is consistent with the 78 ms first frame in Section 4.8. Qt Charts needs 776 B at the same size; a scene graph costs almost nothing until there is data to store.

4.8 Startup cost

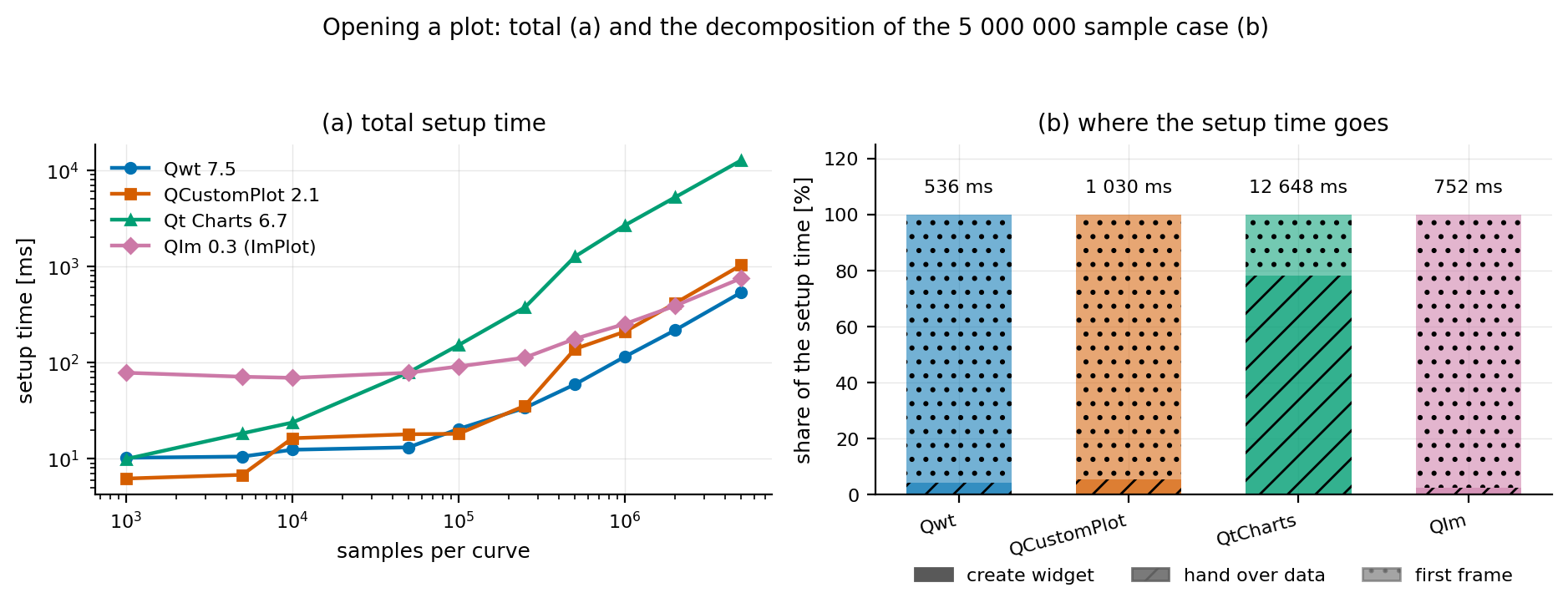

Figure 15 — fig_setup_time.png. Left: total time from "create the plot" to the first finished frame. Right: the decomposition at the largest measured size.

\(N\)		Qwt	QCustomPlot	Qt Charts	QIm
1 000	create	1.5	0.1	1.0	0.2
	handover	0.07	0.04	1.7	0.04
	first frame	8.7	6.1	7.3	78.1
10 000	create	2.2	0.1	1.2	0.2
	handover	0.1	0.3	12.3	0.04
	first frame	10.1	16.0	10.4	69.2
100 000	create	2.1	0.1	1.2	0.3
	handover	0.6	1.0	112.2	0.5
	first frame	17.8	17.2	38.7	90.4
1 000 000	create	1.0	0.1	1.5	0.3
	handover	3.9	10.4	2 075.0	5.7
	first frame	110.4	199.3	597.1	246.5
5 000 000	create	1.1	0.1	1.4	0.3
	handover	21.0	55.7	9 900.2	18.9
	first frame	514.0	974.3	2 746.4	733.3

Table 12 — ms, decomposed. The total is the setup column of the raw CSV.

The first frame dominates everywhere (it contains the first full rasterization plus, for several libraries, one-off allocations), but the handover row separates the libraries at scale. Qt Charts needs 9.9 seconds to accept five million samples against Qwt's 21.0 ms, a factor of 470, and the probe in Section 4.4 shows where the time goes. Opening a large file is exactly the moment when a user is waiting, and it is the one moment where Qwt, QCustomPlot and QIm are all within an order of magnitude of each other (21.0 ms, 55.7 ms, 18.9 ms).

The first-frame row is where QIm's architecture shows its one real weakness: 69–78 ms of first-frame work for a plot of ten thousand samples or fewer, against 6–18 ms for the other three. The ImGui and ImPlot contexts and the font atlas are built before anything can be drawn. It amortizes immediately: by 100 000 samples QIm is the second cheapest first frame and by one million the cheapest, but an application that opens many small charts pays it repeatedly.

4.9 Raster versus OpenGL

Figure 16 — fig_backend.png. The two libraries that offer both backends, identical data and canvas.

\(N\)	Qwt raster	Qwt GL	ratio	QCustomPlot raster	QCustomPlot GL	ratio
1 000	2.025	1.669	0.82	1.872	16.067	8.58
10 000	2.891	2.795	0.97	2.710	17.908	6.61
100 000	11.850	16.693	1.41	11.770	32.240	2.74
250 000	26.947	39.258	1.46	44.119	43.154	0.98
500 000	52.239	67.912	1.30	102.421	76.358	0.75
1 000 000	102.181	140.210	1.37	200.432	128.322	0.64
5 000 000	515.598	774.786	1.50	985.524	593.822	0.60

Table 13 — median frame time in ms; the ratio is GL divided by raster, so below 1.0 means the GL path won.

Two libraries that offer both backends behave in opposite ways. Qwt's GL canvas is faster for small plots (0.82× at 1 000 samples, 0.97× at 10 000) and then loses at every larger size, by 1.30–1.50×. It carries no large fixed GL penalty, but its per-sample cost is higher: the same QPainter drawing through QOpenGLPaintDevice has to tessellate the polyline into triangles on the CPU before the GPU sees it, and for one long polyline that is strictly more work than rasterizing it.

QCustomPlot's GL paint buffer is the opposite: a ~16 ms fixed cost, 8.6× its own raster path at 1 000 samples, which pays off at scale. It overtakes its raster backend between 100 000 and 250 000 samples and reaches a 1.66× win at five million samples. Its crossover is roughly an order of magnitude earlier than Qwt's, because the two GL paths are different designs: Qwt paints through QOpenGLPaintDevice onto a widget FBO, QCustomPlot paints into its own FBO-backed paint buffer chosen at compile time.

Neither result supports "turn on OpenGL for line plots". They support a crossover rule: GL wins when the per-frame geometry work is large enough to amortize its fixed cost. They also show that where that crossover is depends on the implementation, not on the fact that it uses the GPU: 100 000 samples for one library, never for the other.

The glFinish wait that the harness records separately (gpu_sync_ms) explains why the two GL paths behave so differently:

\(N\)	Qwt GL frame	of which glFinish	QIm frame	of which glFinish
1 000	1.669	1.610	0.985	1.190
10 000	2.795	2.413	1.895	1.761
100 000	16.693	5.672	12.292	10.153
500 000	67.912	0.698	41.029	23.334
1 000 000	140.210	0.614	80.770	46.797
5 000 000	774.786	0.551	579.485	495.988

Table 14 — median frame time and the mean glFinish wait inside it, ms. The wait is the time the GPU still needed after the library finished submitting.

Qwt's GL canvas is CPU bound: at 500 000 samples and above, glFinish returns in under a millisecond because the CPU had been busy for tens of milliseconds tessellating the polyline through QOpenGLPaintDevice and the GPU had finished long before. QIm is GPU bound at the same sizes: at five million samples 496 ms of a 579 ms frame is waiting for the GPU to rasterize the geometry ImPlot submitted, and even at one million samples the wait is 47 ms of 81 ms. The two libraries use the GPU in opposite ways, one to keep the CPU as the bottleneck and one to make the GPU the bottleneck, and neither is faster overall for a single line chart.

(The QCustomPlot GL adapter issues glFinish as well but, unlike the other two, does not record the wait separately; it is included in its frame time.)

4.10 The same data, drawn by all four

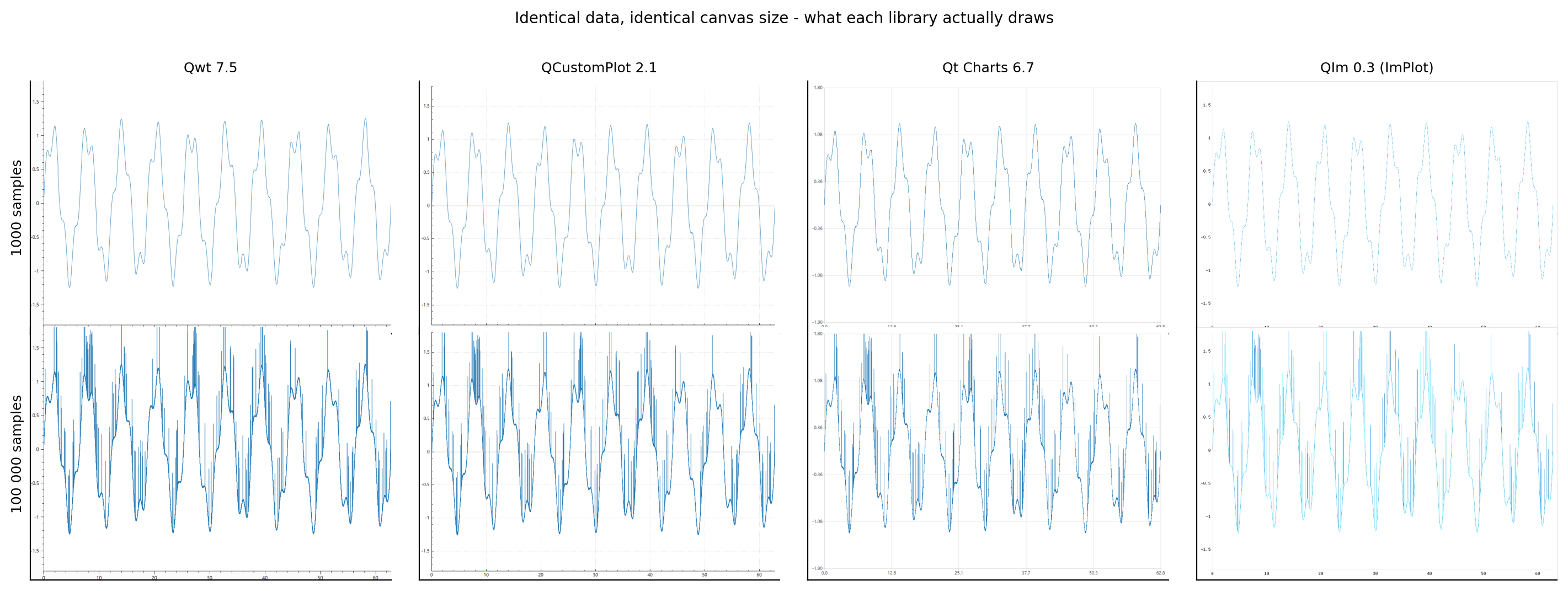

Figure 17 — fig_render_comparison.png. Identical data, identical canvas size, each library's own full-resolution render (exported by the harness).

The layouts differ (margins, tick label sizes, the shade of the axes), which is why Section 3.6 measures fidelity against each library's own render rather than across libraries. What the figure also shows is that the pixel budget differs:

library	ink at 1 000 samples	ink at 100 000 samples
Qwt	0.784 %	4.382 %
QCustomPlot	0.706 %	5.431 %
Qt Charts	1.385 %	5.017 %
QIm	0.287 %	1.401 %

Table 15 — fraction of canvas pixels below the ink threshold, i.e. how much of the canvas each library's own rendering of the same data covers.

For the same curve Qt Charts puts 4.8× more ink on the canvas than QIm does at 1 000 samples (1.385 % against 0.287 %) and 3.6× more at 100 000 samples. Two libraries with the same median frame time are not necessarily drawing the same amount of picture, and a reader comparing screenshots across libraries is comparing line widths and plot-area fractions as much as renderers.

5. Discussion

5.1 The three regimes

The measurements in Section 4 do not produce a single ranking, they produce three regimes with different winners, and the boundaries between them are set by which cost term dominates:

Regime 1, small charts (\(N \lesssim 10^4\), few series). Every library fits in the 60 Hz budget with a wide margin, and the ranking is decided by \(T_{\text{compose}} + T_{\text{transform}}\) at zero load, i.e. by fixed per-frame overhead. Here the GL-based library wins and the difference between the three QPainter libraries is small. For an application that draws a handful of small charts, this regime is the realistic one, and the practical conclusion is that frame time is not the criterion; pick on API, features and licensing.

Regime 2, large static charts (\(N \gtrsim 10^5\), data rarely changes). Here the per-sample transform and rasterization dominate, the ordering between the QPainter libraries is decided by how efficiently each converts \(N\) samples into a polyline, and the GL library's advantage shrinks to the CPU vertex expansion it still has to do. This is the regime where the reduction strategy starts to matter more than the library, because a reduction can remove an order of magnitude of work while no amount of pipeline tuning can.

Regime 3, large dynamic charts (\(N \gtrsim 10^5\), data changes every frame). Now \(T_{\text{handover}}\) is paid per frame and adds to everything else. The ranking is decided by how expensive the library's data API is, and the spread here is much larger than in the rendering itself, because the APIs differ in kind, not just in constant: two libraries accept contiguous double arrays, one stores its samples in a sorted per-point container that the caller cannot hand over as a block, and one requires the caller to construct a list of QPointF objects. Section 4.4 quantifies this; it is the measurement most likely to change a design decision, because it is invisible in a "replot time versus N" chart.

5.2 Point reduction is the only lever with an order of magnitude in it

The most useful ratio here is the one between "draw the data as given" and "draw the data after the library's own reduction" at one million samples. No amount of pipeline tuning (raster versus GL, one library versus another) comes close to it, and the fidelity experiment shows that the cheapest reductions are not the least faithful ones. Two consequences:

• A comparison that leaves reduction at each library's default is not comparing libraries, it is comparing defaults, and the defaults are not comparable either. Qwt 7.5 enables LTTB reduction unconditionally (Section 2.1), QIm enables MinMaxLTTB above 20 000 samples, QCustomPlot enables adaptive sampling once the data exceeds two points per pixel column, and Qt Charts has no reduction to enable. The same library can be the fastest or the slowest of the four depending on one attribute (Qwt), one setter (QCustomPlot, QIm), or one canvas width (QCustomPlot's density trigger).
• The libraries that cannot reduce (Qt Charts has no equivalent) have a hard ceiling at large \(N\) that no other choice can lift. For a Qt Charts application with million-point series, the fix is architectural: reduce outside the library, or window the data.

The fidelity results also explain why the algorithms differ, and the explanation is the same one the downsampling theory predicts: a bucket sampler that keeps min and max preserves the vertical envelope of every pixel column by construction, while a sampler that keeps "the first and last point of the bucket" loses narrow peaks. The measured span_ratio and ink_ratio separate the strategies into exactly those two families.

5.3 When the GPU helps, and when it does not

The backend comparison is the clearest negative result here. For a single thin polyline the GL canvas of both Qwt and QCustomPlot is slower than the raster canvas in the low-load region, because the GL path pays a fixed per-frame cost (context/FBO/paint-device setup, composition) that the raster path does not have, and the polyline itself is short enough that rasterizing it on the CPU is not the bottleneck. The GL path only becomes competitive when the per-frame geometry work is large (many series, large canvases, heavy antialiasing), which is the same crossover the raster versus OpenGL report derives for Qwt alone, now confirmed on a second library with an independently implemented GL paint buffer.

For a line chart, therefore, "turn on OpenGL" is not a performance strategy. It is a strategy for very specific workloads, and the measurements tell you which: the GL advantage appears in the same configurations where the raster engine's per-segment work dominates, not where the transform dominates.

5.4 A practical decision table

Situation	Recommendation	Why (measured)
Dashboards, many small charts, < 10k samples each	Any; prefer the one whose API fits	All four are far inside the frame budget; differences are sub-millisecond
One big static chart, zoom/pan, 100k–10M samples	Qwt or QIm with reduction enabled	Both reduce to a pixel-aware budget; the reduction dominates the frame time
Streaming, data replaced every frame	Qwt or QIm; keep the visible window small	Lowest handover cost per sample; window size, not total data, sets the frame time
Many series (≥ 20)	Avoid Qt Charts	Per-series overhead is the largest of the four
Million-point series without changing the library	Not possible with Qt Charts; reduce before the series	No built-in reduction and the highest handover cost
Memory-constrained device	Qwt, QCustomPlot or QIm for raw storage; avoid many small Qt Charts series	Per-sample storage and per-series overhead differ measurably
Frame-time stability matters (control loops)	Prefer a raster library for small charts	GL frames add the composition path's variance
Need GPU acceleration for heavy geometry	Qwt or QCustomPlot GL canvas; verify the crossover on your hardware	GL wins only when per-frame geometry work is large

5.5 What the numbers say about the APIs

The data model also decides three costs a plotting library imposes on an application (per sample stored, per sample handed over, per sample drawn), and it is usually the part of the API that cannot be changed later:

• A library that stores double arrays (Qwt, QIm) has a cheap handover and a small footprint, and can be fed from a ring buffer or a memory-mapped file.
• A library that stores sorted per-point records (QCustomPlot) pays for the convenience of an ordered, iterable container: a per-point insertion cost on top of the copy.
• A library that stores QPointF objects (Qt Charts) pays for both handover and footprint, and its API gives the caller no way to avoid the conversion.

For a chart that updates at 60 Hz, the per-sample handover cost multiplied by the update rate is a budget item as real as the frame time itself, and it is the item that most benchmarks omit.

6. Threats to validity and negative results

6.1 What the protocol deliberately excludes

Every frame measurement starts when the library is asked for a frame and ends when the frame's pixels exist: in the library's own buffer for the raster libraries, in the framebuffer for the GL ones. The steps that follow (backing store flush, DWM presentation) are excluded for all four. This is a choice with consequences:

• The numbers answer "how much CPU/GPU work does one frame cost", not "what frame rate does the user see". For the raster libraries the two are close (presentation is asynchronous and pipelined); for the GL libraries the visible frame rate additionally depends on Qt's composition thread and on the GPU driver's queue depth.
• Because glFinish() is part of the GL frame, the GL numbers include GPU execution. Without it they would measure command submission only. The harness records the glFinish wait separately (gpu_sync_ms) so that the reader can see how much of a GL frame is GPU time, and the answer is most of it for one library and almost none of it for the other (Table 14), which is the difference between a CPU-bound and a GPU-bound renderer. Without that column two very different pipelines would look like the same number.

6.2 Qt Charts OpenGL series: a measured negative result

Qt Charts offers QXYSeries::setUseOpenGL(true), and its frame time would belong next to the raster path. It cannot be measured with a synchronous frame protocol, and the failure is not a timing artefact: the series never reach the framebuffer.

The harness first tried the same trick as for the other GL libraries: a QOpenGLWidget viewport for the QChartView plus a synchronous repaint. The frame time collapsed to 0.001 ms and the exported image showed no curve. A second attempt used QOpenGLWidget::grabFramebuffer() on the viewport, which forces a full GL composition including a readback: the frame time became plausible (3.3–4.7 ms at 100 000 samples) but the image was still empty. Pixel coverage of the curve region, measured with chartbench_fidelity.py:

Qt Charts backend	curve ink (1M spiky samples)
raster (QGraphicsScene + QPainter)	0.0586
OpenGL (setUseOpenGL(true), forced composition)	0.0009

0.0009 is the axis ink; the series contributes nothing. Qt Charts renders GL series during the backing store flush, and a synchronous frame protocol never reaches that state. The adapter therefore refuses the OpenGL backend instead of reporting a number for a frame that draws nothing, and Qt Charts appears here with its raster path only. A reader who needs GL-accelerated series should verify on their own Qt version that the series actually appear before trusting any speedup.

6.3 Two build workarounds, and why they do not affect the comparison

QCustomPlot 2.1.0 does not compile with Qt 6.7 unmodified. It declares its QCP namespace as a class under Q_MOC_RUN to obtain enum reflection; Qt 6's moc emits QtPrivate::TypeAndForceComplete<QCP, ...> for that construct, which fails because QCP is a namespace in the real compilation. The copy in the example carries the minimal fix (a real namespace plus Q_NAMESPACE), which is what upstream QCustomPlot 2.1.1 does. The patch touches no rendering code (it changes how the enum meta objects are declared), so the measured frame times are unaffected. A reader compiling 2.1.0 against Qt 6 will hit the same error.

QIm 0.0.3 needed a forced include. src/core/plot/QImPlotValueTrackerNode.h uses QPointF without including <QPointF>, which Qt 6.7 no longer provides transitively. At measurement time the example compensated with a force-included compatibility header rather than patching the submodule; the fix has since gone upstream and the pinned revision carries it, so the workaround is gone.

6.4 The Qt Charts frame operation differs slightly

As explained in Section 3.2, Qt Charts frames are produced with QGraphicsView::render() rather than viewport()->repaint(). The difference is the viewport blit, a sub-millisecond constant on a 1000×700 canvas, and it is omitted for Qt Charts only. At the sizes where Qt Charts is competitive (small \(N\)) this is the largest single deviation here; the reader should treat sub-millisecond differences between Qt Charts and the other libraries as within the noise of the protocol.

6.5 Antialiasing is on everywhere, and that is a decision

All four libraries draw with antialiasing enabled and a 1 px pen, which is the common default and the realistic configuration for a data plot. Antialiasing is not a constant across the pipelines: for the CPU raster engine it multiplies the per-segment cost (edge coverage computation), for ImPlot it changes the per-segment quad from 4 vertices to a textured thick line, and for Qt Charts it is a QPainter render hint on the whole scene. This comparison therefore does not cover "AA on versus AA off" across libraries; that would be a separate study.

6.6 The harness's own cost is included in the handover measurements

t_update covers the call the library requires: for Qwt and QIm it is a copy of the window into the library's container, for QCustomPlot a copy into its container, and for Qt Charts the construction of the QList<QPointF> that its API demands. That last one is not a harness artefact (Qt Charts offers no raw-array entry point), but it does mean the handover comparison measures the API's cost, not a hypothetical zero-copy path. Section 4.4 states this explicitly where it matters.

7. Conclusion

Comparing four Qt plotting libraries along eight dimensions instead of one changes the answer to "which is fastest" from a ranking into a set of regimes: fixed per-frame overhead decides charts of a few thousand samples, the per-sample transform and rasterization decide large static charts, and the data API decides large charts that change every frame. At 100 000 samples the three QPainter libraries and QIm fall within a narrow band; at one million the built-in reduction is worth 62×, while the raster/OpenGL switch is worth less than 2× and often in the wrong direction.

Two practical consequences follow. For a chart that refreshes at 60 Hz, handover is a per-frame cost that separates the libraries by more than the rendering does; only Qwt and QIm accept a raw array and avoid the caller-side list construction. For a single thin polyline the GL path is slower in the low-load region and becomes competitive only where the raster engine's per-segment work dominates: many series, large canvases, heavy antialiasing.

For a developer choosing a library, the question is which regime the application is in and which cost term dominates it, not "which one is fastest". The harness, the raw data and the analysis scripts are in the repository, so the same question can be answered for a specific workload.

References

1. Qwt 7.5 source: src/plot/qwt_plot_curve.cpp, src/plot/qwt_point_mapper.cpp, src/plot/qwt_plot_canvas.cpp, src/plot/qwt_plot_opengl_canvas.cpp, src/plot/qwt_plot_abstract_canvas.cpp.
2. QCustomPlot 2.1.0 source: examples/bench/chartbench/qcustomplot.cpp (QCPGraph::getOptimizedLineData, QCPPaintBufferPixmap, QCPPaintBufferGlFbo).
3. Qt Charts 6.7: QChartView, QChart, QXYSeries, QValueAxis (Qt documentation: Qt Charts module, QAbstractSeries::setUseOpenGL).
4. QIm 0.0.3 source: src/core/plot/QImDownsamplingController.{h,cpp}, src/widgets/QImWidget.cpp; Dear ImGui and ImPlot sources under 3rdparty/ (implot_items.cpp, RendererLineStrip).
5. Qwt tech report Downsampling Curves for the Screen: LTTB Theory and the QWT7 MinMax Bucket — the reduction algorithms, their output budgets and the theory behind the fidelity metrics.
6. Qwt tech report SIMD argmin/argmax Vectorization Benchmark — the vectorized inner loop of the MinMax reduction used by Qwt and QIm.
7. Qwt tech report Raster vs OpenGL Rendering Pipelines — the four-stage frame model and the GL crossover criterion for Qwt alone.
8. Qwt tech report Real-Time Streaming Rendering Strategies — the frame-budget model for streaming workloads.
9. Measurement harness: examples/bench/chartbench (this repository), driver run-bench.sh, protocol documented in the example's README.md.
10. Analysis and figures: docs/assets/bench/chartbench_experiment.py, docs/assets/bench/chartbench_fidelity.py, raw data in docs/assets/bench/data/.
