Base class for plot items representing a series of samples. More...

#include <qwt_plot_seriesitem.h>

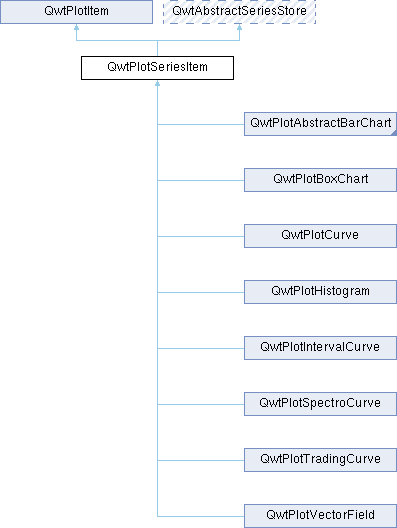

Inheritance diagram for QwtPlotSeriesItem:

Classes
class	PrivateData

Public Member Functions
	QwtPlotSeriesItem (const QString &title=QString())

	QwtPlotSeriesItem (const QwtText &title)
	Constructor.

void	setOrientation (Qt::Orientation)
	Set the orientation of the item.

Qt::Orientation	orientation () const
	Get the orientation of the plot item.

virtual void	draw (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect) const override
	Draw the complete series.

virtual void	drawSeries (QPainter *painter, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int from, int to) const =0
	Draw a subset of the samples.

virtual QRectF	boundingRect () const override
	Get the bounding rectangle.

virtual void	updateScaleDiv (const QwtScaleDiv &, const QwtScaleDiv &) override
	Update the scale divisions.

Public Member Functions inherited from QwtPlotItem
	QwtPlotItem ()
	Default constructor.

	QwtPlotItem (const QString &title)
	Constructor with title as QString.

	QwtPlotItem (const QwtText &title)
	Constructor with title as QwtText.

virtual	~QwtPlotItem ()
	Destructor.

virtual void	attach (QwtPlot *plot)
	Attach the item to a plot.

void	detach ()
	Detach the item from the plot.

QwtPlot *	plot () const
	Get the plot the item is attached to.

void	setTitle (const QString &title)
	Set the title using a QString.

void	setTitle (const QwtText &title)
	Set the title using a QwtText.

const QwtText &	title () const
	Get the title.

virtual int	rtti () const
	Runtime type information.

void	setItemAttribute (ItemAttribute, bool on=true)
	Set an item attribute.

bool	testItemAttribute (ItemAttribute) const
	Test an item attribute.

void	setItemInterest (ItemInterest, bool on=true)
	Set an item interest.

bool	testItemInterest (ItemInterest) const
	Test an item interest.

void	setRenderHint (RenderHint, bool on=true)
	Set a render hint.

bool	testRenderHint (RenderHint) const
	Test a render hint.

void	setRenderThreadCount (uint numThreads)
	Set the number of render threads.

uint	renderThreadCount () const
	Get the number of render threads.

void	setLegendIconSize (const QSize &)
	Set the legend icon size.

QSize	legendIconSize () const
	Get the legend icon size.

double	z () const
	Get the z-value.

void	setZ (double z)
	Set the z-value.

void	show ()
	Show the item.

void	hide ()
	Hide the item.

virtual void	setVisible (bool)
	Set the visibility.

bool	isVisible () const
	Check if the item is visible.

void	setAxes (QwtAxisId xAxis, QwtAxisId yAxis)
	Set both axes.

void	setXAxis (QwtAxisId)
	Set the x-axis.

QwtAxisId	xAxis () const
	Get the x-axis.

void	setYAxis (QwtAxisId)
	Set the y-axis.

QwtAxisId	yAxis () const
	Get the y-axis.

virtual void	itemChanged ()
	Notify the plot that the item has changed.

virtual void	legendChanged ()
	Notify the item that the legend has changed.

virtual void	getCanvasMarginHint (const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, double &left, double &top, double &right, double &bottom) const
	Get margin hints for the canvas.

virtual void	updateLegend (const QwtPlotItem *, const QList< QwtLegendData > &)
	Update the item with changes of the legend.

QRectF	scaleRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the scale rectangle.

QRectF	paintRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the paint rectangle.

virtual QList< QwtLegendData >	legendData () const
	Return legend data.

virtual QwtGraphic	legendIcon (int index, const QSizeF &) const
	Return a legend icon.

Protected Member Functions
virtual void	dataChanged () override
	dataChanged() indicates, that the series has been changed.

Protected Member Functions inherited from QwtPlotItem
QwtGraphic	defaultIcon (const QBrush &, const QSizeF &) const
	Create a default icon.

Protected Member Functions inherited from QwtAbstractSeriesStore
virtual void	setRectOfInterest (const QRectF &)=0
	Set a the "rectangle of interest" for the stored series.

virtual QRectF	dataRect () const =0

virtual size_t	dataSize () const =0

Additional Inherited Members
Public Types inherited from QwtPlotItem
enum	RttiValues { Rtti_PlotItem = 0 , Rtti_PlotGrid , Rtti_PlotScale , Rtti_PlotLegend , Rtti_PlotMarker , Rtti_PlotCurve , Rtti_PlotSpectroCurve , Rtti_PlotIntervalCurve , Rtti_PlotHistogram , Rtti_PlotSpectrogram , Rtti_PlotGraphic , Rtti_PlotTradingCurve , Rtti_PlotBarChart , Rtti_PlotMultiBarChart , Rtti_PlotShape , Rtti_PlotTextLabel , Rtti_PlotZone , Rtti_PlotVectorField , Rtti_PlotArrowMarker , Rtti_PlotBoxChart , Rtti_PlotUserItem = 1000 }
	Runtime type information. More...

enum	ItemAttribute { Legend = 0x01 , AutoScale = 0x02 , Margins = 0x04 }
	Plot Item Attributes. More...

enum	ItemInterest { ScaleInterest = 0x01 , LegendInterest = 0x02 }
	Plot Item Interests. More...

enum	RenderHint { RenderAntialiased = 0x1 }
	Render hints. More...

Detailed Description

Base class for plot items representing a series of samples.

QwtPlotSeriesItem is the base class for plot items that represent a series of samples, such as curves, bars, and other data visualization elements.

Constructor & Destructor Documentation

◆ QwtPlotSeriesItem()

QwtPlotSeriesItem::QwtPlotSeriesItem ( const QwtText & title )

explicit

Constructor.

Parameters

[in] title Title of the curve

Constructor

Parameters

[in] title Title of the curve

Destructor

Member Function Documentation

◆ boundingRect()

QRectF QwtPlotSeriesItem::boundingRect ( ) const

overridevirtual

Get the bounding rectangle.

Returns: Bounding rectangle

Reimplemented from QwtPlotItem.

Reimplemented in QwtPlotBarChart, QwtPlotBoxChart, QwtPlotHistogram, QwtPlotIntervalCurve, QwtPlotMultiBarChart, QwtPlotTradingCurve, and QwtPlotVectorField.

◆ dataChanged()

void QwtPlotSeriesItem::dataChanged ( )

overrideprotectedvirtual

dataChanged() indicates, that the series has been changed.

Implements QwtAbstractSeriesStore.

Reimplemented in QwtPlotVectorField.

◆ draw()

void QwtPlotSeriesItem::draw	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect
	)		const

overridevirtual

Draw the complete series.

Parameters

[in]	painter	Painter
[in]	xMap	Maps x-values into pixel coordinates.
[in]	yMap	Maps y-values into pixel coordinates.
[in]	canvasRect	Contents rectangle of the canvas

Implements QwtPlotItem.

◆ drawSeries()

virtual void QwtPlotSeriesItem::drawSeries	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	from,
		int	to
	)		const

pure virtual

Draw a subset of the samples.

Parameters

painter	Painter
xMap	Maps x-values into pixel coordinates.
yMap	Maps y-values into pixel coordinates.
canvasRect	Contents rectangle of the canvas
from	Index of the first point to be painted
to	Index of the last point to be painted. If to < 0 the curve will be painted to its last point.

Implemented in QwtPlotBarChart, QwtPlotBoxChart, QwtPlotCurve, QwtPlotHistogram, QwtPlotIntervalCurve, QwtPlotMultiBarChart, QwtPlotSpectroCurve, QwtPlotTradingCurve, and QwtPlotVectorField.

◆ orientation()

Qt::Orientation QwtPlotSeriesItem::orientation ( ) const

Get the orientation of the plot item.

Returns: Orientation of the plot item

See also: setOrientation()

◆ setOrientation()

void QwtPlotSeriesItem::setOrientation ( Qt::Orientation orientation )

Set the orientation of the item.

The orientation() might be used in specific way by a plot item. F.e. a QwtPlotCurve uses it to identify how to display the curve in QwtPlotCurve::Steps or QwtPlotCurve::Sticks style.

Parameters

[in] orientation Orientation

See also: orientation()

◆ updateScaleDiv()

void QwtPlotSeriesItem::updateScaleDiv	(	const QwtScaleDiv &	xScaleDiv,
		const QwtScaleDiv &	yScaleDiv
	)

overridevirtual

Update the scale divisions.

Parameters

[in]	xScaleDiv	X scale division
[in]	yScaleDiv	Y scale division

Reimplemented from QwtPlotItem.

The documentation for this class was generated from the following files:

/home/runner/work/QWT/QWT/src/plot/qwt_plot_seriesitem.h
/home/runner/work/QWT/QWT/src/plot/qwt_plot_seriesitem.cpp
