QwtPlotMultiBarChart displays a series of samples that consist each of a set of values. More...

#include <qwt_plot_multi_barchart.h>

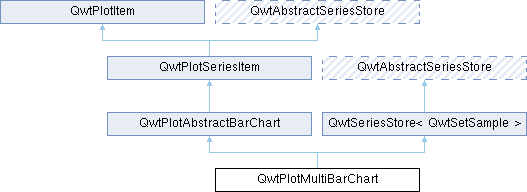

Inheritance diagram for QwtPlotMultiBarChart:

Classes
class	PrivateData

Public Types
enum	ChartStyle { Grouped , Stacked }
	Chart styles. More...

Public Types inherited from QwtPlotAbstractBarChart
enum	LayoutPolicy { AutoAdjustSamples , ScaleSamplesToAxes , ScaleSampleToCanvas , FixedSampleSize }
	Mode how to calculate the bar width. More...

Public Types inherited from QwtPlotItem
enum	RttiValues { Rtti_PlotItem = 0 , Rtti_PlotGrid , Rtti_PlotScale , Rtti_PlotLegend , Rtti_PlotMarker , Rtti_PlotCurve , Rtti_PlotSpectroCurve , Rtti_PlotIntervalCurve , Rtti_PlotHistogram , Rtti_PlotSpectrogram , Rtti_PlotGraphic , Rtti_PlotTradingCurve , Rtti_PlotBarChart , Rtti_PlotMultiBarChart , Rtti_PlotShape , Rtti_PlotTextLabel , Rtti_PlotZone , Rtti_PlotVectorField , Rtti_PlotArrowMarker , Rtti_PlotBoxChart , Rtti_PlotUserItem = 1000 }
	Runtime type information. More...

enum	ItemAttribute { Legend = 0x01 , AutoScale = 0x02 , Margins = 0x04 }
	Plot Item Attributes. More...

enum	ItemInterest { ScaleInterest = 0x01 , LegendInterest = 0x02 }
	Plot Item Interests. More...

enum	RenderHint { RenderAntialiased = 0x1 }
	Render hints . More...

Public Member Functions
	QwtPlotMultiBarChart (const QString &title=QString())
	Constructor.

	QwtPlotMultiBarChart (const QwtText &title)
	Constructor with title.

virtual	~QwtPlotMultiBarChart ()
	Destructor.

virtual int	rtti () const override
	Get the runtime type information.

void	setBarTitles (const QList< QwtText > &)
	Set the bar titles.

QList< QwtText >	barTitles () const
	Get the bar titles.

void	setSamples (const QVector< QwtSetSample > &)
	Set samples from a vector of QwtSetSample.

void	setSamples (const QVector< QVector< double > > &)
	Set samples from a vector of vectors.

void	setSamples (QwtSeriesData< QwtSetSample > *)
	Set samples from a series data.

void	setStyle (ChartStyle style)
	Set the chart style.

ChartStyle	style () const
	Get the chart style.

void	setSymbol (int valueIndex, QwtColumnSymbol *)
	Set the symbol for a specific value index.

const QwtColumnSymbol *	symbol (int valueIndex) const
	Get the symbol for a specific value index.

void	resetSymbolMap ()
	Reset the symbol map.

virtual void	drawSeries (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int from, int to) const override
	Draw the series.

virtual QRectF	boundingRect () const override
	Get the bounding rectangle.

virtual QList< QwtLegendData >	legendData () const override
	Get the legend data.

virtual QwtGraphic	legendIcon (int index, const QSizeF &) const override
	Get the legend icon.

Public Member Functions inherited from QwtPlotAbstractBarChart
	QwtPlotAbstractBarChart (const QwtText &title)
	Constructor.

virtual	~QwtPlotAbstractBarChart ()
	Destructor .

void	setLayoutPolicy (LayoutPolicy)
	Set the layout policy.

LayoutPolicy	layoutPolicy () const
	Get the layout policy.

void	setLayoutHint (double)
	Set the layout hint.

double	layoutHint () const
	Get the layout hint.

void	setSpacing (int)
	Set the spacing between bars.

int	spacing () const
	Get the spacing between bars.

void	setMargin (int)
	Set the margin around the bars.

int	margin () const
	Get the margin around the bars.

void	setBaseline (double)
	Set the baseline value.

double	baseline () const
	Get the baseline value.

virtual void	getCanvasMarginHint (const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, double &left, double &top, double &right, double &bottom) const override
	Calculate a hint for the canvas margin.

Public Member Functions inherited from QwtPlotSeriesItem
	QwtPlotSeriesItem (const QString &title=QString())
	Constructor.

	QwtPlotSeriesItem (const QwtText &title)
	Constructor.

virtual	~QwtPlotSeriesItem ()
	Destructor .

void	setOrientation (Qt::Orientation)
	Set the orientation of the item.

Qt::Orientation	orientation () const
	Get the orientation of the plot item.

virtual void	draw (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect) const override
	Draw the complete series.

virtual void	updateScaleDiv (const QwtScaleDiv &, const QwtScaleDiv &) override
	Update the scale divisions.

Public Member Functions inherited from QwtPlotItem
	QwtPlotItem ()
	Default constructor.

	QwtPlotItem (const QString &title)
	Constructor with title as QString.

	QwtPlotItem (const QwtText &title)
	Constructor with title as QwtText.

virtual	~QwtPlotItem ()
	Destructor.

void	attach (QwtPlot *plot)
	Attach the item to a plot.

void	detach ()
	Detach the item from the plot.

QwtPlot *	plot () const
	Get the plot the item is attached to.

void	setTitle (const QString &title)
	Set the title using a QString.

void	setTitle (const QwtText &title)
	Set the title using a QwtText.

const QwtText &	title () const
	Get the title.

void	setItemAttribute (ItemAttribute, bool on=true)
	Set an item attribute.

bool	testItemAttribute (ItemAttribute) const
	Test an item attribute.

void	setItemInterest (ItemInterest, bool on=true)
	Set an item interest.

bool	testItemInterest (ItemInterest) const
	Test an item interest.

void	setRenderHint (RenderHint, bool on=true)
	Set a render hint.

bool	testRenderHint (RenderHint) const
	Test a render hint.

void	setRenderThreadCount (uint numThreads)
	Set the number of render threads.

uint	renderThreadCount () const
	Get the number of render threads.

void	setLegendIconSize (const QSize &)
	Set the legend icon size.

QSize	legendIconSize () const
	Get the legend icon size.

double	z () const
	Get the z-value.

void	setZ (double z)
	Set the z-value.

void	show ()
	Show the item.

void	hide ()
	Hide the item.

virtual void	setVisible (bool)
	Set the visibility.

bool	isVisible () const
	Check if the item is visible.

void	setAxes (QwtAxisId xAxis, QwtAxisId yAxis)
	Set both axes.

void	setXAxis (QwtAxisId)
	Set the x-axis.

QwtAxisId	xAxis () const
	Get the x-axis.

void	setYAxis (QwtAxisId)
	Set the y-axis.

QwtAxisId	yAxis () const
	Get the y-axis.

virtual void	itemChanged ()
	Notify the plot that the item has changed.

virtual void	legendChanged ()
	Notify the item that the legend has changed.

virtual void	updateLegend (const QwtPlotItem *, const QList< QwtLegendData > &)
	Update the item with changes of the legend.

QRectF	scaleRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the scale rectangle.

QRectF	paintRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the paint rectangle.

Public Member Functions inherited from QwtSeriesStore< QwtSetSample >
void	setData (QwtSeriesData< QwtSetSample > *series)

QwtSeriesData< QwtSetSample > *	data ()

const QwtSeriesData< QwtSetSample > *	data () const

QwtSetSample	sample (size_t index) const

virtual size_t	dataSize () const override

virtual QRectF	dataRect () const override

virtual void	setRectOfInterest (const QRectF &rect) override
	Set a the "rectangle of interest" for the stored series.

QwtSeriesData< QwtSetSample > *	swapData (QwtSeriesData< QwtSetSample > *series)

Protected Member Functions
QwtColumnSymbol *	symbol (int valueIndex)
	Get the symbol for a specific value index.

virtual QwtColumnSymbol *	specialSymbol (int sampleIndex, int valueIndex) const
	Get a special symbol for a specific sample and value index.

virtual void	drawSample (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, const QwtInterval &boundingInterval, int index, const QwtSetSample &) const
	Draw a sample.

virtual void	drawBar (QPainter *, int sampleIndex, int valueIndex, const QwtColumnRect &) const
	Draw a bar.

void	drawStackedBars (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int index, double sampleWidth, const QwtSetSample &) const
	Draw stacked bars.

void	drawGroupedBars (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int index, double sampleWidth, const QwtSetSample &) const
	Draw grouped bars.

Protected Member Functions inherited from QwtPlotAbstractBarChart
double	sampleWidth (const QwtScaleMap &map, double canvasSize, double boundingSize, double value) const
	Calculate the width for a sample in paint device coordinates.

Protected Member Functions inherited from QwtPlotSeriesItem
virtual void	dataChanged () override
	dataChanged() indicates, that the series has been changed.

Protected Member Functions inherited from QwtPlotItem
QwtGraphic	defaultIcon (const QBrush &, const QSizeF &) const
	Create a default icon.

Detailed Description

QwtPlotMultiBarChart displays a series of samples that consist each of a set of values.

Member Enumeration Documentation

◆ ChartStyle

enum QwtPlotMultiBarChart::ChartStyle

Chart styles.

Enumerator
Grouped	The bars of a set are displayed side by side.
Stacked	The bars are displayed on top of each other accumulating to a single bar. All values of a set need to have the same sign.

Constructor & Destructor Documentation

◆ QwtPlotMultiBarChart() [1/2]

QwtPlotMultiBarChart::QwtPlotMultiBarChart ( const QString & title = QString() )

explicit

Constructor.

◆ QwtPlotMultiBarChart() [2/2]

QwtPlotMultiBarChart::QwtPlotMultiBarChart ( const QwtText & title )

explicit

Constructor with title.

Constructor.

◆ ~QwtPlotMultiBarChart()

QwtPlotMultiBarChart::~QwtPlotMultiBarChart ( )

virtual

Destructor.

Destructor

.

Member Function Documentation

◆ barTitles()

QList< QwtText > QwtPlotMultiBarChart::barTitles ( ) const

Get the bar titles.

◆ boundingRect()

QRectF QwtPlotMultiBarChart::boundingRect ( ) const

overridevirtual

Get the bounding rectangle.

Get the bounding rectangle of all samples.

Reimplemented from QwtPlotSeriesItem.

◆ drawBar()

void QwtPlotMultiBarChart::drawBar	(	QPainter *	painter,
		int	sampleIndex,
		int	valueIndex,
		const QwtColumnRect &	rect
	)		const

protectedvirtual

Draw a bar.

Parameters

painter	Painter
sampleIndex	Index of the sample - might be -1 when the bar is painted for the legend
valueIndex	Index of a value in a set
rect	Directed target rectangle for the bar

See also: drawSeries()

◆ drawGroupedBars()

void QwtPlotMultiBarChart::drawGroupedBars	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	index,
		double	sampleWidth,
		const QwtSetSample &	sample
	)		const

protected

Draw grouped bars.

Draw a grouped sample.

Parameters

painter	Painter
xMap	x map
yMap	y map
canvasRect	Contents rectangle of the canvas
index	Index of the sample to be painted
sampleWidth	Bounding width for all bars of the sample
sample	Sample

See also: drawSeries(), sampleWidth()

◆ drawSample()

void QwtPlotMultiBarChart::drawSample	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		const QwtInterval &	boundingInterval,
		int	index,
		const QwtSetSample &	sample
	)		const

protectedvirtual

Draw a sample.

Parameters

painter	Painter
xMap	x map
yMap	y map
canvasRect	Contents rectangle of the canvas
boundingInterval	Bounding interval of sample values
index	Index of the sample to be painted
sample	Sample value

See also: drawSeries()

◆ drawSeries()

void QwtPlotMultiBarChart::drawSeries	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	from,
		int	to
	)		const

overridevirtual

Draw the series.

Draw an interval of the bar chart.

Implements QwtPlotSeriesItem.

◆ drawStackedBars()

void QwtPlotMultiBarChart::drawStackedBars	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	index,
		double	sampleWidth,
		const QwtSetSample &	sample
	)		const

protected

Draw stacked bars.

Draw a stacked sample.

Parameters

painter	Painter
xMap	x map
yMap	y map
canvasRect	Contents rectangle of the canvas
index	Index of the sample to be painted
sampleWidth	Width of the bars
sample	Sample

See also: drawSeries(), sampleWidth()

◆ legendData()

QList< QwtLegendData > QwtPlotMultiBarChart::legendData ( ) const

overridevirtual

Get the legend data.

Get information to be displayed on the legend.

Reimplemented from QwtPlotItem.

◆ legendIcon()

QwtGraphic QwtPlotMultiBarChart::legendIcon	(	int	index,
		const QSizeF &	size
	)		const

overridevirtual

Get the legend icon.

Get icon for representing a bar on the legend.

Reimplemented from QwtPlotItem.

◆ resetSymbolMap()

void QwtPlotMultiBarChart::resetSymbolMap ( )

Reset the symbol map.

Remove all symbols from the symbol map

.

◆ rtti()

int QwtPlotMultiBarChart::rtti ( ) const

overridevirtual

Get the runtime type information.

Reimplemented from QwtPlotItem.

◆ setBarTitles()

void QwtPlotMultiBarChart::setBarTitles ( const QList< QwtText > & titles )

Set the bar titles.

Set the titles for the bars.

◆ setSamples() [1/3]

void QwtPlotMultiBarChart::setSamples ( const QVector< QVector< double > > & samples )

Set samples from a vector of vectors.

Initialize data with an array of samples.

◆ setSamples() [2/3]

void QwtPlotMultiBarChart::setSamples ( const QVector< QwtSetSample > & samples )

Set samples from a vector of QwtSetSample.

Initialize data with an array of samples.

◆ setSamples() [3/3]

void QwtPlotMultiBarChart::setSamples ( QwtSeriesData< QwtSetSample > * data )

Set samples from a series data.

Assign a series of samples.

◆ setStyle()

void QwtPlotMultiBarChart::setStyle ( ChartStyle style )

Set the chart style.

Set the style of the chart.

◆ setSymbol()

void QwtPlotMultiBarChart::setSymbol	(	int	valueIndex,
		QwtColumnSymbol *	symbol
	)

Set the symbol for a specific value index.

Add a symbol to the symbol map.

◆ specialSymbol()

QwtColumnSymbol * QwtPlotMultiBarChart::specialSymbol	(	int	sampleIndex,
		int	valueIndex
	)		const

protectedvirtual

Get a special symbol for a specific sample and value index.

Create a symbol for special values.

Usually the symbols for displaying a bar are set by setSymbols() and common for all sets. By overloading specialSymbol() it is possible to create a temporary symbol() for displaying a special value.

The symbol has to be created by new each time specialSymbol() is called. As soon as the symbol is painted this symbol gets deleted.

When no symbol ( nullptr ) is returned, the value will be displayed with the standard symbol that is used for all symbols with the same valueIndex.

Parameters

sampleIndex	Index of the sample
valueIndex	Index of the value in the set

Returns: nullptr, meaning that the value is not special

◆ style()

QwtPlotMultiBarChart::ChartStyle QwtPlotMultiBarChart::style ( ) const

Get the chart style.

Get the style of the chart.

◆ symbol() [1/2]

QwtColumnSymbol * QwtPlotMultiBarChart::symbol ( int valueIndex )

protected

Get the symbol for a specific value index.

Find a symbol in the symbol map.

Parameters

valueIndex Index of a value in a set

Returns: The symbol, that had been set by setSymbol() or nullptr.

See also: setSymbol(), specialSymbol(), drawBar()

◆ symbol() [2/2]

const QwtColumnSymbol * QwtPlotMultiBarChart::symbol ( int valueIndex ) const

Get the symbol for a specific value index.

Find a symbol in the symbol map.

The documentation for this class was generated from the following files:

/home/runner/work/QWT/QWT/src/plot/qwt_plot_multi_barchart.h
/home/runner/work/QWT/QWT/src/plot/qwt_plot_multi_barchart.cpp

Classes

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Enumeration Documentation

◆ ChartStyle

Constructor & Destructor Documentation

◆ QwtPlotMultiBarChart() [1/2]

◆ QwtPlotMultiBarChart() [2/2]

◆ ~QwtPlotMultiBarChart()

Member Function Documentation

◆ barTitles()

◆ boundingRect()

◆ drawBar()

◆ drawGroupedBars()

◆ drawSample()

◆ drawSeries()

◆ drawStackedBars()

◆ legendData()

◆ legendIcon()

◆ resetSymbolMap()

◆ rtti()

◆ setBarTitles()

◆ setSamples() [1/3]

◆ setSamples() [2/3]

◆ setSamples() [3/3]

◆ setStyle()

◆ setSymbol()

◆ specialSymbol()

◆ style()

◆ symbol() [1/2]

◆ symbol() [2/2]
