Abstract base class for bar chart items. More...

#include <qwt_plot_abstract_barchart.h>

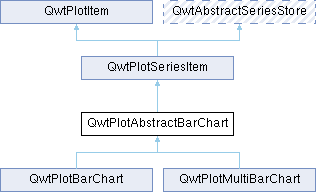

Inheritance diagram for QwtPlotAbstractBarChart:

Classes
class	PrivateData

Public Types
enum	LayoutPolicy { AutoAdjustSamples , ScaleSamplesToAxes , ScaleSampleToCanvas , FixedSampleSize }
	Mode how to calculate the bar width. More...

Public Types inherited from QwtPlotItem
enum	RttiValues { Rtti_PlotItem = 0 , Rtti_PlotGrid , Rtti_PlotScale , Rtti_PlotLegend , Rtti_PlotMarker , Rtti_PlotCurve , Rtti_PlotSpectroCurve , Rtti_PlotIntervalCurve , Rtti_PlotHistogram , Rtti_PlotSpectrogram , Rtti_PlotGraphic , Rtti_PlotTradingCurve , Rtti_PlotBarChart , Rtti_PlotMultiBarChart , Rtti_PlotShape , Rtti_PlotTextLabel , Rtti_PlotZone , Rtti_PlotVectorField , Rtti_PlotArrowMarker , Rtti_PlotBoxChart , Rtti_PlotUserItem = 1000 }
	Runtime type information. More...

enum	ItemAttribute { Legend = 0x01 , AutoScale = 0x02 , Margins = 0x04 }
	Plot Item Attributes. More...

enum	ItemInterest { ScaleInterest = 0x01 , LegendInterest = 0x02 }
	Plot Item Interests. More...

enum	RenderHint { RenderAntialiased = 0x1 }
	Render hints. More...

Public Member Functions
	QwtPlotAbstractBarChart (const QwtText &title)
	Constructor.

void	setLayoutPolicy (LayoutPolicy)
	Set the layout policy.

LayoutPolicy	layoutPolicy () const
	Get the layout policy.

void	setLayoutHint (double)
	Set the layout hint.

double	layoutHint () const
	Get the layout hint.

void	setSpacing (int)
	Set the spacing between bars.

int	spacing () const
	Get the spacing between bars.

void	setMargin (int)
	Set the margin around the bars.

int	margin () const
	Get the margin around the bars.

void	setBaseline (double)
	Set the baseline value.

double	baseline () const
	Get the baseline value.

virtual void	getCanvasMarginHint (const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, double &left, double &top, double &right, double &bottom) const override
	Calculate a hint for the canvas margin.

Public Member Functions inherited from QwtPlotSeriesItem
	QwtPlotSeriesItem (const QString &title=QString())

	QwtPlotSeriesItem (const QwtText &title)
	Constructor.

void	setOrientation (Qt::Orientation)
	Set the orientation of the item.

Qt::Orientation	orientation () const
	Get the orientation of the plot item.

virtual void	draw (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect) const override
	Draw the complete series.

virtual void	drawSeries (QPainter *painter, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int from, int to) const =0
	Draw a subset of the samples.

virtual QRectF	boundingRect () const override
	Get the bounding rectangle.

virtual void	updateScaleDiv (const QwtScaleDiv &, const QwtScaleDiv &) override
	Update the scale divisions.

Public Member Functions inherited from QwtPlotItem
	QwtPlotItem ()
	Default constructor.

	QwtPlotItem (const QString &title)
	Constructor with title as QString.

	QwtPlotItem (const QwtText &title)
	Constructor with title as QwtText.

virtual	~QwtPlotItem ()
	Destructor.

virtual void	attach (QwtPlot *plot)
	Attach the item to a plot.

void	detach ()
	Detach the item from the plot.

QwtPlot *	plot () const
	Get the plot the item is attached to.

void	setTitle (const QString &title)
	Set the title using a QString.

void	setTitle (const QwtText &title)
	Set the title using a QwtText.

const QwtText &	title () const
	Get the title.

virtual int	rtti () const
	Runtime type information.

void	setItemAttribute (ItemAttribute, bool on=true)
	Set an item attribute.

bool	testItemAttribute (ItemAttribute) const
	Test an item attribute.

void	setItemInterest (ItemInterest, bool on=true)
	Set an item interest.

bool	testItemInterest (ItemInterest) const
	Test an item interest.

void	setRenderHint (RenderHint, bool on=true)
	Set a render hint.

bool	testRenderHint (RenderHint) const
	Test a render hint.

void	setRenderThreadCount (uint numThreads)
	Set the number of render threads.

uint	renderThreadCount () const
	Get the number of render threads.

void	setLegendIconSize (const QSize &)
	Set the legend icon size.

QSize	legendIconSize () const
	Get the legend icon size.

double	z () const
	Get the z-value.

void	setZ (double z)
	Set the z-value.

void	show ()
	Show the item.

void	hide ()
	Hide the item.

virtual void	setVisible (bool)
	Set the visibility.

bool	isVisible () const
	Check if the item is visible.

void	setAxes (QwtAxisId xAxis, QwtAxisId yAxis)
	Set both axes.

void	setXAxis (QwtAxisId)
	Set the x-axis.

QwtAxisId	xAxis () const
	Get the x-axis.

void	setYAxis (QwtAxisId)
	Set the y-axis.

QwtAxisId	yAxis () const
	Get the y-axis.

virtual void	itemChanged ()
	Notify the plot that the item has changed.

virtual void	legendChanged ()
	Notify the item that the legend has changed.

virtual void	updateLegend (const QwtPlotItem *, const QList< QwtLegendData > &)
	Update the item with changes of the legend.

QRectF	scaleRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the scale rectangle.

QRectF	paintRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the paint rectangle.

virtual QList< QwtLegendData >	legendData () const
	Return legend data.

virtual QwtGraphic	legendIcon (int index, const QSizeF &) const
	Return a legend icon.

Protected Member Functions
double	sampleWidth (const QwtScaleMap &map, double canvasSize, double boundingSize, double value) const
	Calculate the width for a sample in paint device coordinates.

Protected Member Functions inherited from QwtPlotSeriesItem
virtual void	dataChanged () override
	dataChanged() indicates, that the series has been changed.

Protected Member Functions inherited from QwtPlotItem
QwtGraphic	defaultIcon (const QBrush &, const QSizeF &) const
	Create a default icon.

Protected Member Functions inherited from QwtAbstractSeriesStore
virtual void	setRectOfInterest (const QRectF &)=0
	Set a the "rectangle of interest" for the stored series.

virtual QRectF	dataRect () const =0

virtual size_t	dataSize () const =0

Detailed Description

Abstract base class for bar chart items.

In opposite to almost all other plot items bar charts can't be displayed inside of their bounding rectangle and need a special API how to calculate the width of the bars and how they affect the layout of the attached plot.

Member Enumeration Documentation

◆ LayoutPolicy

enum QwtPlotAbstractBarChart::LayoutPolicy

Mode how to calculate the bar width.

setLayoutPolicy(), setLayoutHint(), barWidthHint()

Enumerator
AutoAdjustSamples	The sample width is calculated by dividing the bounding rectangle by the number of samples. The layoutHint() is used as a minimum width in paint device coordinates. See also boundingRectangle()
ScaleSamplesToAxes	layoutHint() defines an interval in axis coordinates
ScaleSampleToCanvas	The bar width is calculated by multiplying layoutHint() with the height or width of the canvas. See also boundingRectangle()
FixedSampleSize	layoutHint() defines a fixed width in paint device coordinates.

Constructor & Destructor Documentation

◆ QwtPlotAbstractBarChart()

QwtPlotAbstractBarChart::QwtPlotAbstractBarChart ( const QwtText & title )

explicit

Constructor.

Parameters

[in] title Title of the chart

Destructor

Member Function Documentation

◆ baseline()

double QwtPlotAbstractBarChart::baseline ( ) const

Get the baseline value.

Returns: Value for the origin of the bar chart

See also: setBaseline(), QwtPlotSeriesItem::orientation()

◆ getCanvasMarginHint()

void QwtPlotAbstractBarChart::getCanvasMarginHint	(	const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		double &	left,
		double &	top,
		double &	right,
		double &	bottom
	)		const

overridevirtual

Calculate a hint for the canvas margin.

Bar charts need to reserve some space for displaying the bars for the first and the last sample. The hint is calculated from the layoutHint() depending on the layoutPolicy(). The margins are in target device coordinates ( pixels on screen ).

Parameters

[in]	xMap	Maps x-values into pixel coordinates.
[in]	yMap	Maps y-values into pixel coordinates.
[in]	canvasRect	Contents rectangle of the canvas in painter coordinates
[out]	left	Returns the left margin
[out]	top	Returns the top margin
[out]	right	Returns the right margin
[out]	bottom	Returns the bottom margin

See also: layoutPolicy(), layoutHint(), QwtPlotItem::Margins, QwtPlot::getCanvasMarginsHint(), QwtPlot::updateCanvasMargins()

Reimplemented from QwtPlotItem.

◆ layoutHint()

double QwtPlotAbstractBarChart::layoutHint ( ) const

Get the layout hint.

The combination of layoutPolicy() and layoutHint() define how the width of the bars is calculated.

Returns: Layout hint of the chart item

See also: LayoutPolicy, setLayoutHint(), layoutPolicy()

◆ layoutPolicy()

QwtPlotAbstractBarChart::LayoutPolicy QwtPlotAbstractBarChart::layoutPolicy ( ) const

Get the layout policy.

The combination of layoutPolicy() and layoutHint() define how the width of the bars is calculated.

Returns: Layout policy of the chart item

See also: setLayoutPolicy(), layoutHint()

◆ margin()

int QwtPlotAbstractBarChart::margin ( ) const

Get the margin around the bars.

Returns: Margin between the outmost bars and the contentsRect() of the canvas.

See also: setMargin(), spacing()

◆ sampleWidth()

double QwtPlotAbstractBarChart::sampleWidth	(	const QwtScaleMap &	map,
		double	canvasSize,
		double	boundingSize,
		double	value
	)		const

protected

Calculate the width for a sample in paint device coordinates.

Parameters

map	Scale map for the corresponding scale
canvasSize	Size of the canvas in paint device coordinates
boundingSize	Bounding size of the chart in plot coordinates ( used in AutoAdjustSamples mode )
value	Value of the sample

Returns: Sample width

See also: layoutPolicy(), layoutHint()

◆ setBaseline()

void QwtPlotAbstractBarChart::setBaseline ( double value )

Set the baseline value.

The baseline is the origin for the chart. Each bar is painted from the baseline in the direction of the sample value. In case of a horizontal orientation() the baseline is interpreted as x - otherwise as y - value. The default value for the baseline is 0.

Parameters

[in] value Value for the baseline

See also: baseline(), QwtPlotSeriesItem::orientation()

◆ setLayoutHint()

void QwtPlotAbstractBarChart::setLayoutHint ( double hint )

Set the layout hint.

The combination of layoutPolicy() and layoutHint() define how the width of the bars is calculated.

Parameters

[in] hint Layout hint

See also: LayoutPolicy, layoutPolicy(), layoutHint()

◆ setLayoutPolicy()

void QwtPlotAbstractBarChart::setLayoutPolicy ( LayoutPolicy policy )

Set the layout policy.

The combination of layoutPolicy() and layoutHint() define how the width of the bars is calculated.

Parameters

[in] policy Layout policy

See also: layoutPolicy(), layoutHint()

◆ setMargin()

void QwtPlotAbstractBarChart::setMargin ( int margin )

Set the margin around the bars.

The margin is the distance between the outmost bars and the contentsRect() of the canvas. The default setting is 5 pixels.

Parameters

[in] margin Margin in pixels

See also: spacing(), margin()

◆ setSpacing()

void QwtPlotAbstractBarChart::setSpacing ( int spacing )

Set the spacing between bars.

The spacing is the distance between 2 samples ( bars for QwtPlotBarChart or a group of bars for QwtPlotMultiBarChart ) in paint device coordinates.

Parameters

[in] spacing Spacing in pixels

See also: spacing()

◆ spacing()

int QwtPlotAbstractBarChart::spacing ( ) const

Get the spacing between bars.

Returns: Spacing between 2 samples ( bars or groups of bars )

See also: setSpacing(), margin()

The documentation for this class was generated from the following files:

/home/runner/work/QWT/QWT/src/plot/qwt_plot_abstract_barchart.h
/home/runner/work/QWT/QWT/src/plot/qwt_plot_abstract_barchart.cpp
