QwtAbstractSeriesStore Class Reference

Bridge between QwtSeriesStore and QwtPlotSeriesItem. More...

#include <qwt_series_store.h>

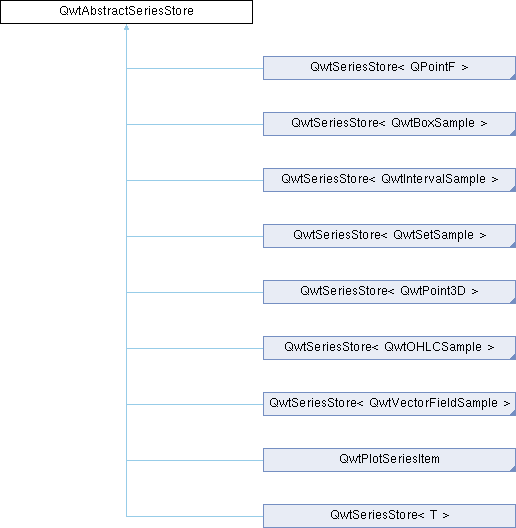

Inheritance diagram for QwtAbstractSeriesStore:

Protected Member Functions
virtual void	dataChanged ()=0
	dataChanged() indicates, that the series has been changed.
virtual void	setRectOfInterest (const QRectF &)=0
	Set a the "rectangle of interest" for the stored series.
virtual QRectF	dataRect () const =0
virtual size_t	dataSize () const =0

Detailed Description

Bridge between QwtSeriesStore and QwtPlotSeriesItem.

QwtAbstractSeriesStore is an abstract interface only to make it possible to isolate the template based methods (QwtSeriesStore) from the regular methods (QwtPlotSeriesItem) to make it possible to derive from QwtPlotSeriesItem without any hassle with templates.

Member Function Documentation

dataChanged()

virtual void QwtAbstractSeriesStore::dataChanged ( )

protectedpure virtual

dataChanged() indicates, that the series has been changed.

Implemented in QwtPlotSeriesItem, and QwtPlotVectorField.

dataRect()

virtual QRectF QwtAbstractSeriesStore::dataRect ( ) const

protectedpure virtual

Returns

Bounding rectangle of the stored series

Implemented in QwtSeriesStore< T >, QwtSeriesStore< QPointF >, QwtSeriesStore< QwtBoxSample >, QwtSeriesStore< QwtIntervalSample >, QwtSeriesStore< QwtOHLCSample >, QwtSeriesStore< QwtPoint3D >, QwtSeriesStore< QwtSetSample >, and QwtSeriesStore< QwtVectorFieldSample >.

dataSize()

virtual size_t QwtAbstractSeriesStore::dataSize ( ) const

protectedpure virtual

Returns

Number of samples

Implemented in QwtSeriesStore< T >, QwtSeriesStore< QPointF >, QwtSeriesStore< QwtBoxSample >, QwtSeriesStore< QwtIntervalSample >, QwtSeriesStore< QwtOHLCSample >, QwtSeriesStore< QwtPoint3D >, QwtSeriesStore< QwtSetSample >, and QwtSeriesStore< QwtVectorFieldSample >.

setRectOfInterest()

virtual void QwtAbstractSeriesStore::setRectOfInterest ( const QRectF &  )

protectedpure virtual

Set a the "rectangle of interest" for the stored series.

Implemented in QwtSeriesStore< T >, QwtSeriesStore< QPointF >, QwtSeriesStore< QwtBoxSample >, QwtSeriesStore< QwtIntervalSample >, QwtSeriesStore< QwtOHLCSample >, QwtSeriesStore< QwtPoint3D >, QwtSeriesStore< QwtSetSample >, and QwtSeriesStore< QwtVectorFieldSample >.

---

The documentation for this class was generated from the following file:

• /home/runner/work/QWT/QWT/src/core/qwt_series_store.h
