A plot data picker class for displaying current y-values or nearest points. More...

#include <qwt_plot_series_data_picker.h>

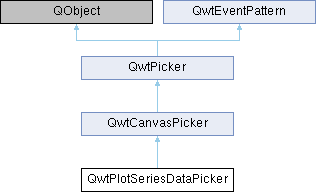

Inheritance diagram for QwtPlotSeriesDataPicker:

Classes
struct	FeaturePoint
	Feature point structure . More...

class	PrivateData

Public Types
enum	PickSeriesMode { PickYValue , PickNearestPoint }
	Pick modes . More...

enum	TextPlacement { TextPlaceAuto , TextFollowOnTop , TextFollowOnBottom , TextFollowMouse , TextOnCanvasTopRight , TextOnCanvasTopLeft , TextOnCanvasBottomRight , TextOnCanvasBottomLeft , TextOnCanvasTopAuto , TextOnCanvasBottomAuto }
	Text placement options . More...

enum	InterpolationMode { NoInterpolation , LinearInterpolation }
	Interpolation modes . More...

Public Types inherited from QwtPicker
enum	RubberBand { NoRubberBand = 0 , HLineRubberBand , VLineRubberBand , CrossRubberBand , RectRubberBand , EllipseRubberBand , PolygonRubberBand , UserRubberBand = 100 }
	Rubber band style. More...

enum	DisplayMode { AlwaysOff , AlwaysOn , ActiveOnly }
	Display mode. More...

enum	ResizeMode { Stretch , KeepSize }
	Controls what to do with the selected points when the observed widget is resized. More...

Public Types inherited from QwtEventPattern
enum	MousePatternCode { MouseSelect1 , MouseSelect2 , MouseSelect3 , MouseSelect4 , MouseSelect5 , MouseSelect6 , MousePatternCount }
	Symbolic mouse input codes. More...

enum	KeyPatternCode { KeySelect1 , KeySelect2 , KeyAbort , KeyLeft , KeyRight , KeyUp , KeyDown , KeyRedo , KeyUndo , KeyHome , KeyPatternCount }
	Symbolic keyboard input codes. More...

Public Member Functions
	QwtPlotSeriesDataPicker (QWidget *canvas)
	Constructor.

	~QwtPlotSeriesDataPicker ()
	Destructor.

void	setPickMode (PickSeriesMode mode)
	Set pick mode.

PickSeriesMode	pickMode () const
	Get pick mode.

void	setTextArea (TextPlacement t)
	Set text placement.

TextPlacement	textArea () const
	Get text placement.

void	setInterpolationMode (InterpolationMode mode)
	Set interpolation mode.

InterpolationMode	interpolationMode () const
	Get interpolation mode.

bool	isInterpolation () const
	Check if interpolation is enabled.

void	setNearestSearchWindowSize (int windowSize)
	Set nearest search window size.

int	nearestSearchWindowSize () const
	Get nearest search window size.

void	setEnableDrawFeaturePoint (bool on=true)
	Enable/disable feature point drawing.

bool	isEnableDrawFeaturePoint () const
	Check if feature point drawing is enabled.

void	setDrawFeaturePointSize (int px)
	Set feature point size.

int	drawFeaturePointSize () const
	Get feature point size.

void	setTextBackgroundBrush (const QBrush &br)
	Set text background brush.

QBrush	textBackgroundBrush () const
	Get text background brush.

void	setTextAlignment (Qt::Alignment al)
	Set text alignment.

Qt::Alignment	textAlignment () const
	Get text alignment.

void	setEnableShowXValue (bool on)
	Enable/disable showing X value.

bool	isEnableShowXValue () const
	Check if showing X value is enabled.

void	setTextTrackerOffset (const QPoint &offset)
	Set the offset of tracker rectangle in TextFollowMouse mode.

QPoint	textTrackerOffset () const
	Get the current tracker rectangle offset in TextFollowMouse mode.

QwtText	trackerText (const QPoint &pos) const override
	Return the label for a position.

QRect	trackerRect (const QFont &f) const override
	Calculate the bounding rectangle for the tracker text from the current position of the tracker.

virtual void	drawRubberBand (QPainter *painter) const override
	Draw a rubber band, depending on rubberBand()

virtual void	setTrackerPosition (const QPoint &pos) override
	Set the tracker position manually.

Public Member Functions inherited from QwtCanvasPicker
	QwtCanvasPicker (QWidget *canvas)
	Constructor with canvas widget.

	~QwtCanvasPicker ()
	Destructor .

QwtPlot *	plot ()
	Get the associated plot.

const QwtPlot *	plot () const
	Get the associated plot (const version)

QWidget *	canvas ()
	Get the canvas widget.

const QWidget *	canvas () const
	Get the canvas widget (const version)

Public Member Functions inherited from QwtPicker
	QwtPicker (QWidget *parent)
	Constructor.

	QwtPicker (RubberBand rubberBand, DisplayMode trackerMode, QWidget *)

void	setStateMachine (QwtPickerMachine *)
	Set a state machine and delete the previous one.

const QwtPickerMachine *	stateMachine () const
	Return the assigned state machine (const)

QwtPickerMachine *	stateMachine ()
	Return the assigned state machine.

void	setRubberBand (RubberBand)
	Set the rubber band style.

RubberBand	rubberBand () const
	Return the rubber band style.

void	setTrackerMode (DisplayMode)
	Set the display mode of the tracker.

DisplayMode	trackerMode () const
	Return the tracker display mode.

void	setResizeMode (ResizeMode)
	Set the resize mode.

ResizeMode	resizeMode () const
	Return the resize mode.

void	setRubberBandPen (const QPen &)
	Set the pen for the rubber band.

QPen	rubberBandPen () const
	Return the rubber band pen.

void	setTrackerPen (const QPen &)
	Set the pen for the tracker.

QPen	trackerPen () const
	Return the tracker pen.

void	setTrackerFont (const QFont &)
	Set the font for the tracker.

QFont	trackerFont () const
	Return the tracker font.

bool	isEnabled () const
	Return true when enabled, false otherwise.

bool	isActive () const
	A picker is active between begin() and end()

virtual bool	eventFilter (QObject , QEvent ) override
	Event filter for handling events.

QWidget *	parentWidget ()
	Return the parent widget, where the selection happens.

const QWidget *	parentWidget () const
	Return the parent widget, where the selection happens (const)

virtual QPainterPath	pickArea () const
	Find the area of the observed widget, where selection might happen.

virtual void	drawTracker (QPainter *) const
	Draw the tracker.

virtual QRegion	trackerMask () const
	Calculate the mask for the tracker overlay.

virtual QRegion	rubberBandMask () const
	Calculate the mask for the rubber band overlay.

QPoint	trackerPosition () const
	Return the current position of the tracker.

QPolygon	selection () const
	Return the selected points.

void	update ()

void	setActive (bool on)

Public Member Functions inherited from QwtEventPattern
	QwtEventPattern ()
	Constructor.

virtual	~QwtEventPattern ()
	Destructor .

void	initMousePattern (int numButtons)
	Set default mouse patterns depending on the number of mouse buttons.

void	initKeyPattern ()
	Set default key patterns.

void	setMousePattern (MousePatternCode, Qt::MouseButton button, Qt::KeyboardModifiers=Qt::NoModifier)
	Change one mouse pattern.

void	setKeyPattern (KeyPatternCode, int key, Qt::KeyboardModifiers modifiers=Qt::NoModifier)
	Change one key pattern.

void	setMousePattern (const QVector< MousePattern > &)
	Change the mouse event patterns.

void	setKeyPattern (const QVector< KeyPattern > &)
	Change the key event patterns.

const QVector< MousePattern > &	mousePattern () const
	Return the mouse pattern vector.

const QVector< KeyPattern > &	keyPattern () const
	Return the key pattern vector.

QVector< MousePattern > &	mousePattern ()
	Return the mouse pattern vector.

QVector< KeyPattern > &	keyPattern ()
	Return the key pattern vector.

bool	mouseMatch (MousePatternCode, const QMouseEvent *) const
	Compare a mouse event with an event pattern.

bool	keyMatch (KeyPatternCode, const QKeyEvent *) const
	Compare a key event with an event pattern.

Protected Member Functions
virtual int	pickYValue (const QwtPlot *p, const QPoint &pos, bool interpolate=false)
	Get all pickable Y values at a specified screen position.

virtual int	pickNearestPoint (const QwtPlot *plot, const QPoint &pos, int windowSize=-5)
	获取绘图区域指定屏幕位置上最近的可拾取点

virtual QString	valueString (const QList< FeaturePoint > &fps) const

virtual void	drawFeaturePoint (QPainter painter, const QwtPlot plot, const QwtPlotItem *item, const QPointF &itemPoint) const
	Draw a single feature point on the plot.

virtual void	move (const QPoint &pos) override
	Move the last point of the selection The moved() signal is emitted.

QString	formatAxisValue (double value, int axisId, QwtPlot *plot) const

Protected Member Functions inherited from QwtPicker
virtual QPolygon	adjustedPoints (const QPolygon &) const
	Map the pickedPoints() into a selection()

virtual void	transition (const QEvent *)
	Passes an event to the state machine and executes the resulting commands.

virtual void	begin ()
	Open a selection setting the state to active.

virtual void	append (const QPoint &)
	Append a point to the selection and update rubber band and tracker.

virtual void	remove ()
	Remove the last point of the selection The removed() signal is emitted.

virtual bool	end (bool ok=true)
	Close a selection setting the state to inactive.

virtual bool	accept (QPolygon &) const
	Validate and fix up the selection.

virtual void	reset ()
	Reset the state machine and terminate ( end(false) ) the selection.

virtual void	widgetMousePressEvent (QMouseEvent *)
	Handle a mouse press event for the observed widget.

virtual void	widgetMouseReleaseEvent (QMouseEvent *)
	Handle a mouse release event for the observed widget.

virtual void	widgetMouseDoubleClickEvent (QMouseEvent *)
	Handle mouse double click event for the observed widget.

virtual void	widgetMouseMoveEvent (QMouseEvent *)
	Handle a mouse move event for the observed widget.

virtual void	widgetWheelEvent (QWheelEvent *)
	Handle a wheel event for the observed widget.

virtual void	widgetKeyPressEvent (QKeyEvent *)
	Handle a key press event for the observed widget.

virtual void	widgetKeyReleaseEvent (QKeyEvent *)
	Handle a key release event for the observed widget.

virtual void	widgetEnterEvent (QEvent *)
	Handle a enter event for the observed widget.

virtual void	widgetLeaveEvent (QEvent *)
	Handle a leave event for the observed widget.

virtual void	stretchSelection (const QSize &oldSize, const QSize &newSize)
	Scale the selection by the ratios of oldSize and newSize The changed() signal is emitted.

virtual void	updateDisplay ()
	Update the state of rubber band and tracker label.

const QwtWidgetOverlay *	rubberBandOverlay () const
	Return the overlay displaying the rubber band.

const QwtWidgetOverlay *	trackerOverlay () const
	Return the overlay displaying the tracker text.

const QPolygon &	pickedPoints () const
	Return the points that have been collected so far.

Protected Member Functions inherited from QwtEventPattern
virtual bool	mouseMatch (const MousePattern &, const QMouseEvent *) const
	Compare a mouse event with an event pattern.

virtual bool	keyMatch (const KeyPattern &, const QKeyEvent *) const
	Compare a key event with an event pattern.

Additional Inherited Members
Public Slots inherited from QwtPicker
void	setEnabled (bool)
	Enable or disable the picker.

Signals inherited from QwtPicker
void	activated (bool on)
	Signal indicating when the picker has been activated.

void	selected (const QPolygon &polygon)
	Signal emitting the selected points at the end of a selection.

void	appended (const QPoint &pos)
	Signal emitted when a point has been appended to the selection.

void	moved (const QPoint &pos)
	Signal emitted whenever the last appended point of the selection has been moved.

void	removed (const QPoint &pos)
	Signal emitted whenever the last appended point of the selection has been removed.

void	changed (const QPolygon &selection)
	Signal emitted when the active selection has been changed.

Properties inherited from QwtPicker
bool	isEnabled

ResizeMode	resizeMode

DisplayMode	trackerMode

QPen	trackerPen

QFont	trackerFont

RubberBand	rubberBand

QPen	rubberBandPen

Detailed Description

A plot data picker class for displaying current y-values or nearest points.

Member Enumeration Documentation

◆ InterpolationMode

enum QwtPlotSeriesDataPicker::InterpolationMode

Interpolation modes .

Enumerator
NoInterpolation	No interpolation, use nearest data point.
LinearInterpolation	Linear interpolation between adjacent data points.

◆ PickSeriesMode

enum QwtPlotSeriesDataPicker::PickSeriesMode

Pick modes .

Enumerator
PickYValue	Pick y-value (default)
PickNearestPoint	Pick the nearest point to the mouse cursor position (this mode may be time-consuming, use with caution when there are many curve points)

◆ TextPlacement

enum QwtPlotSeriesDataPicker::TextPlacement

Text placement options .

Enumerator
TextPlaceAuto	Auto placement (top for pick y, follow mouse for pick nearest)
TextFollowOnTop	On top of the plot area (default)
TextFollowOnBottom	On bottom of the plot area.
TextFollowMouse	Follow mouse pointer.
TextOnCanvasTopRight	Text on canvas top right.
TextOnCanvasTopLeft	Text on canvas top left.
TextOnCanvasBottomRight	Text on canvas bottom right.
TextOnCanvasBottomLeft	Text on canvas bottom left.
TextOnCanvasTopAuto	Text on canvas top, left or right auto-detected based on mouse position.
TextOnCanvasBottomAuto	Text on canvas bottom, left or right auto-detected based on mouse position.

Member Function Documentation

◆ drawFeaturePoint()

void QwtPlotSeriesDataPicker::drawFeaturePoint	(	QPainter *	painter,
		const QwtPlot *	plot,
		const QwtPlotItem *	item,
		const QPointF &	itemPoint
	)		const

protectedvirtual

Draw a single feature point on the plot.

◆ drawFeaturePointSize()

int QwtPlotSeriesDataPicker::drawFeaturePointSize ( ) const

Get feature point size.

Get drawn feature point size.

◆ drawRubberBand()

void QwtPlotSeriesDataPicker::drawRubberBand ( QPainter * painter ) const

overridevirtual

Draw a rubber band, depending on rubberBand()

Reimplemented from QwtPicker.

◆ interpolationMode()

QwtPlotSeriesDataPicker::InterpolationMode QwtPlotSeriesDataPicker::interpolationMode ( ) const

Get interpolation mode.

◆ isEnableDrawFeaturePoint()

bool QwtPlotSeriesDataPicker::isEnableDrawFeaturePoint ( ) const

Check if feature point drawing is enabled.

◆ isEnableShowXValue()

bool QwtPlotSeriesDataPicker::isEnableShowXValue ( ) const

Check if showing X value is enabled.

◆ isInterpolation()

bool QwtPlotSeriesDataPicker::isInterpolation ( ) const

Check if interpolation is enabled.

◆ move()

void QwtPlotSeriesDataPicker::move ( const QPoint & pos )

overrideprotectedvirtual

Move the last point of the selection The moved() signal is emitted.

Parameters

pos	New position

See also: isActive(), begin(), end(), append()

Reimplemented from QwtPicker.

◆ nearestSearchWindowSize()

int QwtPlotSeriesDataPicker::nearestSearchWindowSize ( ) const

Get nearest search window size.

Get nearest point search window size.

◆ pickMode()

QwtPlotSeriesDataPicker::PickSeriesMode QwtPlotSeriesDataPicker::pickMode ( ) const

Get pick mode.

Get current pick mode.

◆ pickNearestPoint()

int QwtPlotSeriesDataPicker::pickNearestPoint	(	const QwtPlot *	plot,
		const QPoint &	pos,
		int	windowSize = `-5`
	)

protectedvirtual

获取绘图区域指定屏幕位置上最近的可拾取点

Parameters

plot	绘图对象
pos	屏幕位置
windowSize	窗口尺寸 0: 不使用窗口，搜索整个曲线正数: 固定的窗口大小（数据点数量）负数: 自适应窗口，使用曲线数据点总数的百分比（取绝对值，如-5表示5%,-10代表10）

Returns: 包含最近绘图项和对应数据点的配对

Note: 此函数考虑了寄生绘图，可以传入宿主绘图或寄生绘图，它会把全部绘图的数据进行获取

◆ pickYValue()

int QwtPlotSeriesDataPicker::pickYValue	(	const QwtPlot *	p,
		const QPoint &	pos,
		bool	interpolate = `false`
	)

protectedvirtual

Get all pickable Y values at a specified screen position.

◆ setDrawFeaturePointSize()

void QwtPlotSeriesDataPicker::setDrawFeaturePointSize ( int px )

Set feature point size.

Set drawn feature point size.

◆ setEnableDrawFeaturePoint()

void QwtPlotSeriesDataPicker::setEnableDrawFeaturePoint ( bool on = true )

Enable/disable feature point drawing.

◆ setEnableShowXValue()

void QwtPlotSeriesDataPicker::setEnableShowXValue ( bool on )

Enable/disable showing X value.

◆ setInterpolationMode()

void QwtPlotSeriesDataPicker::setInterpolationMode ( QwtPlotSeriesDataPicker::InterpolationMode mode )

Set interpolation mode.

◆ setNearestSearchWindowSize()

void QwtPlotSeriesDataPicker::setNearestSearchWindowSize ( int windowSize )

Set nearest search window size.

Set nearest point search window size.

◆ setPickMode()

void QwtPlotSeriesDataPicker::setPickMode ( PickSeriesMode mode )

Set pick mode.

◆ setTextAlignment()

void QwtPlotSeriesDataPicker::setTextAlignment ( Qt::Alignment al )

Set text alignment.

◆ setTextArea()

void QwtPlotSeriesDataPicker::setTextArea ( QwtPlotSeriesDataPicker::TextPlacement t )

Set text placement.

Set text display area.

◆ setTextBackgroundBrush()

void QwtPlotSeriesDataPicker::setTextBackgroundBrush ( const QBrush & br )

Set text background brush.

Set text area background brush.

◆ setTextTrackerOffset()

void QwtPlotSeriesDataPicker::setTextTrackerOffset ( const QPoint & offset )

Set the offset of tracker rectangle in TextFollowMouse mode.

◆ setTrackerPosition()

void QwtPlotSeriesDataPicker::setTrackerPosition ( const QPoint & pos )

overridevirtual

Set the tracker position manually.

Reimplemented from QwtPicker.

◆ textAlignment()

Qt::Alignment QwtPlotSeriesDataPicker::textAlignment ( ) const

Get text alignment.

◆ textArea()

QwtPlotSeriesDataPicker::TextPlacement QwtPlotSeriesDataPicker::textArea ( ) const

Get text placement.

Get text display position.

◆ textBackgroundBrush()

QBrush QwtPlotSeriesDataPicker::textBackgroundBrush ( ) const

Get text background brush.

Get text area background brush.

◆ textTrackerOffset()

QPoint QwtPlotSeriesDataPicker::textTrackerOffset ( ) const

Get the current tracker rectangle offset in TextFollowMouse mode.

◆ trackerRect()

QRect QwtPlotSeriesDataPicker::trackerRect ( const QFont & font ) const

overridevirtual

Calculate the bounding rectangle for the tracker text from the current position of the tracker.

Reimplemented from QwtPicker.

◆ trackerText()

QwtText QwtPlotSeriesDataPicker::trackerText ( const QPoint & pos ) const

overridevirtual

Return the label for a position.

Reimplemented from QwtPicker.

The documentation for this class was generated from the following files:

/home/runner/work/QWT/QWT/src/plot/qwt_plot_series_data_picker.h
/home/runner/work/QWT/QWT/src/plot/qwt_plot_series_data_picker.cpp

Classes

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ InterpolationMode

◆ PickSeriesMode

◆ TextPlacement

Member Function Documentation

◆ drawFeaturePoint()

◆ drawFeaturePointSize()

◆ drawRubberBand()

◆ interpolationMode()

◆ isEnableDrawFeaturePoint()

◆ isEnableShowXValue()

◆ isInterpolation()

◆ move()

◆ nearestSearchWindowSize()

◆ pickMode()

◆ pickNearestPoint()

◆ pickYValue()

◆ setDrawFeaturePointSize()

◆ setEnableDrawFeaturePoint()

◆ setEnableShowXValue()

◆ setInterpolationMode()

◆ setNearestSearchWindowSize()

◆ setPickMode()

◆ setTextAlignment()

◆ setTextArea()

◆ setTextBackgroundBrush()

◆ setTextTrackerOffset()

◆ setTrackerPosition()

◆ textAlignment()

◆ textArea()

◆ textBackgroundBrush()

◆ textTrackerOffset()

◆ trackerRect()

◆ trackerText()
