Base picker class specifically for canvas. More...

#include <qwt_canvas_picker.h>

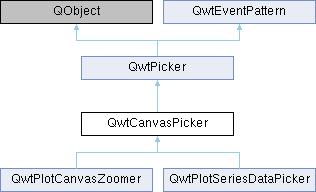

Inheritance diagram for QwtCanvasPicker:

Public Member Functions
	QwtCanvasPicker (QWidget *canvas)
	Constructor with canvas widget.

	~QwtCanvasPicker ()
	Destructor .

QwtPlot *	plot ()
	Get the associated plot.

const QwtPlot *	plot () const
	Get the associated plot (const version)

QWidget *	canvas ()
	Get the canvas widget.

const QWidget *	canvas () const
	Get the canvas widget (const version)

Public Member Functions inherited from QwtPicker
	QwtPicker (QWidget *parent)
	Constructor.

	QwtPicker (RubberBand rubberBand, DisplayMode trackerMode, QWidget *)

void	setStateMachine (QwtPickerMachine *)
	Set a state machine and delete the previous one.

const QwtPickerMachine *	stateMachine () const
	Return the assigned state machine (const)

QwtPickerMachine *	stateMachine ()
	Return the assigned state machine.

void	setRubberBand (RubberBand)
	Set the rubber band style.

RubberBand	rubberBand () const
	Return the rubber band style.

void	setTrackerMode (DisplayMode)
	Set the display mode of the tracker.

DisplayMode	trackerMode () const
	Return the tracker display mode.

void	setResizeMode (ResizeMode)
	Set the resize mode.

ResizeMode	resizeMode () const
	Return the resize mode.

void	setRubberBandPen (const QPen &)
	Set the pen for the rubber band.

QPen	rubberBandPen () const
	Return the rubber band pen.

void	setTrackerPen (const QPen &)
	Set the pen for the tracker.

QPen	trackerPen () const
	Return the tracker pen.

void	setTrackerFont (const QFont &)
	Set the font for the tracker.

QFont	trackerFont () const
	Return the tracker font.

bool	isEnabled () const
	Return true when enabled, false otherwise.

bool	isActive () const
	A picker is active between begin() and end()

virtual bool	eventFilter (QObject , QEvent ) override
	Event filter for handling events.

QWidget *	parentWidget ()
	Return the parent widget, where the selection happens.

const QWidget *	parentWidget () const
	Return the parent widget, where the selection happens (const)

virtual QPainterPath	pickArea () const
	Find the area of the observed widget, where selection might happen.

virtual void	drawRubberBand (QPainter *) const
	Draw a rubber band, depending on rubberBand()

virtual void	drawTracker (QPainter *) const
	Draw the tracker.

virtual QRegion	trackerMask () const
	Calculate the mask for the tracker overlay.

virtual QRegion	rubberBandMask () const
	Calculate the mask for the rubber band overlay.

virtual QwtText	trackerText (const QPoint &pos) const
	Return the label for a position.

virtual QRect	trackerRect (const QFont &) const
	Calculate the bounding rectangle for the tracker text from the current position of the tracker.

virtual void	setTrackerPosition (const QPoint &pos)
	Set the tracker position manually.

QPoint	trackerPosition () const
	Return the current position of the tracker.

QPolygon	selection () const
	Return the selected points.

void	update ()

void	setActive (bool on)

Public Member Functions inherited from QwtEventPattern
	QwtEventPattern ()
	Constructor.

virtual	~QwtEventPattern ()
	Destructor .

void	initMousePattern (int numButtons)
	Set default mouse patterns depending on the number of mouse buttons.

void	initKeyPattern ()
	Set default key patterns.

void	setMousePattern (MousePatternCode, Qt::MouseButton button, Qt::KeyboardModifiers=Qt::NoModifier)
	Change one mouse pattern.

void	setKeyPattern (KeyPatternCode, int key, Qt::KeyboardModifiers modifiers=Qt::NoModifier)
	Change one key pattern.

void	setMousePattern (const QVector< MousePattern > &)
	Change the mouse event patterns.

void	setKeyPattern (const QVector< KeyPattern > &)
	Change the key event patterns.

const QVector< MousePattern > &	mousePattern () const
	Return the mouse pattern vector.

const QVector< KeyPattern > &	keyPattern () const
	Return the key pattern vector.

QVector< MousePattern > &	mousePattern ()
	Return the mouse pattern vector.

QVector< KeyPattern > &	keyPattern ()
	Return the key pattern vector.

bool	mouseMatch (MousePatternCode, const QMouseEvent *) const
	Compare a mouse event with an event pattern.

bool	keyMatch (KeyPatternCode, const QKeyEvent *) const
	Compare a key event with an event pattern.

Additional Inherited Members
Public Types inherited from QwtPicker
enum	RubberBand { NoRubberBand = 0 , HLineRubberBand , VLineRubberBand , CrossRubberBand , RectRubberBand , EllipseRubberBand , PolygonRubberBand , UserRubberBand = 100 }
	Rubber band style. More...

enum	DisplayMode { AlwaysOff , AlwaysOn , ActiveOnly }
	Display mode. More...

enum	ResizeMode { Stretch , KeepSize }
	Controls what to do with the selected points when the observed widget is resized. More...

Public Types inherited from QwtEventPattern
enum	MousePatternCode { MouseSelect1 , MouseSelect2 , MouseSelect3 , MouseSelect4 , MouseSelect5 , MouseSelect6 , MousePatternCount }
	Symbolic mouse input codes. More...

enum	KeyPatternCode { KeySelect1 , KeySelect2 , KeyAbort , KeyLeft , KeyRight , KeyUp , KeyDown , KeyRedo , KeyUndo , KeyHome , KeyPatternCount }
	Symbolic keyboard input codes. More...

Public Slots inherited from QwtPicker
void	setEnabled (bool)
	Enable or disable the picker.

Signals inherited from QwtPicker
void	activated (bool on)
	Signal indicating when the picker has been activated.

void	selected (const QPolygon &polygon)
	Signal emitting the selected points at the end of a selection.

void	appended (const QPoint &pos)
	Signal emitted when a point has been appended to the selection.

void	moved (const QPoint &pos)
	Signal emitted whenever the last appended point of the selection has been moved.

void	removed (const QPoint &pos)
	Signal emitted whenever the last appended point of the selection has been removed.

void	changed (const QPolygon &selection)
	Signal emitted when the active selection has been changed.

Protected Member Functions inherited from QwtPicker
virtual QPolygon	adjustedPoints (const QPolygon &) const
	Map the pickedPoints() into a selection()

virtual void	transition (const QEvent *)
	Passes an event to the state machine and executes the resulting commands.

virtual void	begin ()
	Open a selection setting the state to active.

virtual void	append (const QPoint &)
	Append a point to the selection and update rubber band and tracker.

virtual void	move (const QPoint &)
	Move the last point of the selection The moved() signal is emitted.

virtual void	remove ()
	Remove the last point of the selection The removed() signal is emitted.

virtual bool	end (bool ok=true)
	Close a selection setting the state to inactive.

virtual bool	accept (QPolygon &) const
	Validate and fix up the selection.

virtual void	reset ()
	Reset the state machine and terminate ( end(false) ) the selection.

virtual void	widgetMousePressEvent (QMouseEvent *)
	Handle a mouse press event for the observed widget.

virtual void	widgetMouseReleaseEvent (QMouseEvent *)
	Handle a mouse release event for the observed widget.

virtual void	widgetMouseDoubleClickEvent (QMouseEvent *)
	Handle mouse double click event for the observed widget.

virtual void	widgetMouseMoveEvent (QMouseEvent *)
	Handle a mouse move event for the observed widget.

virtual void	widgetWheelEvent (QWheelEvent *)
	Handle a wheel event for the observed widget.

virtual void	widgetKeyPressEvent (QKeyEvent *)
	Handle a key press event for the observed widget.

virtual void	widgetKeyReleaseEvent (QKeyEvent *)
	Handle a key release event for the observed widget.

virtual void	widgetEnterEvent (QEvent *)
	Handle a enter event for the observed widget.

virtual void	widgetLeaveEvent (QEvent *)
	Handle a leave event for the observed widget.

virtual void	stretchSelection (const QSize &oldSize, const QSize &newSize)
	Scale the selection by the ratios of oldSize and newSize The changed() signal is emitted.

virtual void	updateDisplay ()
	Update the state of rubber band and tracker label.

const QwtWidgetOverlay *	rubberBandOverlay () const
	Return the overlay displaying the rubber band.

const QwtWidgetOverlay *	trackerOverlay () const
	Return the overlay displaying the tracker text.

const QPolygon &	pickedPoints () const
	Return the points that have been collected so far.

Protected Member Functions inherited from QwtEventPattern
virtual bool	mouseMatch (const MousePattern &, const QMouseEvent *) const
	Compare a mouse event with an event pattern.

virtual bool	keyMatch (const KeyPattern &, const QKeyEvent *) const
	Compare a key event with an event pattern.

Properties inherited from QwtPicker
bool	isEnabled

ResizeMode	resizeMode

DisplayMode	trackerMode

QPen	trackerPen

QFont	trackerFont

RubberBand	rubberBand

QPen	rubberBandPen

Detailed Description

Base picker class specifically for canvas.

Constructor & Destructor Documentation

◆ QwtCanvasPicker()

QwtCanvasPicker::QwtCanvasPicker ( QWidget * canvas )

explicit

Constructor with canvas widget.

◆ ~QwtCanvasPicker()

QwtCanvasPicker::~QwtCanvasPicker ( )

Destructor .

Member Function Documentation

◆ canvas() [1/2]

QWidget * QwtCanvasPicker::canvas ( )

Get the canvas widget.

◆ canvas() [2/2]

const QWidget * QwtCanvasPicker::canvas ( ) const

Get the canvas widget (const version)

◆ plot() [1/2]

QwtPlot * QwtCanvasPicker::plot ( )

Get the associated plot.

◆ plot() [2/2]

const QwtPlot * QwtCanvasPicker::plot ( ) const

Get the associated plot (const version)

The documentation for this class was generated from the following files:

/home/runner/work/QWT/QWT/src/plot/qwt_canvas_picker.h
/home/runner/work/QWT/QWT/src/plot/qwt_canvas_picker.cpp
