A collection of event patterns. More...

#include <qwt_event_pattern.h>

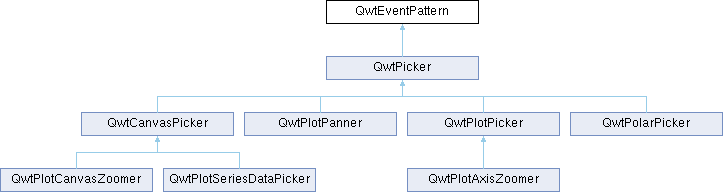

Inheritance diagram for QwtEventPattern:

Classes
class	KeyPattern
	A pattern for key events. More...

class	MousePattern
	A pattern for mouse events. More...

Public Types
enum	MousePatternCode { MouseSelect1 , MouseSelect2 , MouseSelect3 , MouseSelect4 , MouseSelect5 , MouseSelect6 , MousePatternCount }
	Symbolic mouse input codes. More...

enum	KeyPatternCode { KeySelect1 , KeySelect2 , KeyAbort , KeyLeft , KeyRight , KeyUp , KeyDown , KeyRedo , KeyUndo , KeyHome , KeyPatternCount }
	Symbolic keyboard input codes. More...

Public Member Functions
	QwtEventPattern ()
	Constructor.

virtual	~QwtEventPattern ()
	Destructor.

void	initMousePattern (int numButtons)
	Set default mouse patterns depending on the number of mouse buttons.

void	initKeyPattern ()
	Set default key patterns.

void	setMousePattern (MousePatternCode, Qt::MouseButton button, Qt::KeyboardModifiers=Qt::NoModifier)
	Change one mouse pattern.

void	setKeyPattern (KeyPatternCode, int key, Qt::KeyboardModifiers modifiers=Qt::NoModifier)
	Change one key pattern.

void	setMousePattern (const QVector< MousePattern > &)
	Change the mouse event patterns.

void	setKeyPattern (const QVector< KeyPattern > &)
	Change the key event patterns.

const QVector< MousePattern > &	mousePattern () const
	Return the mouse pattern vector.

const QVector< KeyPattern > &	keyPattern () const
	Return the key pattern vector.

QVector< MousePattern > &	mousePattern ()
	Return the mouse pattern vector.

QVector< KeyPattern > &	keyPattern ()
	Return the key pattern vector.

bool	mouseMatch (MousePatternCode, const QMouseEvent *) const
	Compare a mouse event with an event pattern.

bool	keyMatch (KeyPatternCode, const QKeyEvent *) const
	Compare a key event with an event pattern.

Protected Member Functions
virtual bool	mouseMatch (const MousePattern &, const QMouseEvent *) const
	Compare a mouse event with an event pattern.

virtual bool	keyMatch (const KeyPattern &, const QKeyEvent *) const
	Compare a key event with an event pattern.

Detailed Description

A collection of event patterns.

QwtEventPattern introduces a level of indirection for mouse and keyboard inputs. Those are represented by symbolic names, so the application code can be configured by individual mappings.

See also: QwtPicker, QwtPickerMachine, QwtPlotZoomer

Member Enumeration Documentation

◆ KeyPatternCode

enum QwtEventPattern::KeyPatternCode

Symbolic keyboard input codes.

Individual settings can be configured using setKeyPattern()

See also: setKeyPattern(), setMousePattern()

Enumerator
KeySelect1	Qt::Key_Return.
KeySelect2	Qt::Key_Space.
KeyAbort	Qt::Key_Escape.
KeyLeft	Qt::Key_Left.
KeyRight	Qt::Key_Right.
KeyUp	Qt::Key_Up.
KeyDown	Qt::Key_Down.
KeyRedo	Qt::Key_Plus.
KeyUndo	Qt::Key_Minus.
KeyHome	Qt::Key_Escape.
KeyPatternCount	Number of key patterns.

◆ MousePatternCode

enum QwtEventPattern::MousePatternCode

Symbolic mouse input codes.

QwtEventPattern implements 3 different settings for mice with 1, 2, or 3 buttons that can be activated using initMousePattern(). The default setting is for 3 button mice.

Individual settings can be configured using setMousePattern().

See also: initMousePattern(), setMousePattern(), setKeyPattern()

Enumerator
MouseSelect1	The default setting for 1, 2 and 3 button mice is: Qt::LeftButton Qt::LeftButton Qt::LeftButton
MouseSelect2	The default setting for 1, 2 and 3 button mice is: Qt::LeftButton + Qt::ControlModifier Qt::RightButton Qt::RightButton
MouseSelect3	The default setting for 1, 2 and 3 button mice is: Qt::LeftButton + Qt::AltModifier Qt::LeftButton + Qt::AltModifier Qt::MidButton
MouseSelect4	The default setting for 1, 2 and 3 button mice is: Qt::LeftButton + Qt::ShiftModifier Qt::LeftButton + Qt::ShiftModifier Qt::LeftButton + Qt::ShiftModifier
MouseSelect5	The default setting for 1, 2 and 3 button mice is: Qt::LeftButton + Qt::ControlButton \| Qt::ShiftModifier Qt::RightButton + Qt::ShiftModifier Qt::RightButton + Qt::ShiftModifier
MouseSelect6	The default setting for 1, 2 and 3 button mice is: Qt::LeftButton + Qt::AltModifier + Qt::ShiftModifier Qt::LeftButton + Qt::AltModifier \| Qt::ShiftModifier Qt::MidButton + Qt::ShiftModifier
MousePatternCount	Number of mouse patterns.

Constructor & Destructor Documentation

◆ QwtEventPattern()

QwtEventPattern::QwtEventPattern ( )

Constructor.

Initializes mouse and key patterns with default settings.

See also: MousePatternCode, KeyPatternCode

Member Function Documentation

◆ initKeyPattern()

void QwtEventPattern::initKeyPattern ( )

Set default key patterns.

See also: KeyPatternCode

◆ initMousePattern()

void QwtEventPattern::initMousePattern ( int numButtons )

Set default mouse patterns depending on the number of mouse buttons.

Parameters

[in] numButtons Number of mouse buttons (<= 3)

See also: MousePatternCode

◆ keyMatch() [1/2]

bool QwtEventPattern::keyMatch	(	const KeyPattern &	pattern,
		const QKeyEvent *	event
	)		const

protectedvirtual

Compare a key event with an event pattern.

A key event matches the pattern when both have the same key value and in the state value the same key flags (Qt::KeyButtonMask) are set.

Parameters

pattern	Key event pattern
event	Key event

Returns: true if matches

See also: mouseMatch()

◆ keyMatch() [2/2]

bool QwtEventPattern::keyMatch	(	KeyPatternCode	code,
		const QKeyEvent *	event
	)		const

Compare a key event with an event pattern.

A key event matches the pattern when both have the same key value and in the state value the same key flags (Qt::KeyButtonMask) are set.

Parameters

[in]	code	Index of the event pattern
[in]	event	Key event

Returns: true if matches, false otherwise

See also: mouseMatch()

◆ keyPattern() [1/2]

QVector< QwtEventPattern::KeyPattern > & QwtEventPattern::keyPattern ( )

Return the key pattern vector.

Returns: Key pattern vector (mutable)

◆ keyPattern() [2/2]

const QVector< QwtEventPattern::KeyPattern > & QwtEventPattern::keyPattern ( ) const

Return the key pattern vector.

Returns: Key pattern vector (const)

◆ mouseMatch() [1/2]

bool QwtEventPattern::mouseMatch	(	const MousePattern &	pattern,
		const QMouseEvent *	event
	)		const

protectedvirtual

Compare a mouse event with an event pattern.

A mouse event matches the pattern when both have the same button value and in the state value the same key flags(Qt::KeyButtonMask) are set.

Parameters

pattern	Mouse event pattern
event	Mouse event

Returns: true if matches

See also: keyMatch()

◆ mouseMatch() [2/2]

bool QwtEventPattern::mouseMatch	(	MousePatternCode	code,
		const QMouseEvent *	event
	)		const

Compare a mouse event with an event pattern.

A mouse event matches the pattern when both have the same button value and in the state value the same key flags(Qt::KeyButtonMask) are set.

Parameters

[in]	code	Index of the event pattern
[in]	event	Mouse event

Returns: true if matches, false otherwise

See also: keyMatch()

◆ mousePattern() [1/2]

QVector< QwtEventPattern::MousePattern > & QwtEventPattern::mousePattern ( )

Return the mouse pattern vector.

Returns: Mouse pattern vector (mutable)

◆ mousePattern() [2/2]

const QVector< QwtEventPattern::MousePattern > & QwtEventPattern::mousePattern ( ) const

Return the mouse pattern vector.

Returns: Mouse pattern vector (const)

◆ setKeyPattern() [1/2]

void QwtEventPattern::setKeyPattern ( const QVector< KeyPattern > & pattern )

Change the key event patterns.

Parameters

[in] pattern Vector of key patterns

◆ setKeyPattern() [2/2]

void QwtEventPattern::setKeyPattern	(	KeyPatternCode	pattern,
		int	key,
		Qt::KeyboardModifiers	modifiers = `Qt::NoModifier`
	)

Change one key pattern.

Parameters

[in]	pattern	Index of the pattern
[in]	key	Key code
[in]	modifiers	Keyboard modifiers

See also: QKeyEvent

◆ setMousePattern() [1/2]

void QwtEventPattern::setMousePattern ( const QVector< MousePattern > & pattern )

Change the mouse event patterns.

Parameters

[in] pattern Vector of mouse patterns

◆ setMousePattern() [2/2]

void QwtEventPattern::setMousePattern	(	MousePatternCode	pattern,
		Qt::MouseButton	button,
		Qt::KeyboardModifiers	modifiers = `Qt::NoModifier`
	)

Change one mouse pattern.

Parameters

[in]	pattern	Index of the pattern
[in]	button	Mouse button
[in]	modifiers	Keyboard modifiers

See also: QMouseEvent

The documentation for this class was generated from the following files:

/home/runner/work/QWT/QWT/src/plot/qwt_event_pattern.h
/home/runner/work/QWT/QWT/src/plot/qwt_event_pattern.cpp
