QwtPlotMultiBarChart displays a series of samples that consist each of a set of values 更多...

#include <qwt_plot_multi_barchart.h>

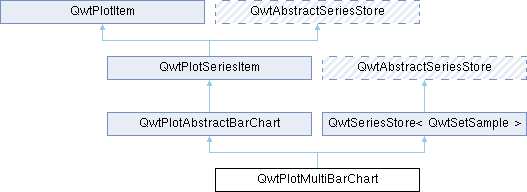

类 QwtPlotMultiBarChart 继承关系图:

类
class	PrivateData

Public 类型
enum	ChartStyle { Grouped , Stacked }
	Chart styles 更多...

Public 类型继承自 QwtPlotAbstractBarChart
enum	LayoutPolicy { AutoAdjustSamples , ScaleSamplesToAxes , ScaleSampleToCanvas , FixedSampleSize }
	Mode how to calculate the bar width 更多...

Public 类型继承自 QwtPlotItem
enum	RttiValues { Rtti_PlotItem = 0 , Rtti_PlotGrid , Rtti_PlotScale , Rtti_PlotLegend , Rtti_PlotMarker , Rtti_PlotCurve , Rtti_PlotSpectroCurve , Rtti_PlotIntervalCurve , Rtti_PlotHistogram , Rtti_PlotSpectrogram , Rtti_PlotGraphic , Rtti_PlotTradingCurve , Rtti_PlotBarChart , Rtti_PlotMultiBarChart , Rtti_PlotShape , Rtti_PlotTextLabel , Rtti_PlotZone , Rtti_PlotVectorField , Rtti_PlotArrowMarker , Rtti_PlotBoxChart , Rtti_PlotUserItem = 1000 }
	Runtime type information 更多...

enum	ItemAttribute { Legend = 0x01 , AutoScale = 0x02 , Margins = 0x04 }
	Plot Item Attributes 更多...

enum	ItemInterest { ScaleInterest = 0x01 , LegendInterest = 0x02 }
	Plot Item Interests 更多...

enum	RenderHint { RenderAntialiased = 0x1 }
	Render hints 更多...

Public 成员函数
	QwtPlotMultiBarChart (const QString &title=QString())
	Constructor

	QwtPlotMultiBarChart (const QwtText &title)
	Constructor with title

	~QwtPlotMultiBarChart () override
	Destructor

virtual int	rtti () const override
	Get the runtime type information

void	attach (QwtPlot *plot) override
	Attach to a plot (applies color cycle to symbols if none user-set)

void	setBarTitles (const QList< QwtText > &)
	Set the bar titles

QList< QwtText >	barTitles () const
	Get the bar titles

void	setSamples (const QVector< QwtSetSample > &)
	Set samples from a vector of QwtSetSample

void	setSamples (const QVector< QVector< double > > &)
	Set samples from a vector of vectors

void	setSamples (QwtSeriesData< QwtSetSample > *)
	Set samples from a series data

void	setStyle (ChartStyle style)
	Set the chart style

ChartStyle	style () const
	Get the chart style

void	setSymbol (int valueIndex, QwtColumnSymbol *)
	Set the symbol for a specific value index

const QwtColumnSymbol *	symbol (int valueIndex) const
	Get the symbol for a specific value index

void	resetSymbolMap ()
	Reset the symbol map

virtual void	drawSeries (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int from, int to) const override
	Draw the series

virtual QRectF	boundingRect () const override
	Get the bounding rectangle

virtual QList< QwtLegendData >	legendData () const override
	Get the legend data

virtual QwtGraphic	legendIcon (int index, const QSizeF &) const override
	Get the legend icon

Public 成员函数继承自 QwtPlotAbstractBarChart
	QwtPlotAbstractBarChart (const QwtText &title)
	Constructor

void	setLayoutPolicy (LayoutPolicy)
	Set the layout policy

LayoutPolicy	layoutPolicy () const
	Get the layout policy

void	setLayoutHint (double)
	Set the layout hint

double	layoutHint () const
	Get the layout hint

void	setSpacing (int)
	Set the spacing between bars

int	spacing () const
	Get the spacing between bars

void	setMargin (int)
	Set the margin around the bars

int	margin () const
	Get the margin around the bars

void	setBaseline (double)
	Set the baseline value

double	baseline () const
	Get the baseline value

virtual void	getCanvasMarginHint (const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, double &left, double &top, double &right, double &bottom) const override
	Calculate a hint for the canvas margin

Public 成员函数继承自 QwtPlotSeriesItem
	QwtPlotSeriesItem (const QString &title=QString())

	QwtPlotSeriesItem (const QwtText &title)
	Constructor

void	setOrientation (Qt::Orientation)
	Set the orientation of the item

Qt::Orientation	orientation () const
	Get the orientation of the plot item

virtual void	draw (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect) const override
	Draw the complete series

virtual void	updateScaleDiv (const QwtScaleDiv &, const QwtScaleDiv &) override
	Update the scale divisions

Public 成员函数继承自 QwtPlotItem
	QwtPlotItem ()
	Default constructor

	QwtPlotItem (const QString &title)
	Constructor with title as QString

	QwtPlotItem (const QwtText &title)
	Constructor with title as QwtText

virtual	~QwtPlotItem ()
	Destructor

void	detach ()
	Detach the item from the plot

QwtPlot *	plot () const
	Get the plot the item is attached to

void	setTitle (const QString &title)
	Set the title using a QString

void	setTitle (const QwtText &title)
	Set the title using a QwtText

const QwtText &	title () const
	Get the title

void	setItemAttribute (ItemAttribute, bool on=true)
	Set an item attribute

bool	testItemAttribute (ItemAttribute) const
	Test an item attribute

void	setItemInterest (ItemInterest, bool on=true)
	Set an item interest

bool	testItemInterest (ItemInterest) const
	Test an item interest

void	setRenderHint (RenderHint, bool on=true)
	Set a render hint

bool	testRenderHint (RenderHint) const
	Test a render hint

void	setRenderThreadCount (uint numThreads)
	Set the number of render threads

uint	renderThreadCount () const
	Get the number of render threads

void	setLegendIconSize (const QSize &)
	Set the legend icon size

QSize	legendIconSize () const
	Get the legend icon size

double	z () const
	Get the z-value

void	setZ (double z)
	Set the z-value

void	show ()
	Show the item

void	hide ()
	Hide the item

virtual void	setVisible (bool)
	Set the visibility

bool	isVisible () const
	Check if the item is visible

void	setAxes (QwtAxisId xAxis, QwtAxisId yAxis)
	Set both axes

void	setXAxis (QwtAxisId)
	Set the x-axis

QwtAxisId	xAxis () const
	Get the x-axis

void	setYAxis (QwtAxisId)
	Set the y-axis

QwtAxisId	yAxis () const
	Get the y-axis

virtual void	itemChanged ()
	Notify the plot that the item has changed

virtual void	legendChanged ()
	Notify the item that the legend has changed

virtual void	updateLegend (const QwtPlotItem *, const QList< QwtLegendData > &)
	Update the item with changes of the legend

QRectF	scaleRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the scale rectangle

QRectF	paintRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the paint rectangle

Public 成员函数继承自 QwtSeriesStore< QwtSetSample >
void	setData (QwtSeriesData< QwtSetSample > *series)

QwtSeriesData< QwtSetSample > *	data ()

const QwtSeriesData< QwtSetSample > *	data () const

QwtSetSample	sample (size_t index) const

virtual size_t	dataSize () const override

virtual QRectF	dataRect () const override

virtual void	setRectOfInterest (const QRectF &rect) override
	Set a the "rectangle of interest" for the stored series

QwtSeriesData< QwtSetSample > *	swapData (QwtSeriesData< QwtSetSample > *series)

Protected 成员函数
QwtColumnSymbol *	symbol (int valueIndex)
	Get the symbol for a specific value index

virtual QwtColumnSymbol *	specialSymbol (int sampleIndex, int valueIndex) const
	Get a special symbol for a specific sample and value index

virtual void	drawSample (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, const QwtInterval &boundingInterval, int index, const QwtSetSample &) const
	Draw a sample

virtual void	drawBar (QPainter *, int sampleIndex, int valueIndex, const QwtColumnRect &) const
	Draw a bar

void	drawStackedBars (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int index, double sampleWidth, const QwtSetSample &) const
	Draw stacked bars

void	drawGroupedBars (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int index, double sampleWidth, const QwtSetSample &) const
	Draw grouped bars

Protected 成员函数继承自 QwtPlotAbstractBarChart
double	sampleWidth (const QwtScaleMap &map, double canvasSize, double boundingSize, double value) const
	Calculate the width for a sample in paint device coordinates

Protected 成员函数继承自 QwtPlotSeriesItem
virtual void	dataChanged () override
	dataChanged() indicates, that the series has been changed.

Protected 成员函数继承自 QwtPlotItem
QwtGraphic	defaultIcon (const QBrush &, const QSizeF &) const
	Create a default icon

详细描述

QwtPlotMultiBarChart displays a series of samples that consist each of a set of values

Each value is displayed as a bar, the bars of each set can be organized side by side or accumulated.

Each bar of a set is rendered by a QwtColumnSymbol, that is set by setSymbol(). The bars of different sets use the same symbols. Exceptions are possible by overloading specialSymbol() or overloading drawBar().

Depending on its orientation() the bars are displayed horizontally or vertically. The bars cover the interval between the baseline() and the value.

In opposite to most other plot items, QwtPlotMultiBarChart returns more than one entry for the legend - one for each symbol.

参见: QwtPlotBarChart, QwtPlotHistogram; QwtPlotSeriesItem::orientation(), QwtPlotAbstractBarChart::baseline()

成员枚举类型说明

◆ ChartStyle

enum QwtPlotMultiBarChart::ChartStyle

Chart styles

The default setting is QwtPlotMultiBarChart::Grouped.

参见: setStyle(), style()

枚举值
Grouped	The bars of a set are displayed side by side
Stacked	The bars are displayed on top of each other accumulating to a single bar. All values of a set need to have the same sign.

构造及析构函数说明

◆ QwtPlotMultiBarChart()

QwtPlotMultiBarChart::QwtPlotMultiBarChart ( const QwtText & title )

explicit

Constructor with title

Constructor

参数

[in] title Title of the chart

Constructor

参数

[in] title Title of the chart

Destructor

成员函数说明

◆ attach()

void QwtPlotMultiBarChart::attach ( QwtPlot * plot )

overridevirtual

Attach to a plot (applies color cycle to symbols if none user-set)

Attach the multi bar chart to a plot

If no symbols have been set by the user, the chart automatically creates colored symbols from the plot's color cycle. The number of value indices is determined from the first sample.

参数

plot	Plot to attach to (nullptr to detach)

重载 QwtPlotItem .

◆ barTitles()

QList< QwtText > QwtPlotMultiBarChart::barTitles ( ) const

Get the bar titles

返回: Bar titles

参见: setBarTitles(), legendData()

◆ boundingRect()

QRectF QwtPlotMultiBarChart::boundingRect ( ) const

overridevirtual

Get the bounding rectangle

Get the bounding rectangle of all samples

返回: Bounding rectangle of all samples. For an empty series the rectangle is invalid.

重载 QwtPlotSeriesItem .

◆ drawBar()

void QwtPlotMultiBarChart::drawBar	(	QPainter *	painter,
		int	sampleIndex,
		int	valueIndex,
		const QwtColumnRect &	rect
	)		const

protectedvirtual

Draw a bar

参数

painter	Painter
sampleIndex	Index of the sample - might be -1 when the bar is painted for the legend
valueIndex	Index of a value in a set
rect	Directed target rectangle for the bar

参见: drawSeries()

◆ drawGroupedBars()

void QwtPlotMultiBarChart::drawGroupedBars	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	index,
		double	sampleWidth,
		const QwtSetSample &	sample
	)		const

protected

Draw grouped bars

Draw a grouped sample

参数

painter	Painter
xMap	x map
yMap	y map
canvasRect	Contents rectangle of the canvas
index	Index of the sample to be painted
sampleWidth	Bounding width for all bars of the sample
sample	Sample

参见: drawSeries(), sampleWidth()

◆ drawSample()

void QwtPlotMultiBarChart::drawSample	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		const QwtInterval &	boundingInterval,
		int	index,
		const QwtSetSample &	sample
	)		const

protectedvirtual

Draw a sample

参数

painter	Painter
xMap	x map
yMap	y map
canvasRect	Contents rectangle of the canvas
boundingInterval	Bounding interval of sample values
index	Index of the sample to be painted
sample	Sample value

参见: drawSeries()

◆ drawSeries()

void QwtPlotMultiBarChart::drawSeries	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	from,
		int	to
	)		const

overridevirtual

Draw the series

Draw an interval of the bar chart

参数

[in]	painter	Painter
[in]	xMap	Maps x-values into pixel coordinates
[in]	yMap	Maps y-values into pixel coordinates
[in]	canvasRect	Contents rectangle of the canvas
[in]	from	Index of the first point to be painted
[in]	to	Index of the last point to be painted. If to < 0, the curve will be painted to its last point.

参见: drawSample()

实现了 QwtPlotSeriesItem.

◆ drawStackedBars()

void QwtPlotMultiBarChart::drawStackedBars	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	index,
		double	sampleWidth,
		const QwtSetSample &	sample
	)		const

protected

Draw stacked bars

Draw a stacked sample

参数

painter	Painter
xMap	x map
yMap	y map
canvasRect	Contents rectangle of the canvas
index	Index of the sample to be painted
sampleWidth	Width of the bars
sample	Sample

参见: drawSeries(), sampleWidth()

◆ legendData()

QList< QwtLegendData > QwtPlotMultiBarChart::legendData ( ) const

overridevirtual

Get the legend data

Get information to be displayed on the legend

The chart is represented by a list of entries - one for each bar title. Each element contains a bar title and an icon showing its corresponding bar.

返回: List of legend data entries

参见: barTitles(), legendIcon(), legendIconSize()

重载 QwtPlotItem .

◆ legendIcon()

QwtGraphic QwtPlotMultiBarChart::legendIcon	(	int	index,
		const QSizeF &	size
	)		const

overridevirtual

Get the legend icon

Get icon for representing a bar on the legend

参数

[in]	index	Index of the bar
[in]	size	Icon size

返回: An icon showing a bar

参见: drawBar(), legendData()

重载 QwtPlotItem .

◆ resetSymbolMap()

void QwtPlotMultiBarChart::resetSymbolMap ( )

Reset the symbol map

Remove all symbols from the symbol map

◆ rtti()

int QwtPlotMultiBarChart::rtti ( ) const

overridevirtual

Get the runtime type information

返回: QwtPlotItem::Rtti_PlotMultiBarChart

重载 QwtPlotItem .

◆ setBarTitles()

void QwtPlotMultiBarChart::setBarTitles ( const QList< QwtText > & titles )

Set the bar titles

Set the titles for the bars

The titles are used for the legend.

参数

[in] titles Bar titles

参见: barTitles(), legendData()

◆ setSamples() [1/3]

void QwtPlotMultiBarChart::setSamples ( const QVector< QVector< double > > & samples )

Set samples from a vector of vectors

Initialize data with an array of samples

参数

[in] samples Vector of vectors containing values

◆ setSamples() [2/3]

void QwtPlotMultiBarChart::setSamples ( const QVector< QwtSetSample > & samples )

Set samples from a vector of QwtSetSample

Initialize data with an array of samples

参数

[in] samples Vector of samples

◆ setSamples() [3/3]

void QwtPlotMultiBarChart::setSamples ( QwtSeriesData< QwtSetSample > * data )

Set samples from a series data

Assign a series of samples

setSamples() is just a wrapper for setData() without any additional value - beside that it is easier to find for the developer.

参数

[in] data Data

警告: The item takes ownership of the data object, deleting it when its not used anymore.

◆ setStyle()

void QwtPlotMultiBarChart::setStyle ( ChartStyle style )

Set the chart style

Set the style of the chart

参数

[in] style Chart style

参见: style()

◆ setSymbol()

void QwtPlotMultiBarChart::setSymbol	(	int	valueIndex,
		QwtColumnSymbol *	symbol
	)

Set the symbol for a specific value index

Add a symbol to the symbol map

Assign a default symbol for drawing the bar representing all values with the same index in a set.

参数

[in]	valueIndex	Index of a value in a set
[in]	symbol	Symbol used for drawing a bar

参见: symbol(), resetSymbolMap(), specialSymbol()

◆ specialSymbol()

QwtColumnSymbol * QwtPlotMultiBarChart::specialSymbol	(	int	sampleIndex,
		int	valueIndex
	)		const

protectedvirtual

Get a special symbol for a specific sample and value index

Create a symbol for special values

Usually the symbols for displaying a bar are set by setSymbols() and common for all sets. By overloading specialSymbol() it is possible to create a temporary symbol() for displaying a special value.

The symbol has to be created by new each time specialSymbol() is called. As soon as the symbol is painted this symbol gets deleted.

When no symbol ( nullptr ) is returned, the value will be displayed with the standard symbol that is used for all symbols with the same valueIndex.

参数

sampleIndex	Index of the sample
valueIndex	Index of the value in the set

返回: nullptr, meaning that the value is not special

◆ style()

QwtPlotMultiBarChart::ChartStyle QwtPlotMultiBarChart::style ( ) const

Get the chart style

Get the style of the chart

返回: Style of the chart

参见: setStyle()

◆ symbol() [1/2]

QwtColumnSymbol * QwtPlotMultiBarChart::symbol ( int valueIndex )

protected

Get the symbol for a specific value index

Find a symbol in the symbol map

参数

valueIndex Index of a value in a set

返回: The symbol, that had been set by setSymbol() or nullptr.

参见: setSymbol(), specialSymbol(), drawBar()

◆ symbol() [2/2]

const QwtColumnSymbol * QwtPlotMultiBarChart::symbol ( int valueIndex ) const

Get the symbol for a specific value index

Find a symbol in the symbol map

参数

[in] valueIndex Index of a value in a set

返回: The symbol that had been set by setSymbol() or nullptr

参见: setSymbol(), specialSymbol(), drawBar()

该类的文档由以下文件生成:

/home/runner/work/QWT/QWT/src/plot/qwt_plot_multi_barchart.h
/home/runner/work/QWT/QWT/src/plot/qwt_plot_multi_barchart.cpp

类

Public 类型

Public 成员函数

Protected 成员函数

详细描述

成员枚举类型说明

◆ ChartStyle

构造及析构函数说明

◆ QwtPlotMultiBarChart()

成员函数说明

◆ attach()

◆ barTitles()

◆ boundingRect()

◆ drawBar()

◆ drawGroupedBars()

◆ drawSample()

◆ drawSeries()

◆ drawStackedBars()

◆ legendData()

◆ legendIcon()

◆ resetSymbolMap()

◆ rtti()

◆ setBarTitles()

◆ setSamples() [1/3]

◆ setSamples() [2/3]

◆ setSamples() [3/3]

◆ setStyle()

◆ setSymbol()

◆ specialSymbol()

◆ style()

◆ symbol() [1/2]

◆ symbol() [2/2]
