QwtPlotBarChart displays a series of values as bars 更多...

#include <qwt_plot_barchart.h>

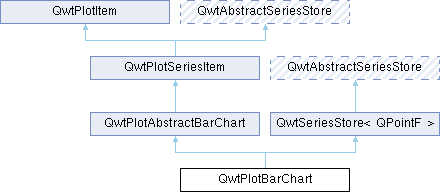

类 QwtPlotBarChart 继承关系图:

类
class	PrivateData

Public 类型
enum	LegendMode { LegendChartTitle , LegendBarTitles }
	Legend modes 更多...

Public 类型继承自 QwtPlotAbstractBarChart
enum	LayoutPolicy { AutoAdjustSamples , ScaleSamplesToAxes , ScaleSampleToCanvas , FixedSampleSize }
	Mode how to calculate the bar width 更多...

Public 类型继承自 QwtPlotItem
enum	RttiValues { Rtti_PlotItem = 0 , Rtti_PlotGrid , Rtti_PlotScale , Rtti_PlotLegend , Rtti_PlotMarker , Rtti_PlotCurve , Rtti_PlotSpectroCurve , Rtti_PlotIntervalCurve , Rtti_PlotHistogram , Rtti_PlotSpectrogram , Rtti_PlotGraphic , Rtti_PlotTradingCurve , Rtti_PlotBarChart , Rtti_PlotMultiBarChart , Rtti_PlotShape , Rtti_PlotTextLabel , Rtti_PlotZone , Rtti_PlotVectorField , Rtti_PlotArrowMarker , Rtti_PlotBoxChart , Rtti_PlotUserItem = 1000 }
	Runtime type information 更多...

enum	ItemAttribute { Legend = 0x01 , AutoScale = 0x02 , Margins = 0x04 }
	Plot Item Attributes 更多...

enum	ItemInterest { ScaleInterest = 0x01 , LegendInterest = 0x02 }
	Plot Item Interests 更多...

enum	RenderHint { RenderAntialiased = 0x1 }
	Render hints 更多...

Public 成员函数
	QwtPlotBarChart (const QString &title=QString())

	QwtPlotBarChart (const QwtText &title)
	Constructor

virtual int	rtti () const override
	Get the runtime type information

void	attach (QwtPlot *plot) override
	Attach the bar chart to a plot

void	setSamples (const QVector< QPointF > &)
	Initialize data with an array of points

void	setSamples (const QVector< double > &)
	Initialize data with an array of doubles

void	setSamples (QwtSeriesData< QPointF > *)
	Assign a series of samples

void	setSymbol (QwtColumnSymbol *)
	Assign a symbol

const QwtColumnSymbol *	symbol () const
	Get the current symbol

void	setPen (const QPen &p)
	Set the bar symbol pen

QPen	pen () const
	Get the bar symbol pen

void	setBrush (const QBrush &b)
	Set the bar symbol brush

QBrush	brush () const
	Get the bar symbol brush

void	setFrameStyle (QwtColumnSymbol::FrameStyle f)
	Set the bar symbol frame style

QwtColumnSymbol::FrameStyle	frameStyle () const
	Get the bar symbol frame style

void	setLegendMode (LegendMode)
	Set the mode that decides what to display on the legend

LegendMode	legendMode () const
	Get the legend mode

virtual void	drawSeries (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, int from, int to) const override
	Draw an interval of the bar chart

virtual QRectF	boundingRect () const override
	Get the bounding rectangle of all samples

virtual QwtColumnSymbol *	specialSymbol (int sampleIndex, const QPointF &) const
	Get a special symbol for a specific sample

virtual QwtText	barTitle (int sampleIndex) const
	Return the title of a bar

Public 成员函数继承自 QwtPlotAbstractBarChart
	QwtPlotAbstractBarChart (const QwtText &title)
	Constructor

void	setLayoutPolicy (LayoutPolicy)
	Set the layout policy

LayoutPolicy	layoutPolicy () const
	Get the layout policy

void	setLayoutHint (double)
	Set the layout hint

double	layoutHint () const
	Get the layout hint

void	setSpacing (int)
	Set the spacing between bars

int	spacing () const
	Get the spacing between bars

void	setMargin (int)
	Set the margin around the bars

int	margin () const
	Get the margin around the bars

void	setBaseline (double)
	Set the baseline value

double	baseline () const
	Get the baseline value

virtual void	getCanvasMarginHint (const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, double &left, double &top, double &right, double &bottom) const override
	Calculate a hint for the canvas margin

Public 成员函数继承自 QwtPlotSeriesItem
	QwtPlotSeriesItem (const QString &title=QString())

	QwtPlotSeriesItem (const QwtText &title)
	Constructor

void	setOrientation (Qt::Orientation)
	Set the orientation of the item

Qt::Orientation	orientation () const
	Get the orientation of the plot item

virtual void	draw (QPainter *, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect) const override
	Draw the complete series

virtual void	updateScaleDiv (const QwtScaleDiv &, const QwtScaleDiv &) override
	Update the scale divisions

Public 成员函数继承自 QwtPlotItem
	QwtPlotItem ()
	Default constructor

	QwtPlotItem (const QString &title)
	Constructor with title as QString

	QwtPlotItem (const QwtText &title)
	Constructor with title as QwtText

virtual	~QwtPlotItem ()
	Destructor

void	detach ()
	Detach the item from the plot

QwtPlot *	plot () const
	Get the plot the item is attached to

void	setTitle (const QString &title)
	Set the title using a QString

void	setTitle (const QwtText &title)
	Set the title using a QwtText

const QwtText &	title () const
	Get the title

void	setItemAttribute (ItemAttribute, bool on=true)
	Set an item attribute

bool	testItemAttribute (ItemAttribute) const
	Test an item attribute

void	setItemInterest (ItemInterest, bool on=true)
	Set an item interest

bool	testItemInterest (ItemInterest) const
	Test an item interest

void	setRenderHint (RenderHint, bool on=true)
	Set a render hint

bool	testRenderHint (RenderHint) const
	Test a render hint

void	setRenderThreadCount (uint numThreads)
	Set the number of render threads

uint	renderThreadCount () const
	Get the number of render threads

void	setLegendIconSize (const QSize &)
	Set the legend icon size

QSize	legendIconSize () const
	Get the legend icon size

double	z () const
	Get the z-value

void	setZ (double z)
	Set the z-value

void	show ()
	Show the item

void	hide ()
	Hide the item

virtual void	setVisible (bool)
	Set the visibility

bool	isVisible () const
	Check if the item is visible

void	setAxes (QwtAxisId xAxis, QwtAxisId yAxis)
	Set both axes

void	setXAxis (QwtAxisId)
	Set the x-axis

QwtAxisId	xAxis () const
	Get the x-axis

void	setYAxis (QwtAxisId)
	Set the y-axis

QwtAxisId	yAxis () const
	Get the y-axis

virtual void	itemChanged ()
	Notify the plot that the item has changed

virtual void	legendChanged ()
	Notify the item that the legend has changed

virtual void	updateLegend (const QwtPlotItem *, const QList< QwtLegendData > &)
	Update the item with changes of the legend

QRectF	scaleRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the scale rectangle

QRectF	paintRect (const QwtScaleMap &, const QwtScaleMap &) const
	Calculate the paint rectangle

Public 成员函数继承自 QwtSeriesStore< QPointF >
void	setData (QwtSeriesData< QPointF > *series)

QwtSeriesData< QPointF > *	data ()

const QwtSeriesData< QPointF > *	data () const

QPointF	sample (size_t index) const

virtual size_t	dataSize () const override

virtual QRectF	dataRect () const override

virtual void	setRectOfInterest (const QRectF &rect) override
	Set a the "rectangle of interest" for the stored series

QwtSeriesData< QPointF > *	swapData (QwtSeriesData< QPointF > *series)

Protected 成员函数
virtual void	drawSample (QPainter *painter, const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, const QwtInterval &boundingInterval, int index, const QPointF &sample) const
	Draw a sample

virtual void	drawBar (QPainter *, int sampleIndex, const QPointF &sample, const QwtColumnRect &) const
	Draw a bar

QwtColumnRect	columnRect (const QwtScaleMap &xMap, const QwtScaleMap &yMap, const QRectF &canvasRect, const QwtInterval &boundingInterval, const QPointF &sample) const
	Get column rectangle

QList< QwtLegendData >	legendData () const override
	Get legend data

QwtGraphic	legendIcon (int index, const QSizeF &) const override
	Get legend icon

Protected 成员函数继承自 QwtPlotAbstractBarChart
double	sampleWidth (const QwtScaleMap &map, double canvasSize, double boundingSize, double value) const
	Calculate the width for a sample in paint device coordinates

Protected 成员函数继承自 QwtPlotSeriesItem
virtual void	dataChanged () override
	dataChanged() indicates, that the series has been changed.

Protected 成员函数继承自 QwtPlotItem
QwtGraphic	defaultIcon (const QBrush &, const QSizeF &) const
	Create a default icon

详细描述

QwtPlotBarChart displays a series of values as bars

Each bar might be customized individually by implementing a specialSymbol(). Otherwise it is rendered using a default symbol.

Depending on its orientation() the bars are displayed horizontally or vertically. The bars cover the interval between the baseline() and the value.

By activating the LegendBarTitles mode each sample will have its own entry on the legend.

The most common use case of a bar chart is to display a list of y coordinates, where the x coordinate is simply the index in the list. But for other situations ( f.e. when values are related to dates ) it is also possible to set x coordinates explicitly.

参见: QwtPlotMultiBarChart, QwtPlotHistogram, QwtPlotCurve::Sticks, QwtPlotSeriesItem::orientation(), QwtPlotAbstractBarChart::baseline()

成员枚举类型说明

◆ LegendMode

enum QwtPlotBarChart::LegendMode

Legend modes

The default setting is QwtPlotBarChart::LegendChartTitle.

参见: setLegendMode(), legendMode()

枚举值

LegendChartTitle

One entry on the legend showing the default symbol and the title() of the chart

参见: QwtPlotItem::title()

LegendBarTitles

One entry for each value showing the individual symbol of the corresponding bar and the bar title.

参见: specialSymbol(), barTitle()

构造及析构函数说明

◆ QwtPlotBarChart()

QwtPlotBarChart::QwtPlotBarChart ( const QwtText & title )

explicit

Constructor

参数

[in] title Title of the chart

Constructor

参数

[in] title Title of the chart

Destructor

成员函数说明

◆ attach()

void QwtPlotBarChart::attach ( QwtPlot * plot )

overridevirtual

Attach the bar chart to a plot

If the brush has not been explicitly set by the user, the bar chart automatically receives a color from the plot's color cycle. The pen is set to a darker shade of the fill color unless user-set.

参数

plot	Plot to attach to (nullptr to detach)

重载 QwtPlotItem .

◆ barTitle()

QwtText QwtPlotBarChart::barTitle ( int sampleIndex ) const

virtual

Return the title of a bar

In LegendBarTitles mode the title is displayed on the legend entry corresponding to a bar. The default implementation is a dummy, that is intended to be overloaded.

参数

[in] sampleIndex Index of the bar

返回: An empty text

参见: LegendBarTitles

◆ boundingRect()

QRectF QwtPlotBarChart::boundingRect ( ) const

overridevirtual

Get the bounding rectangle of all samples

返回: Bounding rectangle of all samples. For an empty series the rectangle is invalid.

重载 QwtPlotSeriesItem .

◆ brush()

QBrush QwtPlotBarChart::brush ( ) const

Get the bar symbol brush

返回: Brush for filling the bar

◆ columnRect()

QwtColumnRect QwtPlotBarChart::columnRect	(	const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		const QwtInterval &	boundingInterval,
		const QPointF &	sample
	)		const

protected

Get column rectangle

Calculate the geometry of a bar in widget coordinates

参数

xMap	x map
yMap	y map
canvasRect	Contents rect of the canvas
boundingInterval	Bounding interval of sample values
sample	Value of the sample

返回: Geometry of the column

◆ drawBar()

void QwtPlotBarChart::drawBar	(	QPainter *	painter,
		int	sampleIndex,
		const QPointF &	sample,
		const QwtColumnRect &	rect
	)		const

protectedvirtual

Draw a bar

参数

painter	Painter
sampleIndex	Index of the sample represented by the bar
sample	Value of the sample
rect	Bounding rectangle of the bar

◆ drawSample()

void QwtPlotBarChart::drawSample	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		const QwtInterval &	boundingInterval,
		int	index,
		const QPointF &	sample
	)		const

protectedvirtual

Draw a sample

参数

painter	Painter
xMap	x map
yMap	y map
canvasRect	Contents rect of the canvas
boundingInterval	Bounding interval of sample values
index	Index of the sample
sample	Value of the sample

参见: drawSeries()

◆ drawSeries()

void QwtPlotBarChart::drawSeries	(	QPainter *	painter,
		const QwtScaleMap &	xMap,
		const QwtScaleMap &	yMap,
		const QRectF &	canvasRect,
		int	from,
		int	to
	)		const

overridevirtual

Draw an interval of the bar chart

参数

[in]	painter	Painter
[in]	xMap	Maps x-values into pixel coordinates.
[in]	yMap	Maps y-values into pixel coordinates.
[in]	canvasRect	Contents rect of the canvas
[in]	from	Index of the first point to be painted
[in]	to	Index of the last point to be painted. If to < 0 the curve will be painted to its last point.

参见: drawSymbols()

实现了 QwtPlotSeriesItem.

◆ frameStyle()

QwtColumnSymbol::FrameStyle QwtPlotBarChart::frameStyle ( ) const

Get the bar symbol frame style

返回: Frame style for the bar

◆ legendData()

QList< QwtLegendData > QwtPlotBarChart::legendData ( ) const

overrideprotectedvirtual

Get legend data

Return all information, that is needed to represent the item on the legend

In case of LegendBarTitles an entry for each bar is returned, otherwise the chart is represented like any other plot item from its title() and the legendIcon().

返回: Information, that is needed to represent the item on the legend

参见: title(), setLegendMode(), barTitle(), QwtLegend, QwtPlotLegendItem

重载 QwtPlotItem .

◆ legendIcon()

QwtGraphic QwtPlotBarChart::legendIcon	(	int	index,
		const QSizeF &	size
	)		const

overrideprotectedvirtual

Get legend icon

返回: Icon representing a bar or the chart on the legend

When the legendMode() is LegendBarTitles the icon shows the bar corresponding to index - otherwise the bar displays the default symbol.

参数

index	Index of the legend entry
size	Icon size

参见: setLegendMode(), drawBar(), QwtPlotItem::setLegendIconSize(), QwtPlotItem::legendData()

重载 QwtPlotItem .

◆ legendMode()

QwtPlotBarChart::LegendMode QwtPlotBarChart::legendMode ( ) const

Get the legend mode

返回: Legend mode

参见: setLegendMode()

◆ pen()

QPen QwtPlotBarChart::pen ( ) const

Get the bar symbol pen

返回: Pen for drawing the bar outline

◆ rtti()

int QwtPlotBarChart::rtti ( ) const

overridevirtual

Get the runtime type information

返回: QwtPlotItem::Rtti_PlotBarChart

重载 QwtPlotItem .

◆ setBrush()

void QwtPlotBarChart::setBrush ( const QBrush & b )

Set the bar symbol brush

参数

[in] b Brush for filling the bar

◆ setFrameStyle()

void QwtPlotBarChart::setFrameStyle ( QwtColumnSymbol::FrameStyle f )

Set the bar symbol frame style

参数

[in] f Frame style for the bar

◆ setLegendMode()

void QwtPlotBarChart::setLegendMode ( LegendMode mode )

Set the mode that decides what to display on the legend

In case of LegendBarTitles barTitle() needs to be overloaded to return individual titles for each bar.

参数

[in] mode New mode

参见: legendMode(), legendData(), barTitle(), QwtPlotItem::ItemAttribute

◆ setPen()

void QwtPlotBarChart::setPen ( const QPen & p )

Set the bar symbol pen

参数

[in] p Pen for drawing the bar outline

◆ setSamples() [1/3]

void QwtPlotBarChart::setSamples ( const QVector< double > & samples )

Initialize data with an array of doubles

The indices in the array are taken as x coordinate, while the doubles are interpreted as y values.

参数

[in] samples Vector of y coordinates

注解: QVector is implicitly shared.

◆ setSamples() [2/3]

void QwtPlotBarChart::setSamples ( const QVector< QPointF > & samples )

Initialize data with an array of points

参数

[in] samples Vector of points

注解: QVector is implicitly shared.; QPolygonF is derived from QVector<QPointF>.

◆ setSamples() [3/3]

void QwtPlotBarChart::setSamples ( QwtSeriesData< QPointF > * data )

Assign a series of samples

setSamples() is just a wrapper for setData() without any additional value - beside that it is easier to find for the developer.

参数

[in] data Data

警告: The item takes ownership of the data object, deleting it when its not used anymore.

◆ setSymbol()

void QwtPlotBarChart::setSymbol ( QwtColumnSymbol * symbol )

Assign a symbol

The bar chart will take the ownership of the symbol, hence the previously set symbol will be deleted by setting a new one. If symbol is nullptr no symbol will be drawn.

参数

[in] symbol Symbol

参见: symbol()

◆ specialSymbol()

QwtColumnSymbol * QwtPlotBarChart::specialSymbol	(	int	sampleIndex,
		const QPointF &	sample
	)		const

virtual

Get a special symbol for a specific sample

Needs to be overloaded to return a non default symbol for a specific sample.

参数

[in]	sampleIndex	Index of the sample represented by the bar
[in]	sample	Value of the sample

返回: nullptr, indicating to use the default symbol

◆ symbol()

const QwtColumnSymbol * QwtPlotBarChart::symbol ( ) const

Get the current symbol

返回: Current symbol or nullptr, when no symbol has been assigned.

参见: setSymbol()

该类的文档由以下文件生成:

/home/runner/work/QWT/QWT/src/plot/qwt_plot_barchart.h
/home/runner/work/QWT/QWT/src/plot/qwt_plot_barchart.cpp

类

Public 类型

Public 成员函数

Protected 成员函数

详细描述

成员枚举类型说明

◆ LegendMode

构造及析构函数说明

◆ QwtPlotBarChart()

成员函数说明

◆ attach()

◆ barTitle()

◆ boundingRect()

◆ brush()

◆ columnRect()

◆ drawBar()

◆ drawSample()

◆ drawSeries()

◆ frameStyle()

◆ legendData()

◆ legendIcon()

◆ legendMode()

◆ pen()

◆ rtti()

◆ setBrush()

◆ setFrameStyle()

◆ setLegendMode()

◆ setPen()

◆ setSamples() [1/3]

◆ setSamples() [2/3]

◆ setSamples() [3/3]

◆ setSymbol()

◆ specialSymbol()

◆ symbol()
