SARibbon Introduction

点击此处查看中文版本

📚 Documentation：https://czyt1988.github.io/SARibbon/en

---

	Windows(latest)	Linux ubuntu(latest)	Mac(latest)
Qt5.12 LTS
Qt5.14
Qt5.15 LTS
Qt6.2 LTS
Qt6.5 LTS
Qt6.8 LTS

---

Project Overview

SARibbon is a Qt-based Ribbon UI control library designed to provide modern, Microsoft Office-like interfaces for desktop applications.

Applicable Scenarios

• Large-scale software
• Industrial-grade software
• Complex desktop applications

Design Philosophy

• API naming style references MFC Ribbon
• UI style combines the strengths of Microsoft Office and WPS Office
• Supports rapid theme customization via QSS (Qt Style Sheets)
• Provides rich built-in control encapsulations (e.g., color picker button and palette)

Features

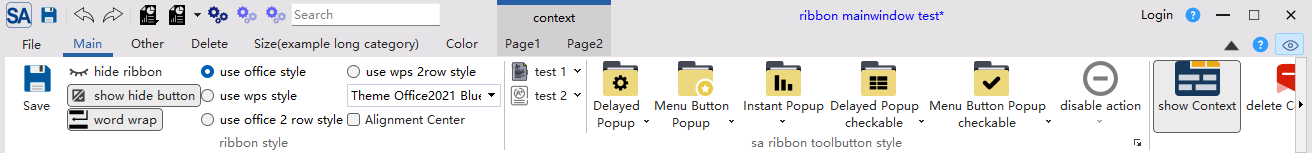

• Ribbon layout and display

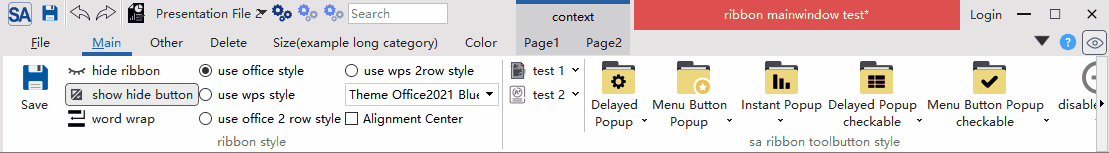

• Supports minimize mode where only tabs are shown (double-click a tab to toggle); supports contextual tabs

• Supports quick access bar and right button group, with adaptive display under different layout modes

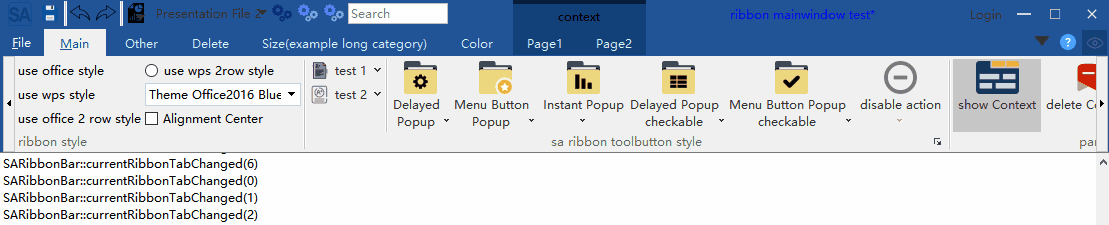

• Supports multiple ribbon button styles: normal button, delayed popup menu button, menu button, action menu button (action menu button is one of the key problems this library solves)

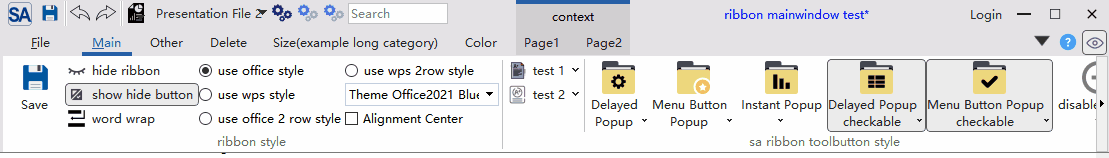

• Supports multiple layout styles

• Supports QSS-based ribbon customization and real-time theme switching; includes 6 built-in themes

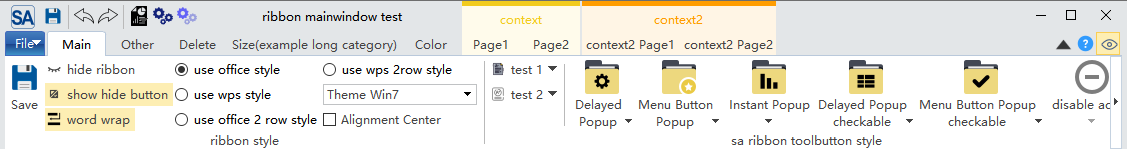

Win7 theme:

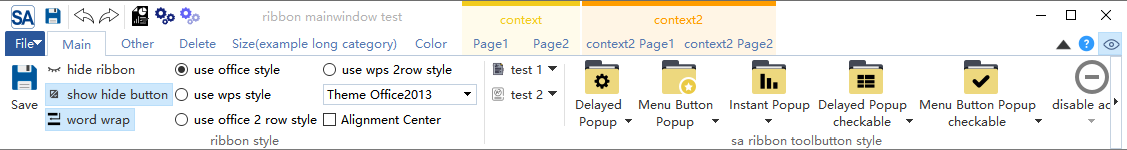

Office 2013 theme:

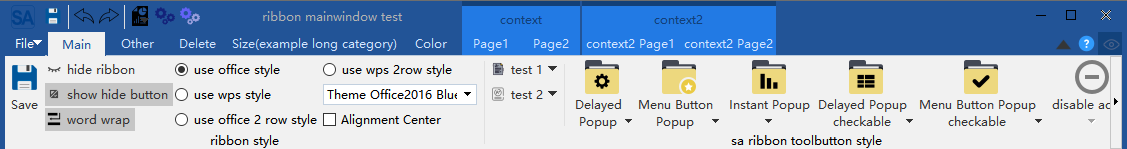

Office 2016 theme:

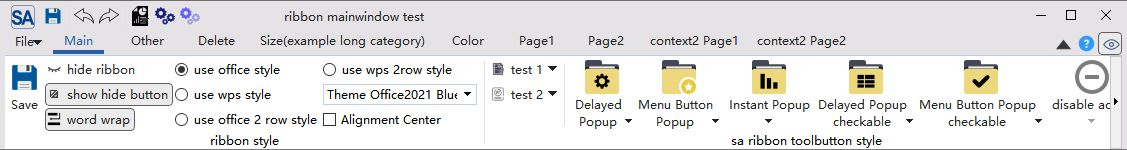

Office 2021 theme:

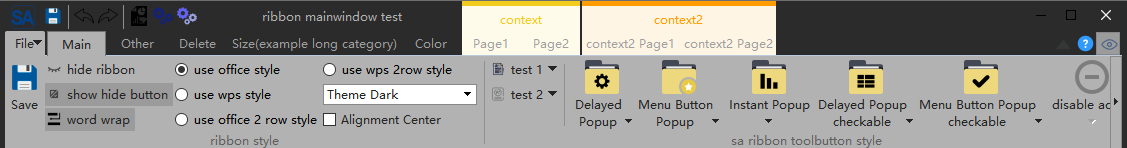

Dark theme:

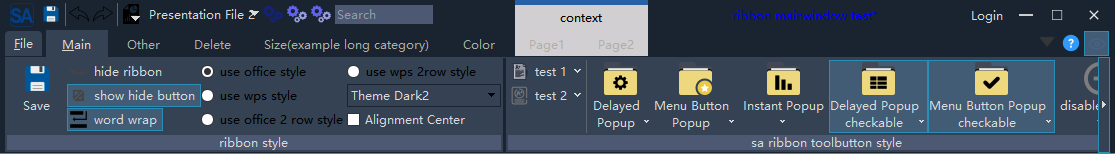

Dark2 theme:

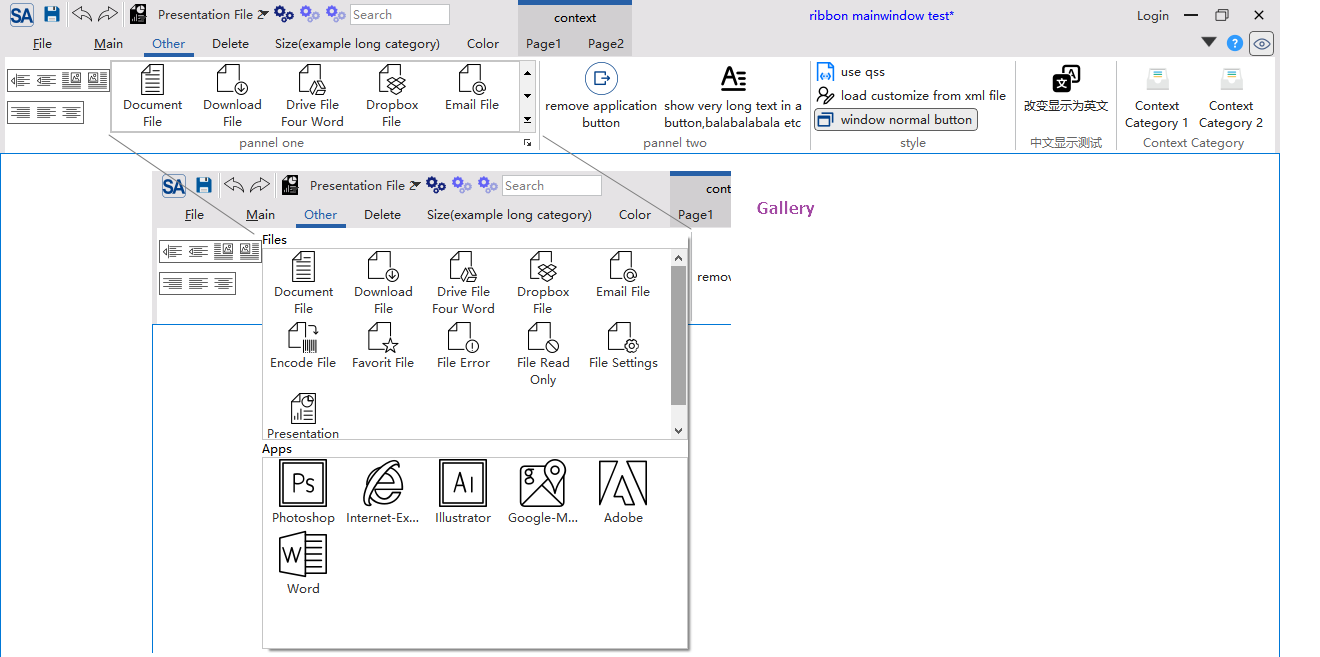

• Provides Gallery control

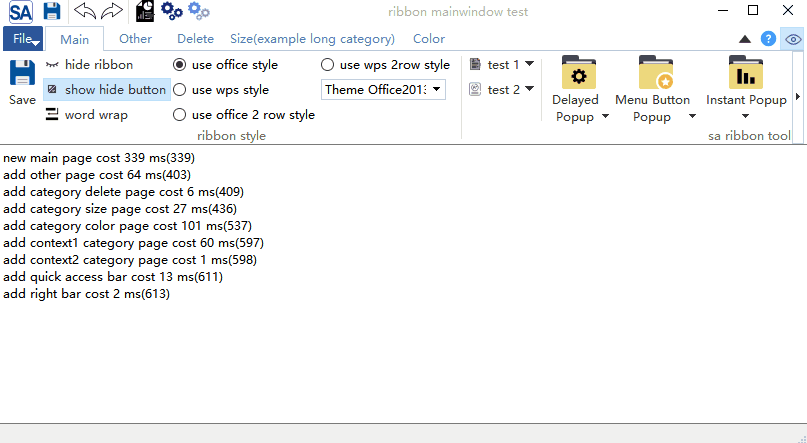

• Supports long content scrolling and Option Action

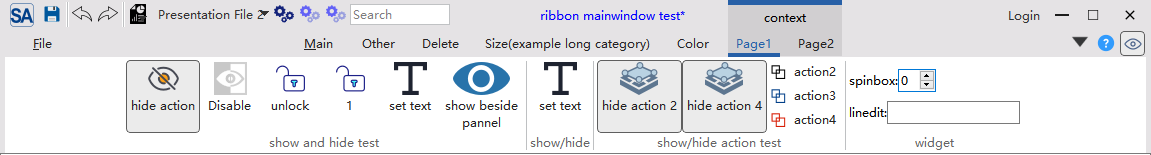

• Provides center alignment mode

• Supports 4K screens and multi-monitor setups

• Supports Linux and macOS (UI not deeply adapted)

• License: MIT (free to use, modify, and distribute)

• Contributions welcome: Feel free to submit issues, PRs, or join the discussion group!

Gitee - https://gitee.com/czyt1988/SARibbon

GitHub - https://github.com/czyt1988/SARibbon

Build and Usage

Documentation is located in the docs/en folder, or visit: https://czyt1988.github.io/SARibbon/en

Doxygen documentation is deployed at: https://czyt1988.github.io/SARibbon/doxygen/index.html

It is recommended to start learning SARibbon from the example/MainWindowExample, which you can also run directly to experience the features.

More Screenshots

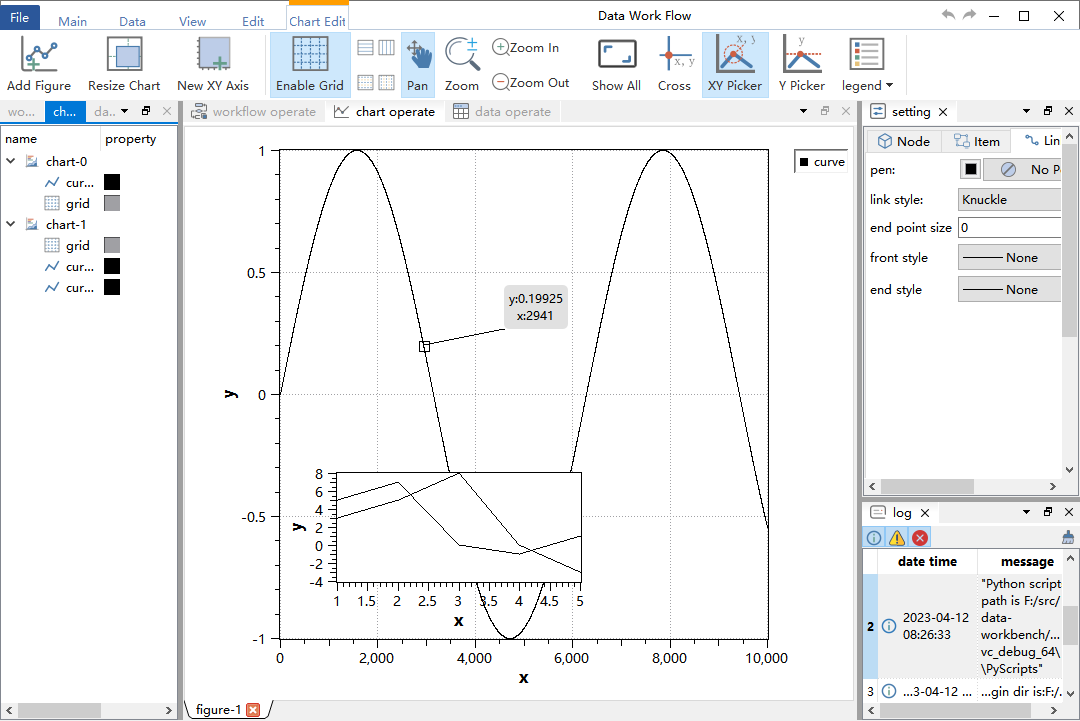

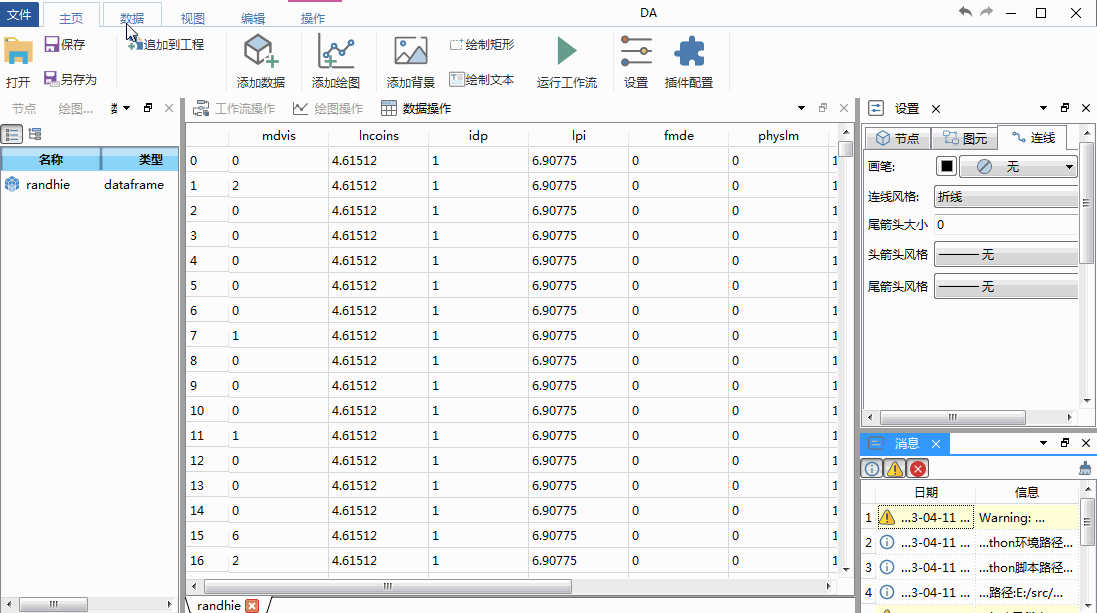

• Screenshots of software built with SARibbon

GitHub - https://github.com/czyt1988/data-workbench

Gitee - https://gitee.com/czyt1988/data-workbench

Sample Ribbon generation code:

https://github.com/czyt1988/data-workbench/blob/master/src/APP/DAAppRibbonArea.cpp

Documentation Generation

• Use doxygen to generate HTML or .qch documentation:
• docs/Doxyfile-wiki-en → Generate web documentation
• docs/Doxyfile-qch-en → Generate Qt Creator help documentation
• Static documentation is built with mkdocs and deployed to GitHub Pages: https://czyt1988.github.io/SARibbon/en
