Base class for all plotting widgets. More...

#include <qwt3d_plot.h>

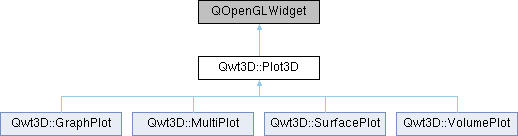

Inheritance diagram for Qwt3D::Plot3D:

Public Slots
void	setRotation (double xVal, double yVal, double zVal)

void	setShift (double xVal, double yVal, double zVal)

void	setViewportShift (double xVal, double yVal)

void	setScale (double xVal, double yVal, double zVal)

void	setZoom (double)

void	setOrtho (bool)
	Sets up orthogonal or perspective mode and updates widget.

void	enableMouse (bool val=true)

void	disableMouse (bool val=true)

void	enableKeyboard (bool val=true)

void	disableKeyboard (bool val=true)

void	enableLighting (bool val=true)

void	disableLighting (bool val=true)

void	setLightRotation (double xVal, double yVal, double zVal, unsigned int idx=0)

void	setLightShift (double xVal, double yVal, double zVal, unsigned int idx=0)

virtual bool	savePixmap (QString const &fileName, QString const &format)
	Saves the framebuffer to an image file.

virtual bool	saveVector (QString const &fileName, QString const &format, VectorWriter::TEXTMODE text, VectorWriter::SORTMODE sortmode)
	Writes vector data supported by gl2ps.

virtual bool	save (QString const &fileName, QString const &format)
	Saves content in one of the registered output formats.

Signals
void	rotationChanged (double xAngle, double yAngle, double zAngle)
	Signal emitted when the rotation is changed.

void	shiftChanged (double xShift, double yShift, double zShift)
	Signal emitted when the shift is changed.

void	vieportShiftChanged (double xShift, double yShift)
	Signal emitted when the viewport shift is changed.

void	scaleChanged (double xScale, double yScale, double zScale)
	Signal emitted when the scaling is changed.

void	zoomChanged (double)
	Signal emitted when the zoom is changed.

void	projectionChanged (bool)
	Signal emitted when the projection mode is changed.

Public Member Functions
	Plot3D (QWidget *parent=0)
	Constructs a Plot3D widget.

virtual	~Plot3D ()
	Destructor - releases allocated resources .

QPixmap	renderPixmap (int w=0, int h=0, bool useContext=false)

void	updateData ()
	Updates OpenGL data representation .

void	createCoordinateSystem (Qwt3D::Triple beg, Qwt3D::Triple end)
	Creates a coordinate system with generating corners beg and end.

Qwt3D::CoordinateSystem *	coordinates ()

Qwt3D::ColorLegend *	legend ()

double	xRotation () const

double	yRotation () const

double	zRotation () const

double	xShift () const

double	yShift () const

double	zShift () const

double	xViewportShift () const

double	yViewportShift () const

double	xScale () const

double	yScale () const

double	zScale () const

double	zoom () const

bool	ortho () const

void	setPlotStyle (Qwt3D::PLOTSTYLE val)
	Sets plot style for the standard plotting types.

Qwt3D::Enrichment *	setPlotStyle (Qwt3D::Enrichment const &val)
	Sets plot style to Qwt3D::USER with an associated enrichment object.

Qwt3D::PLOTSTYLE	plotStyle () const

Qwt3D::Enrichment *	userStyle () const

void	setShading (Qwt3D::SHADINGSTYLE val)
	Sets shading style.

Qwt3D::SHADINGSTYLE	shading () const

void	setIsolines (int isolines)
	Sets number of isolines.

int	isolines () const

void	setSmoothMesh (bool val)

bool	smoothDataMesh () const

void	setBackgroundColor (Qwt3D::RGBA rgba)
	Sets the background color.

Qwt3D::RGBA	backgroundRGBAColor () const

void	setMeshColor (Qwt3D::RGBA rgba)
	Sets the mesh color.

Qwt3D::RGBA	meshColor () const

void	setMeshLineWidth (double lw)
	Sets the mesh line width.

double	meshLineWidth () const

void	setDataColor (Color *col)
	Assigns a new coloring object for the data.

const Color *	dataColor () const

virtual Qwt3D::Enrichment *	addEnrichment (Qwt3D::Enrichment const &)
	Adds an enrichment object to the plot.

virtual bool	degrade (Qwt3D::Enrichment *)
	Removes an enrichment object from the plot.

Qwt3D::ParallelEpiped	hull () const

void	showColorLegend (bool)
	Shows or hides the color legend.

void	setCoordinateStyle (Qwt3D::COORDSTYLE st)
	Sets style of coordinate system.

void	setPolygonOffset (double d)
	Sets polygon offset.

double	polygonOffset () const

void	setTitlePosition (double rely, double relx=0.5, Qwt3D::ANCHOR=Qwt3D::TopCenter)
	Sets relative caption position.

void	setTitleFont (const QString &family, int pointSize, int weight=QFont::Normal, bool italic=false)
	Sets the caption font.

void	setTitleColor (Qwt3D::RGBA col)

void	setTitle (const QString &title)

void	assignMouse (MouseState xrot, MouseState yrot, MouseState zrot, MouseState xscale, MouseState yscale, MouseState zscale, MouseState zoom, MouseState xshift, MouseState yshift)

bool	mouseEnabled () const

void	assignKeyboard (KeyboardState xrot_n, KeyboardState xrot_p, KeyboardState yrot_n, KeyboardState yrot_p, KeyboardState zrot_n, KeyboardState zrot_p, KeyboardState xscale_n, KeyboardState xscale_p, KeyboardState yscale_n, KeyboardState yscale_p, KeyboardState zscale_n, KeyboardState zscale_p, KeyboardState zoom_n, KeyboardState zoom_p, KeyboardState xshift_n, KeyboardState xshift_p, KeyboardState yshift_n, KeyboardState yshift_p)

bool	keyboardEnabled () const

void	setKeySpeed (double rot, double scale, double shift)

void	keySpeed (double &rot, double &scale, double &shift) const

bool	lightingEnabled () const

void	illuminate (unsigned light=0)

void	blowout (unsigned light=0)

void	setMaterialComponent (GLenum property, double r, double g, double b, double a=1.0)

void	setMaterialComponent (GLenum property, double intensity)

void	setShininess (double exponent)

void	setLightComponent (GLenum property, double r, double g, double b, double a=1.0, unsigned light=0)

void	setLightComponent (GLenum property, double intensity, unsigned light=0)

double	xLightRotation (unsigned idx=0) const

double	yLightRotation (unsigned idx=0) const

double	zLightRotation (unsigned idx=0) const

double	xLightShift (unsigned idx=0) const

double	yLightShift (unsigned idx=0) const

double	zLightShift (unsigned idx=0) const

bool	hasData () const

Protected Types
enum	OBJECTS { DataObject , LegendObject , NormalObject , DisplayListSize }

using	EnrichmentList = std::list< Qwt3D::Enrichment * >

using	ELIT = EnrichmentList::iterator

Protected Member Functions
void	initializeGL ()
	Sets up the OpenGL rendering state .

void	paintGL ()
	Paints the widget's content .

void	resizeGL (int w, int h)
	Sets up the OpenGL view port.

void	mousePressEvent (QMouseEvent *e)

void	mouseReleaseEvent (QMouseEvent *e)

void	mouseMoveEvent (QMouseEvent *e)

void	wheelEvent (QWheelEvent *e)

void	keyPressEvent (QKeyEvent *e)

virtual void	calculateHull ()=0

virtual void	createData ()=0

virtual void	createEnrichment (Qwt3D::Enrichment &)

virtual void	createEnrichments ()

void	createCoordinateSystem ()
	Creates a coordinate system from data.

void	setHull (Qwt3D::ParallelEpiped p)

bool	initializedGL () const

Protected Attributes
Qwt3D::CoordinateSystem	coordinates_p

Qwt3D::Color *	datacolor_p

Qwt3D::Enrichment *	userplotstyle_p

EnrichmentList	elist_p

std::vector< GLuint >	displaylists_p

Qwt3D::Data *	actualData_p

Detailed Description

Base class for all plotting widgets.

Constructor & Destructor Documentation

◆ Plot3D()

Plot3D::Plot3D ( QWidget * parent = 0 )

Constructs a Plot3D widget.

◆ ~Plot3D()

Plot3D::~Plot3D ( )

virtual

Destructor - releases allocated resources .

Member Function Documentation

◆ addEnrichment()

Enrichment * Plot3D::addEnrichment ( Qwt3D::Enrichment const & e )

virtual

Adds an enrichment object to the plot.

◆ assignKeyboard()

void Plot3D::assignKeyboard	(	KeyboardState	xrot_n,
		KeyboardState	xrot_p,
		KeyboardState	yrot_n,
		KeyboardState	yrot_p,
		KeyboardState	zrot_n,
		KeyboardState	zrot_p,
		KeyboardState	xscale_n,
		KeyboardState	xscale_p,
		KeyboardState	yscale_n,
		KeyboardState	yscale_p,
		KeyboardState	zscale_n,
		KeyboardState	zscale_p,
		KeyboardState	zoom_n,
		KeyboardState	zoom_p,
		KeyboardState	xshift_n,
		KeyboardState	xshift_p,
		KeyboardState	yshift_n,
		KeyboardState	yshift_p
	)

Sets the keybutton combination for data/coordinatesystem moves inside the widget

default behaviour:

rotate around x axis: [Key_Down, Key_Up]
rotate around y axis: SHIFT+[Key_Right, Key_Left]
rotate around z axis: [Key_Right, Key_Left]
scale x:              ALT+[Key_Right, Key_Left]
scale y:              ALT+[Key_Up, Key_Down]
scale z:              ALT+SHIFT[Key_Down, Key_Up]
zoom:                 ALT+CTRL+[Key_Down, Key_Up]
shifting along x:     CTRL+[Key_Right, Key_Left]
shifting along z:     CTRL+[Key_Down, Key_Up]

◆ assignMouse()

void Plot3D::assignMouse	(	MouseState	xrot,
		MouseState	yrot,
		MouseState	zrot,
		MouseState	xscale,
		MouseState	yscale,
		MouseState	zscale,
		MouseState	zoom,
		MouseState	xshift,
		MouseState	yshift
	)

 Sets the key/mousebutton combination for data/coordinatesystem moves inside the widget\n\n
 default behaviour:\n

 \verbatim
 rotate around x axis: Qt::LeftButton
 rotate around y axis: Qt::LeftButton | Qt::ShiftButton
 rotate around z axis: Qt::LeftButton
 scale x:              Qt::LeftButton | Qt::AltButton
 scale y:              Qt::LeftButton | Qt::AltButton
 scale z:              Qt::LeftButton | Qt::AltButton | Qt::ShiftButton
 zoom:                 Qt::LeftButton | Qt::AltButton | Qt::ControlButton
 shifting along x:     Qt::LeftButton | Qt::ControlButton
 shifting along y:     Qt::LeftButton | Qt::ControlButton
 \endverbatim

 mouseMoveEvent() evaluates this function - if overridden, their usefulness becomes somehow

limited

◆ blowout()

void Plot3D::blowout ( unsigned light = 0 )

Parameters

light light number [0..7]

See also: setLight

◆ calculateHull()

virtual void Qwt3D::Plot3D::calculateHull ( )

protectedpure virtual

Implemented in Qwt3D::SurfacePlot.

◆ createCoordinateSystem() [1/2]

void Plot3D::createCoordinateSystem ( )

protected

Creates a coordinate system from data.

◆ createCoordinateSystem() [2/2]

void Plot3D::createCoordinateSystem	(	Qwt3D::Triple	beg,
		Qwt3D::Triple	end
	)

Creates a coordinate system with generating corners beg and end.

◆ degrade()

bool Plot3D::degrade ( Qwt3D::Enrichment * e )

virtual

Removes an enrichment object from the plot.

◆ disableKeyboard

void Plot3D::disableKeyboard ( bool val = true )

slot

See also: enableKeyboard()

◆ disableMouse

void Plot3D::disableMouse ( bool val = true )

slot

See also: enableMouse()

◆ enableKeyboard

void Plot3D::enableKeyboard ( bool val = true )

slot

The function has no effect if you derive from Plot3D and overrides the keyboard Functions too careless. In this case check first against keyboardEnabled() in your version of keyPressEvent() A more fine grained input control can be achieved by combining assignKeyboard() with enableKeyboard().

◆ enableMouse

void Plot3D::enableMouse ( bool val = true )

slot

The function has no effect if you derive from Plot3D and overrides the mouse Function too careless. In this case check first against mouseEnabled() in your version of mouseMoveEvent() and wheelEvent(). A more fine grained input control can be achieved by combining assignMouse() with enableMouse().

◆ illuminate()

void Plot3D::illuminate ( unsigned light = 0 )

Parameters

light light number [0..7]

See also: setLight

◆ initializeGL()

void Plot3D::initializeGL ( )

protected

Sets up the OpenGL rendering state .

◆ mouseMoveEvent()

void Plot3D::mouseMoveEvent ( QMouseEvent * e )

protected

Standard mouse button Function

See also: assignMouse()

◆ mousePressEvent()

void Plot3D::mousePressEvent ( QMouseEvent * e )

protected

Standard mouse button Function. Prepares the call to mouseMoveEvent

See also: mouseMoveEvent()

◆ mouseReleaseEvent()

void Plot3D::mouseReleaseEvent ( QMouseEvent * e )

protected

Standard mouse button Function. Completes the call to mouseMoveEvent

See also: mouseMoveEvent()

◆ paintGL()

void Plot3D::paintGL ( )

protected

Paints the widget's content .

◆ projectionChanged

void Qwt3D::Plot3D::projectionChanged ( bool )

signal

Signal emitted when the projection mode is changed.

◆ resizeGL()

void Plot3D::resizeGL	(	int	w,
		int	h
	)

protected

Sets up the OpenGL view port.

◆ rotationChanged

void Qwt3D::Plot3D::rotationChanged	(	double	xAngle,
		double	yAngle,
		double	zAngle
	)

signal

Signal emitted when the rotation is changed.

◆ save

bool Plot3D::save	(	QString const &	fileName,
		QString const &	format
	)

virtualslot

Saves content in one of the registered output formats.

◆ savePixmap

bool Plot3D::savePixmap	(	QString const &	fileName,
		QString const &	format
	)

virtualslot

Saves the framebuffer to an image file.

◆ saveVector

bool Plot3D::saveVector	(	QString const &	fileName,
		QString const &	format,
		VectorWriter::TEXTMODE	text,
		VectorWriter::SORTMODE	sortmode
	)

virtualslot

Writes vector data supported by gl2ps.

◆ scaleChanged

void Qwt3D::Plot3D::scaleChanged	(	double	xScale,
		double	yScale,
		double	zScale
	)

signal

Signal emitted when the scaling is changed.

◆ setBackgroundColor()

void Plot3D::setBackgroundColor ( Qwt3D::RGBA rgba )

Sets the background color.

◆ setCoordinateStyle()

void Plot3D::setCoordinateStyle ( Qwt3D::COORDSTYLE st )

Sets style of coordinate system.

◆ setDataColor()

void Plot3D::setDataColor ( Color * col )

Assigns a new coloring object for the data.

◆ setIsolines()

void Plot3D::setIsolines ( int steps )

Sets number of isolines.

◆ setKeySpeed()

void Plot3D::setKeySpeed	(	double	rot,
		double	scale,
		double	shift
	)

Values < 0 are ignored. Default is (3,5,5)

◆ setLightComponent() [1/2]

void Plot3D::setLightComponent	(	GLenum	property,
		double	intensity,
		unsigned	light = `0`
	)

This function is for convenience. It sets GL light properties with the equal r,g,b values and a blending alpha with value 1.0

◆ setLightComponent() [2/2]

void Plot3D::setLightComponent	(	GLenum	property,
		double	r,
		double	g,
		double	b,
		double	a = `1.0`,
		unsigned	light = `0`
	)

Sets GL light properties for light 'light'

◆ setLightRotation

void Plot3D::setLightRotation	(	double	xVal,
		double	yVal,
		double	zVal,
		unsigned int	idx = `0`
	)

slot

Set the rotation angle of the light source. If you look along the respective axis towards ascending values, the rotation is performed in mathematical negative sense

Parameters

xVal	angle in degree to rotate around the X axis
yVal	angle in degree to rotate around the Y axis
zVal	angle in degree to rotate around the Z axis
light	light number

◆ setLightShift

void Plot3D::setLightShift	(	double	xVal,
		double	yVal,
		double	zVal,
		unsigned int	idx = `0`
	)

slot

Set the shift in light source (world) coordinates.

Parameters

xVal	shift along (world) X axis
yVal	shift along (world) Y axis
zVal	shift along (world) Z axis
light	light number

See also: setViewportShift()

◆ setMaterialComponent() [1/2]

void Plot3D::setMaterialComponent	(	GLenum	property,
		double	intensity
	)

This function is for convenience. It sets GL material properties with the equal r,g,b values and a blending alpha with value 1.0

◆ setMaterialComponent() [2/2]

void Plot3D::setMaterialComponent	(	GLenum	property,
		double	r,
		double	g,
		double	b,
		double	a = `1.0`
	)

Sets GL material properties

◆ setMeshColor()

void Plot3D::setMeshColor ( Qwt3D::RGBA rgba )

Sets the mesh color.

◆ setMeshLineWidth()

void Plot3D::setMeshLineWidth ( double val )

Sets the mesh line width.

◆ setOrtho

void Plot3D::setOrtho ( bool val )

slot

Sets up orthogonal or perspective mode and updates widget.

◆ setPlotStyle() [1/2]

Qwt3D::Enrichment * Plot3D::setPlotStyle ( Qwt3D::Enrichment const & obj )

Sets plot style to Qwt3D::USER with an associated enrichment object.

◆ setPlotStyle() [2/2]

void Plot3D::setPlotStyle ( Qwt3D::PLOTSTYLE val )

Sets plot style for the standard plotting types.

◆ setPolygonOffset()

void Plot3D::setPolygonOffset ( double val )

Sets polygon offset.

◆ setRotation

void Plot3D::setRotation	(	double	xVal,
		double	yVal,
		double	zVal
	)

slot

Set the rotation angle of the object. If you look along the respective axis towards ascending values, the rotation is performed in mathematical negative sense

Parameters

xVal	angle in degree to rotate around the X axis
yVal	angle in degree to rotate around the Y axis
zVal	angle in degree to rotate around the Z axis

◆ setScale

void Plot3D::setScale	(	double	xVal,
		double	yVal,
		double	zVal
	)

slot

Set the scale in object (world) coordinates.

Parameters

xVal	scaling for X values
yVal	scaling for Y values
zVal	scaling for Z values

A respective value of 1 represents no scaling;

◆ setShading()

void Plot3D::setShading ( Qwt3D::SHADINGSTYLE val )

Sets shading style.

◆ setShift

void Plot3D::setShift	(	double	xVal,
		double	yVal,
		double	zVal
	)

slot

Set the shift in object (world) coordinates.

Parameters

xVal	shift along (world) X axis
yVal	shift along (world) Y axis
zVal	shift along (world) Z axis

See also: setViewportShift()

◆ setShininess()

void Plot3D::setShininess ( double exponent )

Sets GL shininess

◆ setTitleFont()

void Plot3D::setTitleFont	(	const QString &	family,
		int	pointSize,
		int	weight = `QFont::Normal`,
		bool	italic = `false`
	)

Sets the caption font.

◆ setTitlePosition()

void Plot3D::setTitlePosition	(	double	rely,
		double	relx = `0.5`,
		Qwt3D::ANCHOR	anchor = `Qwt3D::TopCenter`
	)

Sets relative caption position.

◆ setViewportShift

void Plot3D::setViewportShift	(	double	xVal,
		double	yVal
	)

slot

Performs shifting along screen axes. The shift moves points inside a sphere, which encloses the unscaled and unzoomed data by multiples of the spheres diameter

Parameters

xVal	shift along (view) X axis
yVal	shift along (view) Y axis

See also: setShift()

◆ setZoom

void Plot3D::setZoom ( double val )

slot

Set the (zoom in addition to scale).

Parameters

val	zoom value (value == 1 indicates no zooming)

◆ shiftChanged

void Qwt3D::Plot3D::shiftChanged	(	double	xShift,
		double	yShift,
		double	zShift
	)

signal

Signal emitted when the shift is changed.

◆ showColorLegend()

void Plot3D::showColorLegend ( bool show )

Shows or hides the color legend.

◆ updateData()

void Plot3D::updateData ( )

Updates OpenGL data representation .

◆ vieportShiftChanged

void Qwt3D::Plot3D::vieportShiftChanged	(	double	xShift,
		double	yShift
	)

signal

Signal emitted when the viewport shift is changed.

◆ wheelEvent()

void Plot3D::wheelEvent ( QWheelEvent * e )

protected

Standard wheel Function - zoom (wheel only) or z-scale (shift+wheel)

◆ zoomChanged

void Qwt3D::Plot3D::zoomChanged ( double )

signal

Signal emitted when the zoom is changed.

The documentation for this class was generated from the following files:

/home/runner/work/QWT/QWT/src/plot3d/qwt3d_plot.h
/home/runner/work/QWT/QWT/src/plot3d/qwt3d_io.cpp
/home/runner/work/QWT/QWT/src/plot3d/qwt3d_lighting.cpp
/home/runner/work/QWT/QWT/src/plot3d/qwt3d_mousekeyboard.cpp
/home/runner/work/QWT/QWT/src/plot3d/qwt3d_movements.cpp
/home/runner/work/QWT/QWT/src/plot3d/qwt3d_plot.cpp

Public Slots

Signals

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Plot3D()

◆ ~Plot3D()

Member Function Documentation

◆ addEnrichment()

◆ assignKeyboard()

◆ assignMouse()

◆ blowout()

◆ calculateHull()

◆ createCoordinateSystem() [1/2]

◆ createCoordinateSystem() [2/2]

◆ degrade()

◆ disableKeyboard

◆ disableMouse

◆ enableKeyboard

◆ enableMouse

◆ illuminate()

◆ initializeGL()

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ paintGL()

◆ projectionChanged

◆ resizeGL()

◆ rotationChanged

◆ save

◆ savePixmap

◆ saveVector

◆ scaleChanged

◆ setBackgroundColor()

◆ setCoordinateStyle()

◆ setDataColor()

◆ setIsolines()

◆ setKeySpeed()

◆ setLightComponent() [1/2]

◆ setLightComponent() [2/2]

◆ setLightRotation

◆ setLightShift

◆ setMaterialComponent() [1/2]

◆ setMaterialComponent() [2/2]

◆ setMeshColor()

◆ setMeshLineWidth()

◆ setOrtho

◆ setPlotStyle() [1/2]

◆ setPlotStyle() [2/2]

◆ setPolygonOffset()

◆ setRotation

◆ setScale

◆ setShading()

◆ setShift

◆ setShininess()

◆ setTitleFont()

◆ setTitlePosition()

◆ setViewportShift

◆ setZoom

◆ shiftChanged

◆ showColorLegend()

◆ updateData()

◆ vieportShiftChanged

◆ wheelEvent()

◆ zoomChanged
