Base class for spline interpolations with C1 (first order parametric) continuity 更多...

#include <qwt_spline.h>

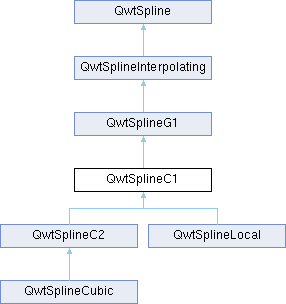

类 QwtSplineC1 继承关系图:

Public 成员函数
	QwtSplineC1 ()
	Constructor

	~QwtSplineC1 () override
	Destructor

virtual QPainterPath	painterPath (const QPolygonF &) const override
	Calculate an interpolated painter path

virtual QVector< QLineF >	bezierControlLines (const QPolygonF &) const override
	Interpolate a curve with Bezier curves

virtual QPolygonF	equidistantPolygon (const QPolygonF &, double distance, bool withNodes) const override
	Find an interpolated polygon with "equidistant" points

virtual QVector< QwtSplinePolynomial >	polynomials (const QPolygonF &) const
	Calculate the interpolating polynomials for a non-parametric spline

virtual QVector< double >	slopes (const QPolygonF &) const =0
	Find the first derivative at the control points

virtual double	slopeAtBeginning (const QPolygonF &, double slopeNext) const
	Calculate the slope at the beginning of the spline

virtual double	slopeAtEnd (const QPolygonF &, double slopeBefore) const
	Calculate the slope at the end of the spline

Public 成员函数继承自 QwtSplineG1
	QwtSplineG1 ()
	Constructor

	~QwtSplineG1 () override
	Destructor

Public 成员函数继承自 QwtSplineInterpolating
	QwtSplineInterpolating ()
	Constructor

	~QwtSplineInterpolating () override
	Destructor

virtual QPolygonF	polygon (const QPolygonF &, double tolerance) const override
	Interpolate a curve by a polygon

Public 成员函数继承自 QwtSpline
	QwtSpline ()
	Constructor

virtual	~QwtSpline ()
	Destructor

void	setParametrization (int type)
	Set parametrization by type

void	setParametrization (QwtSplineParametrization *)
	Set parametrization object

const QwtSplineParametrization *	parametrization () const
	Get parametrization

void	setBoundaryType (BoundaryType)
	Set boundary type

BoundaryType	boundaryType () const
	Get boundary type

void	setBoundaryValue (BoundaryPosition, double value)
	Set boundary value

double	boundaryValue (BoundaryPosition) const
	Get boundary value

void	setBoundaryCondition (BoundaryPosition, int condition)
	Set boundary condition

int	boundaryCondition (BoundaryPosition) const
	Get boundary condition

void	setBoundaryConditions (int condition, double valueBegin=0.0, double valueEnd=0.0)
	Set boundary conditions for both ends

virtual uint	locality () const
	Get locality (number of points used for calculation)

额外继承的成员函数
Public 类型继承自 QwtSpline
enum	BoundaryType { ConditionalBoundaries , PeriodicPolygon , ClosedPolygon }
	Boundary type specifying the spline at its endpoints 更多...

enum	BoundaryPosition { AtBeginning , AtEnd }
	position of a boundary condition 更多...

enum	BoundaryCondition { Clamped1 , Clamped2 , Clamped3 , LinearRunout }
	Boundary condition 更多...

详细描述

Base class for spline interpolations with C1 (first order parametric) continuity

All interpolations with C1 continuity are based on rules for finding the first derivative at some control points.

For non-parametric splines those points are the curve points, while for parametric splines the calculation is done twice using a parameter value t.

参见: QwtSplineParametrization

构造及析构函数说明

◆ QwtSplineC1()

QwtSplineC1::QwtSplineC1 ( )

Constructor

The default setting is a non-closing spline with no parametrization (QwtSplineParametrization::ParameterX).

参见: QwtSpline::setParametrization(), QwtSpline::setBoundaryType()

成员函数说明

◆ bezierControlLines()

QVector< QLineF > QwtSplineC1::bezierControlLines ( const QPolygonF & points ) const

overridevirtual

Interpolate a curve with Bezier curves

Interpolates a polygon piecewise with cubic Bezier curves and returns the 2 control points of each curve as QLineF.

参数

[in] points Control points

返回: Control points of the interpolating Bezier curves

实现了 QwtSplineInterpolating.

被 QwtSplineC2, QwtSplineLocal , 以及 QwtSplineCubic 重载.

◆ equidistantPolygon()

QPolygonF QwtSplineC1::equidistantPolygon	(	const QPolygonF &	points,
		double	distance,
		bool	withNodes
	)		const

overridevirtual

Find an interpolated polygon with "equidistant" points

The implementation is optimized for non-parametric curves (QwtSplineParametrization::ParameterX) and falls back to QwtSpline::equidistantPolygon() otherwise.

参数

[in]	points	Control nodes of the spline
[in]	distance	Distance between 2 points according to the parametrization
[in]	withNodes	When true, also add the control nodes (even if not being equidistant)

返回: Interpolating polygon

参见: QwtSpline::equidistantPolygon()

重载 QwtSplineInterpolating .

被 QwtSplineC2 重载.

◆ painterPath()

QPainterPath QwtSplineC1::painterPath ( const QPolygonF & points ) const

overridevirtual

Calculate an interpolated painter path

Interpolates a polygon piecewise into cubic Bezier curves and returns them as QPainterPath.

The implementation calculates the slopes at the control points and converts them into painter path elements in an additional loop.

参数

[in] points Control points

返回: QPainterPath that can be rendered by QPainter

注解: Derived spline classes might overload painterPath() to avoid the extra loops for converting results into a QPainterPath

重载 QwtSplineInterpolating .

被 QwtSplineC2, QwtSplineCubic , 以及 QwtSplineLocal 重载.

◆ polynomials()

QVector< QwtSplinePolynomial > QwtSplineC1::polynomials ( const QPolygonF & points ) const

virtual

Calculate the interpolating polynomials for a non-parametric spline

C1 spline interpolations are based on finding values for the first derivatives at the control points. The interpolating polynomials can be calculated from the first derivatives using QwtSplinePolynomial::fromSlopes().

The default implementation is a two-pass calculation. In derived classes it might be overloaded by a one-pass implementation.

参数

[in] points Control points

返回: Interpolating polynomials

注解: The x coordinates need to be increasing or decreasing

被 QwtSplineC2, QwtSplineCubic , 以及 QwtSplineLocal 重载.

◆ slopeAtBeginning()

double QwtSplineC1::slopeAtBeginning	(	const QPolygonF &	points,
		double	slopeNext
	)		const

virtual

Calculate the slope at the beginning of the spline

参数

[in]	points	Control points
[in]	slopeNext	Value of the first derivative at the second point

返回: Value of the first derivative at the first point

参见: slopeAtEnd(), QwtSpline::boundaryCondition(), QwtSpline::boundaryValue()

◆ slopeAtEnd()

double QwtSplineC1::slopeAtEnd	(	const QPolygonF &	points,
		double	slopeBefore
	)		const

virtual

Calculate the slope at the end of the spline

参数

[in]	points	Control points
[in]	slopeBefore	Value of the first derivative at the point before the last one

返回: Value of the first derivative at the last point

参见: slopeAtBeginning(), QwtSpline::boundaryCondition(), QwtSpline::boundaryValue()

◆ slopes()

QVector< double > QwtSplineC1::slopes ( const QPolygonF & points ) const

pure virtual

Find the first derivative at the control points

参数

points Control nodes of the spline

返回: Vector with the values of the 2nd derivate at the control points

注解: The x coordinates need to be increasing or decreasing

在 QwtSplineC2, QwtSplineCubic , 以及 QwtSplineLocal 内被实现.

该类的文档由以下文件生成:

/home/runner/work/QWT/QWT/src/plot/qwt_spline.h
/home/runner/work/QWT/QWT/src/plot/qwt_spline.cpp
