An abstract base class for slider widgets with a scale 更多...

#include <qwt_abstract_slider.h>

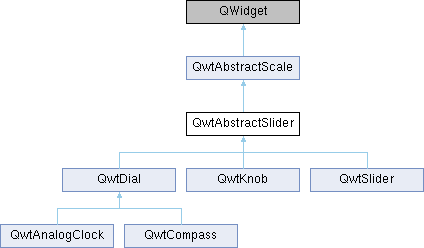

类 QwtAbstractSlider 继承关系图:

类
class	PrivateData

Public 槽
void	setValue (double value)
	Set the slider value (English only)

信号
void	valueChanged (double value)
	Notify a change of value

void	sliderPressed ()
	Signal emitted when the user presses the movable part of the slider

void	sliderReleased ()
	Signal emitted when the user releases the movable part of the slider

void	sliderMoved (double value)
	Signal emitted when the user moves the slider with the mouse

Public 成员函数
	QwtAbstractSlider (QWidget *parent=nullptr)
	Constructor for QwtAbstractSlider (English only)

	~QwtAbstractSlider () override
	Destructor for QwtAbstractSlider (English only)

void	setValid (bool)
	Set whether the slider is valid (English only)

bool	isValid () const
	Return whether the slider is valid (English only)

double	value () const
	Return the current value (English only)

void	setWrapping (bool)
	Set whether wrapping is enabled (English only)

bool	wrapping () const
	Return whether wrapping is enabled (English only)

void	setTotalSteps (uint)
	Set the total number of steps (English only)

uint	totalSteps () const
	Return the total number of steps (English only)

void	setSingleSteps (uint)
	Set the number of single steps (English only)

uint	singleSteps () const
	Return the number of single steps (English only)

void	setPageSteps (uint)
	Set the number of page steps (English only)

uint	pageSteps () const
	Return the number of page steps (English only)

void	setStepAlignment (bool)
	Set whether step alignment is enabled (English only)

bool	stepAlignment () const
	Return whether step alignment is enabled (English only)

void	setTracking (bool)
	Set whether tracking is enabled (English only)

bool	isTracking () const
	Return whether tracking is enabled (English only)

void	setReadOnly (bool)
	Set whether the slider is read-only (English only)

bool	isReadOnly () const
	Return whether the slider is read-only (English only)

void	setInvertedControls (bool)
	Set whether controls are inverted (English only)

bool	invertedControls () const
	Return whether controls are inverted (English only)

Public 成员函数继承自 QwtAbstractScale
	QwtAbstractScale (QWidget *parent=nullptr)
	Constructor for QwtAbstractScale

void	setScale (double lowerBound, double upperBound)
	Specify a scale by interval bounds

void	setScale (const QwtInterval &)
	Specify a scale by interval

void	setScale (const QwtScaleDiv &)
	Specify a scale by scale division

const QwtScaleDiv &	scaleDiv () const
	Return the scale division

void	setLowerBound (double value)
	Set the lower bound of the scale

double	lowerBound () const
	Return the lower bound of the scale

void	setUpperBound (double value)
	Set the upper bound of the scale

double	upperBound () const
	Return the upper bound of the scale

void	setScaleStepSize (double stepSize)
	Set the step size used for calculating scale division

double	scaleStepSize () const
	Return the step size hint

void	setScaleMaxMajor (int ticks)
	Set the maximum number of major tick intervals

int	scaleMaxMinor () const
	Return the maximum number of minor tick intervals

void	setScaleMaxMinor (int ticks)
	Set the maximum number of minor tick intervals

int	scaleMaxMajor () const
	Return the maximum number of major tick intervals

void	setScaleEngine (QwtScaleEngine *)
	Set the scale engine

const QwtScaleEngine *	scaleEngine () const
	Return the scale engine (const version)

QwtScaleEngine *	scaleEngine ()
	Return the scale engine (non-const version)

int	transform (double) const
	Transform a scale value to widget coordinates

double	invTransform (int) const
	Transform a widget coordinate to scale value

bool	isInverted () const
	Check if scale is inverted

double	minimum () const
	Return the minimum boundary

double	maximum () const
	Return the maximum boundary

const QwtScaleMap &	scaleMap () const
	Return the scale map

Protected 成员函数
virtual void	mousePressEvent (QMouseEvent *) override
	Handle mouse press events (English only)

virtual void	mouseReleaseEvent (QMouseEvent *) override
	Handle mouse release events (English only)

virtual void	mouseMoveEvent (QMouseEvent *) override
	Handle mouse move events (English only)

virtual void	keyPressEvent (QKeyEvent *) override
	Handle key press events (English only)

virtual void	wheelEvent (QWheelEvent *) override
	Handle wheel events (English only)

virtual bool	isScrollPosition (const QPoint &pos) const =0

virtual double	scrolledTo (const QPoint &pos) const =0

void	incrementValue (int stepCount)
	Increment the value by a number of steps (English only)

virtual void	scaleChange () override
	Handle scale changes (English only)

virtual void	sliderChange ()
	Handle slider changes (English only)

double	incrementedValue (double value, int stepCount) const
	Calculate incremented value (English only)

Protected 成员函数继承自 QwtAbstractScale
virtual void	changeEvent (QEvent *) override
	Handle change events (English only)

void	rescale (double lowerBound, double upperBound, double stepSize)
	Recalculate scale and update scale draw (English only)

void	setAbstractScaleDraw (QwtAbstractScaleDraw *)
	Set the scale draw object (English only)

const QwtAbstractScaleDraw *	abstractScaleDraw () const
	Return the scale draw (const version) (English only)

QwtAbstractScaleDraw *	abstractScaleDraw ()
	Return the scale draw (non-const version) (English only)

void	updateScaleDraw ()
	Update the scale draw (English only)

属性
double	value

uint	totalSteps

uint	singleSteps

uint	pageSteps

bool	stepAlignment

bool	readOnly

bool	tracking

bool	wrapping

bool	invertedControls

属性继承自 QwtAbstractScale
double	lowerBound

double	upperBound

int	scaleMaxMajor

int	scaleMaxMinor

double	scaleStepSize

详细描述

An abstract base class for slider widgets with a scale

A slider widget displays a value according to a scale. The class is designed as a common super class for widgets like QwtKnob, QwtDial and QwtSlider. When the slider is not readOnly(), its value can be modified by keyboard, mouse and wheel inputs. The range of the slider is divided into a number of steps from which the value increments according to user inputs depend. Only for linear scales the number of steps correspond with a fixed step size.

构造及析构函数说明

◆ QwtAbstractSlider()

QwtAbstractSlider::QwtAbstractSlider ( QWidget * parent = nullptr )

explicit

Constructor for QwtAbstractSlider (English only)

Constructor for QwtAbstractSlider

The scale is initialized to [0.0, 100.0], the number of steps is set to 100 with 1 and 10 as single and page step sizes. Step alignment is enabled. The initial value is invalid.

参数

parent Parent widget

Destructor for QwtAbstractSlider

成员函数说明

◆ incrementedValue()

double QwtAbstractSlider::incrementedValue	(	double	value,
		int	stepCount
	)		const

protected

Calculate incremented value (English only)

Increment a value

参数

value	Value to increment
stepCount	Number of steps

返回: Incremented value

参见: incrementValue(), setTotalSteps()

◆ incrementValue()

void QwtAbstractSlider::incrementValue ( int stepCount )

protected

Increment the value by a number of steps (English only)

Increment the slider

The step size depends on the number of totalSteps()

参数

stepCount Number of steps

参见: setTotalSteps(), incrementedValue()

◆ invertedControls()

bool QwtAbstractSlider::invertedControls ( ) const

Return whether controls are inverted (English only)

Check if controls are inverted

返回: True, when the controls are inverted

参见: setInvertedControls()

◆ isReadOnly()

bool QwtAbstractSlider::isReadOnly ( ) const

Return whether the slider is read-only (English only)

Check if read-only mode is enabled

返回: True if read-only mode is enabled

参见: setReadOnly()

◆ isScrollPosition()

virtual bool QwtAbstractSlider::isScrollPosition ( const QPoint & pos ) const

protectedpure virtual

在 QwtDial, QwtKnob , 以及 QwtSlider 内被实现.

◆ isTracking()

bool QwtAbstractSlider::isTracking ( ) const

Return whether tracking is enabled (English only)

Check if tracking is enabled

返回: True if tracking is enabled

参见: setTracking()

◆ isValid()

bool QwtAbstractSlider::isValid ( ) const

Return whether the slider is valid (English only)

Check if the value is valid

返回: True if the value is invalid

◆ keyPressEvent()

void QwtAbstractSlider::keyPressEvent ( QKeyEvent * event )

overrideprotectedvirtual

Handle key press events (English only)

Handle key press events

QwtAbstractSlider handles the following keys:

Qt::Key_Left: Add/Subtract singleSteps() in direction to lowerBound()
Qt::Key_Right: Add/Subtract singleSteps() in direction to upperBound()
Qt::Key_Down: Subtract singleSteps(), when invertedControls() is false
Qt::Key_Up: Add singleSteps(), when invertedControls() is false
Qt::Key_PageDown: Subtract pageSteps(), when invertedControls() is false
Qt::Key_PageUp: Add pageSteps(), when invertedControls() is false
Qt::Key_Home: Set the value to the minimum()
Qt::Key_End: Set the value to the maximum()
参数

event Key event

参见
isReadOnly(), wheelEvent()

被 QwtCompass 重载.

◆ mouseMoveEvent()

void QwtAbstractSlider::mouseMoveEvent ( QMouseEvent * event )

overrideprotectedvirtual

Handle mouse move events (English only)

Handle mouse move events

参数

event Mouse event

Updates the slider value while scrolling.

参见: mousePressEvent(), mouseReleaseEvent()

◆ mousePressEvent()

void QwtAbstractSlider::mousePressEvent ( QMouseEvent * event )

overrideprotectedvirtual

Handle mouse press events (English only)

Handle mouse press events

参数

event Mouse event

Initiates scrolling if the position is valid.

参见: mouseMoveEvent(), mouseReleaseEvent()

被 QwtSlider 重载.

◆ mouseReleaseEvent()

void QwtAbstractSlider::mouseReleaseEvent ( QMouseEvent * event )

overrideprotectedvirtual

Handle mouse release events (English only)

Handle mouse release events

参数

event Mouse event

Ends scrolling and emits valueChanged() if needed.

参见: mousePressEvent(), mouseMoveEvent()

被 QwtSlider 重载.

◆ pageSteps()

uint QwtAbstractSlider::pageSteps ( ) const

Return the number of page steps (English only)

Return the number of page steps

返回: Number of steps

参见: setPageSteps(), totalSteps(), singleSteps()

◆ scaleChange()

void QwtAbstractSlider::scaleChange ( )

overrideprotectedvirtual

Handle scale changes (English only)

Update the slider according to modifications of the scale

Updates the current value to stay within the new scale range and emits valueChanged() if the value was adjusted.

参见: sliderChange(), valueChanged()

重载 QwtAbstractScale .

被 QwtDial , 以及 QwtSlider 重载.

◆ scrolledTo()

virtual double QwtAbstractSlider::scrolledTo ( const QPoint & pos ) const

protectedpure virtual

在 QwtDial, QwtKnob , 以及 QwtSlider 内被实现.

◆ setInvertedControls()

void QwtAbstractSlider::setInvertedControls ( bool on )

Set whether controls are inverted (English only)

Invert wheel and key events

Usually scrolling the mouse wheel "up" and using keys like page up will increase the slider's value towards its maximum. When invertedControls() is enabled the value is scrolled towards its minimum. Inverting the controls might be f.e. useful for a vertical slider with an inverted scale (decreasing from top to bottom).

参数

on	Invert controls when true

参见: invertedControls(), keyEvent(), wheelEvent()

◆ setPageSteps()

void QwtAbstractSlider::setPageSteps ( uint stepCount )

Set the number of page steps (English only)

Set the number of page steps

The range of the slider is divided into a number of steps from which the value increments according to user inputs depend.

参数

[in] stepCount Number of steps

参见: pageSteps(), setTotalSteps(), setSingleSteps()

◆ setReadOnly()

void QwtAbstractSlider::setReadOnly ( bool on )

Set whether the slider is read-only (English only)

Enable or disable read-only mode

In read-only mode the slider can't be controlled by mouse or keyboard.

参数

on	Enables read-only mode if true

参见: isReadOnly()

警告: The focus policy is set to Qt::StrongFocus or Qt::NoFocus

◆ setSingleSteps()

void QwtAbstractSlider::setSingleSteps ( uint stepCount )

Set the number of single steps (English only)

Set the number of steps for a single increment

The range of the slider is divided into a number of steps from which the value increments according to user inputs depend.

参数

[in] stepCount Number of steps

参见: singleSteps(), setTotalSteps(), setPageSteps()

◆ setStepAlignment()

void QwtAbstractSlider::setStepAlignment ( bool on )

Set whether step alignment is enabled (English only)

Enable step alignment

When step alignment is enabled values resulting from slider movements are aligned to the step size.

参数

on	Enable step alignment when true

参见: stepAlignment()

◆ setTotalSteps()

void QwtAbstractSlider::setTotalSteps ( uint stepCount )

Set the total number of steps (English only)

Set the number of steps

The range of the slider is divided into a number of steps from which the value increments according to user inputs depend. The default setting is 100.

参数

[in] stepCount Number of steps

参见: totalSteps(), setSingleSteps(), setPageSteps()

◆ setTracking()

void QwtAbstractSlider::setTracking ( bool on )

Set whether tracking is enabled (English only)

Enable or disable tracking

If tracking is enabled, the slider emits the valueChanged() signal while the movable part of the slider is being dragged. If tracking is disabled, the slider emits the valueChanged() signal only when the user releases the slider. Tracking is enabled by default.

参数

on	True to enable tracking, false to disable

参见: isTracking(), sliderMoved()

◆ setValid()

void QwtAbstractSlider::setValid ( bool on )

Set whether the slider is valid (English only)

Set the value to be valid or invalid

参数

on	When true, the value is invalidated

参见: setValue()

◆ setValue

void QwtAbstractSlider::setValue ( double value )

slot

Set the slider value (English only)

Set the slider to the specified value

参数

value New value

参见: setValid(), sliderChange(), valueChanged()

◆ setWrapping()

void QwtAbstractSlider::setWrapping ( bool on )

Set whether wrapping is enabled (English only)

Enable or disable wrapping

If wrapping is true stepping up from upperBound() value will take you to the minimum() value and vice versa.

参数

on	Enable wrapping when true

参见: wrapping()

◆ singleSteps()

uint QwtAbstractSlider::singleSteps ( ) const

Return the number of single steps (English only)

Return the number of single steps

返回: Number of steps

参见: setSingleSteps(), totalSteps(), pageSteps()

◆ sliderChange()

void QwtAbstractSlider::sliderChange ( )

protectedvirtual

Handle slider changes (English only)

Handle slider changes

Called when the slider needs to update its appearance. The default implementation calls update().

参见: setValue(), incrementValue()

被 QwtDial 重载.

◆ sliderMoved

void QwtAbstractSlider::sliderMoved ( double value )

signal

Signal emitted when the user moves the slider with the mouse

参数

value New value

参见: valueChanged()

◆ stepAlignment()

bool QwtAbstractSlider::stepAlignment ( ) const

Return whether step alignment is enabled (English only)

Check if step alignment is enabled

返回: True, when step alignment is enabled

参见: setStepAlignment()

◆ totalSteps()

uint QwtAbstractSlider::totalSteps ( ) const

Return the total number of steps (English only)

Return the number of steps

返回: Number of steps

参见: setTotalSteps(), singleSteps(), pageSteps()

◆ value()

double QwtAbstractSlider::value ( ) const

Return the current value (English only)

Return the current value

返回: Current slider value

参见: setValue()

◆ valueChanged

void QwtAbstractSlider::valueChanged ( double value )

signal

Notify a change of value

When tracking is enabled (default setting), this signal will be emitted every time the value changes.

参数

value New value

参见: setTracking(), sliderMoved()

◆ wheelEvent()

void QwtAbstractSlider::wheelEvent ( QWheelEvent * event )

overrideprotectedvirtual

Handle wheel events (English only)

Handle wheel events

In/decreases the value by a number of steps. The direction depends on the invertedControls() property. When the control or shift modifier is pressed the wheel delta (divided by 120) is mapped to an increment according to pageSteps(). Otherwise it is mapped to singleSteps().

参数

event Wheel event

参见: keyPressEvent()

被 QwtDial 重载.

◆ wrapping()

bool QwtAbstractSlider::wrapping ( ) const

Return whether wrapping is enabled (English only)

Check if wrapping is enabled

返回: True, when wrapping is set

参见: setWrapping()

该类的文档由以下文件生成:

/home/runner/work/QWT/QWT/src/plot/qwt_abstract_slider.h
/home/runner/work/QWT/QWT/src/plot/qwt_abstract_slider.cpp

类

Public 槽

信号

Public 成员函数

Protected 成员函数

属性

详细描述

构造及析构函数说明

◆ QwtAbstractSlider()

成员函数说明

◆ incrementedValue()

◆ incrementValue()

◆ invertedControls()

◆ isReadOnly()

◆ isScrollPosition()

◆ isTracking()

◆ isValid()

◆ keyPressEvent()

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ pageSteps()

◆ scaleChange()

◆ scrolledTo()

◆ setInvertedControls()

◆ setPageSteps()

◆ setReadOnly()

◆ setSingleSteps()

◆ setStepAlignment()

◆ setTotalSteps()

◆ setTracking()

◆ setValid()

◆ setValue

◆ setWrapping()

◆ singleSteps()

◆ sliderChange()

◆ sliderMoved

◆ stepAlignment()

◆ totalSteps()

◆ value()

◆ valueChanged

◆ wheelEvent()

◆ wrapping()
